Jack Rabbit

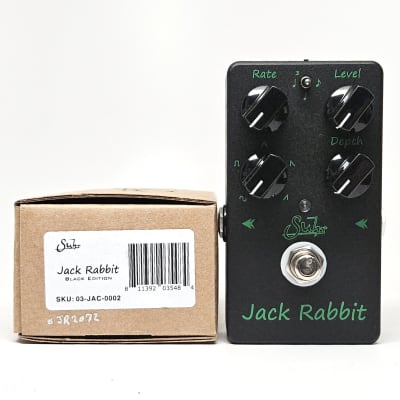

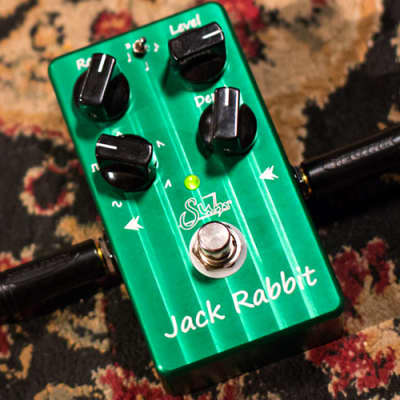

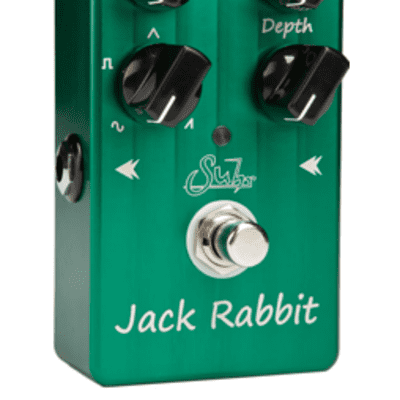

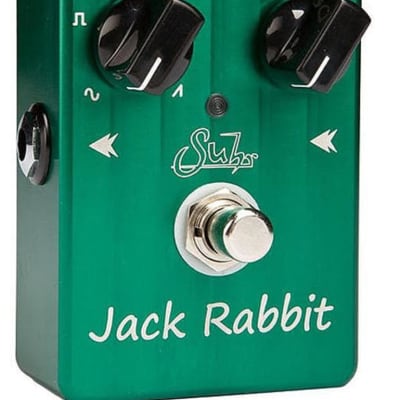

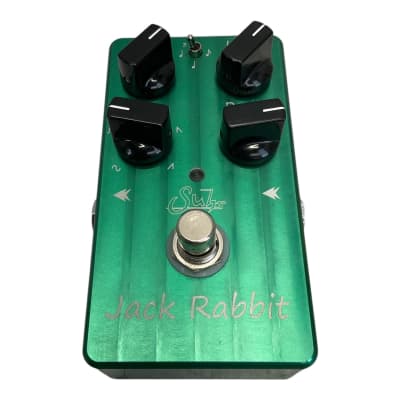

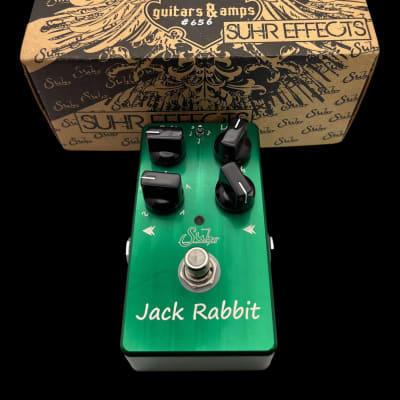

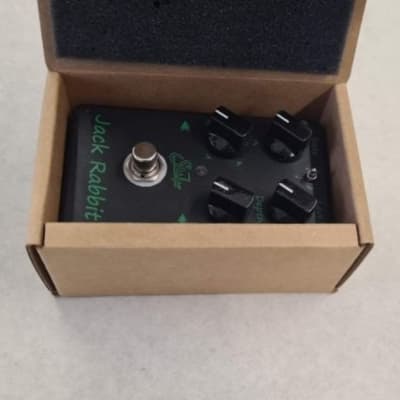

The Suhr Jack Rabbit Tremolo pedal is a high-quality analog pedal designed to deliver a wide variety of tremolo effects, from warm wobble to more extreme variations. It offers simple control over tempo through tap and strum tempo modes, with a modulation rate spanning from 1Hz to 20Hz and utilizing a tempo subdivision switch. The pedal is housed in a sturdy aluminum enclosure for maximum protection and can be remote controlled via the FX Link jack.

Key Specifications:
- Input Impedance: 1M ohm
- Output Impedance: 600 ohm
- Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
- Operating Voltage: 5V to 18V (nominal 9V)
- Maximum Voltage: 20Vdc
- Reverse Battery Protection: Yes
- Over Voltage Protection: Yes
- Current Consumption: < 20mA
- Estimated Battery Life: 25 – 50 hours continuous use
- Dimensions: 2.50” Width x 4.50” Depth x 1.25” Height
- Weight: 0.75 pound
- FxLink Connector: 1/8” stereo
- FxLink max Voltage: 3.3Vdc
- Shield - Tip: Activate on/off
- Shield - Ring: External Tap
- ROHS Compliant: Yes
- Agency Approvals: N/A

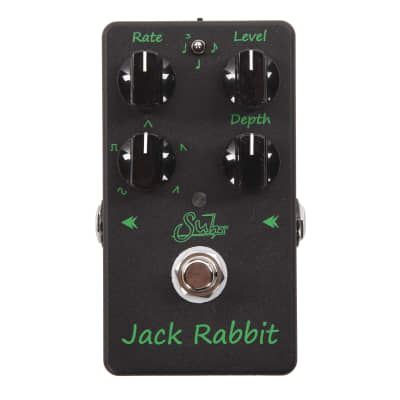

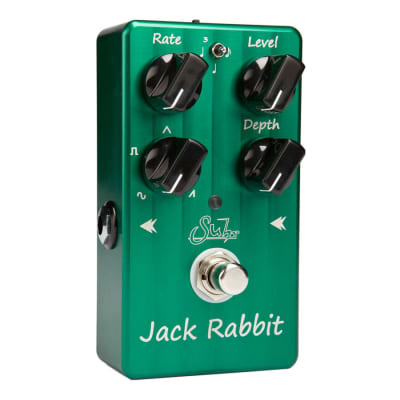

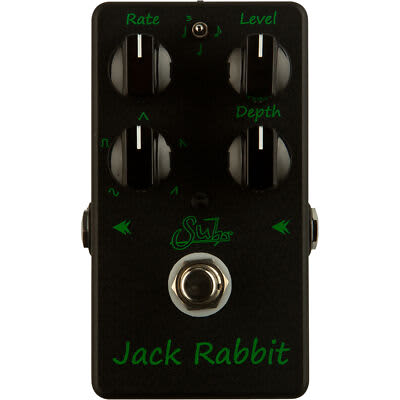

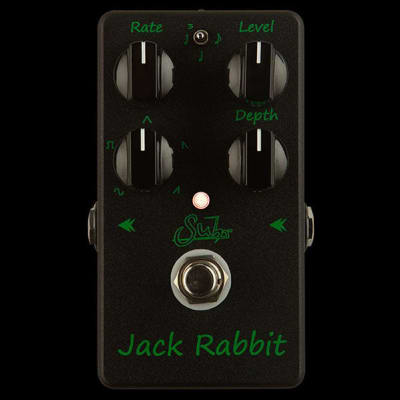

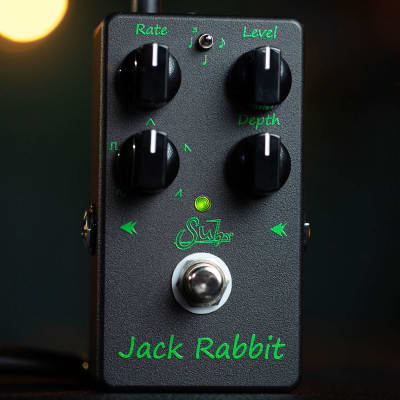

The pedal features quarter note, eighth note, and quarter note triplet subdivisions, along with controls for Rate, Level, Waveform, and Depth. The Rate control adjusts the speed of the tremolo effect, while the Level control manages the output level of the pedal. The Depth control modulates the depth of the tremolo effect, and the Waveform selector allows users to choose from modulation waveforms including Sine, Square, Triangle, Reverse Ramp, and Ramp.

The Jack Rabbit Tremolo pedal is True Bypass and can be powered from 9-18Vdc, drawing low current for extended battery life. It is protected from both over voltage and reverse voltage, ensuring reliable performance and durability.

Additionally, the pedal offers exclusive features such as True Bypass via a relay, FX Link for remote control, and a battery monitor to alert users of low battery voltage. The Suhr Jack Rabbit Tremolo pedal comes with a comprehensive warranty covering defects in workmanship and electronic components.
