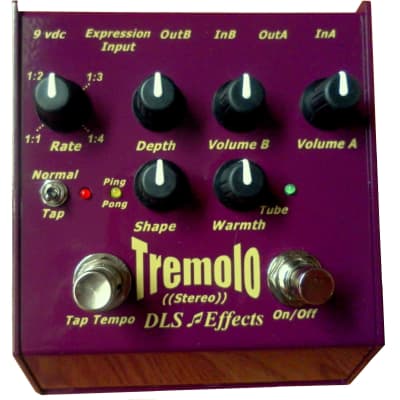

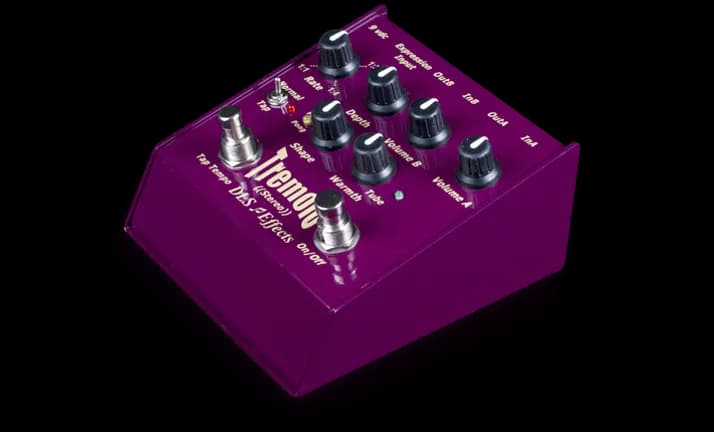

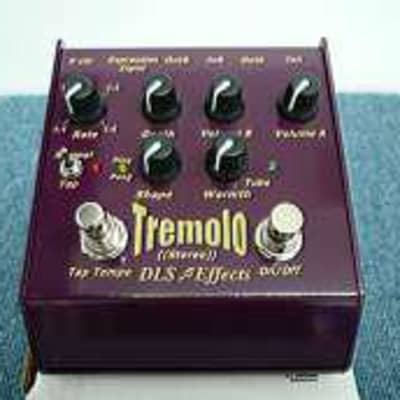

TR1 Tremolo

The DLS Effects TR1 Tremolo is a pure analog, stereo tap tremolo pedal with various features and functionality. Here are the technical specifications and features:

- Two different sounding analog optical components utilize a Warmth pot to dial in vintage tube-sounding tremolo to more aggressive tremolo, or any blend in between.
- A Shape pot transforms the tremolo wave shape and duty cycle for a multitude of flavors like vintage rhythmic tremolo, slicing tremolo, playing backward sound, and more.
- The speed of the tremolo can be controlled using the Rate Pot, Tap Tempo, or via an External Expression pedal. Tap Tempo can be multiplied by 1, 2, 3, or 4 beats per tap, and is stored in memory.
- Two independent in/out channels can be used in Mono or Stereo, including a Ping Pong feature that pans from amp to amp. Channel-A in/out utilizes True Bypass switching, while Channel-B in/out utilizes a buffered output.
- The unit measures 4.3" wide by 4.7" deep and runs from 9vdc (any polarity) and is charge pumped near 15vdc to achieve ultimate headroom and keep the instrument sounding warm, clear, and free from distortion.

These specifications and features make the DLS Effects TR1 Tremolo a versatile and high-quality pedal for achieving a wide range of tremolo effects.
