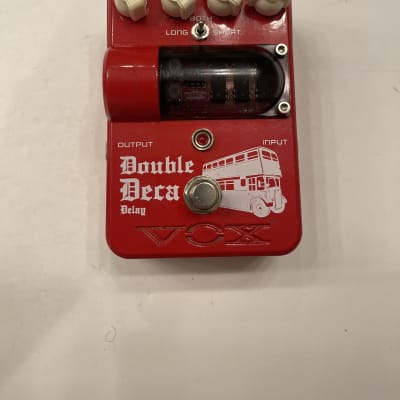

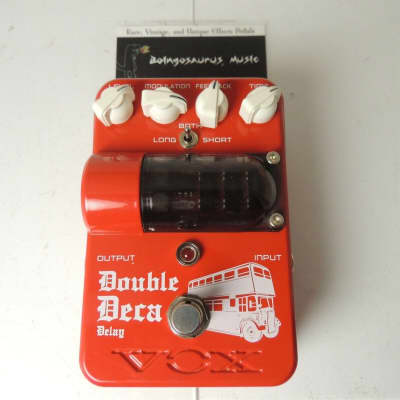

Tone Garage Double Deca Delay Pedal

The VOX Tone Garage Double Deca Delay pedal features a classic analog delay sound achieved through the use of the famous 3205 BBD chip. It offers three delay modes: "short", "both" (short/long), and "long". The "short" mode utilizes one BBD chip, providing a delay time of up to 300 ms with a clear delay sound and minimal decline in audio quality. The "long" mode utilizes all three BBD chips, allowing for a delay time of up to 900 ms, resulting in warm- sounding delay trails. The "both" mode mixes the short and long delays, providing an ambient tonal character.

The pedal is designed with a multi-purpose functionality that allows users to use either one or all three of the BBD chips. Additionally, it features an independent modulation knob for adjusting the chorus effect. When modulation is applied in the "both" mode, it produces a sound akin to a combination of delay, reverb, and chorus.

Technical Specifications:
- Input Impedance: 600k ohm
- Output Impedance: 2.2k ohm
- Connections: INPUT jack (guitar input), OUTPUT jack (line output)

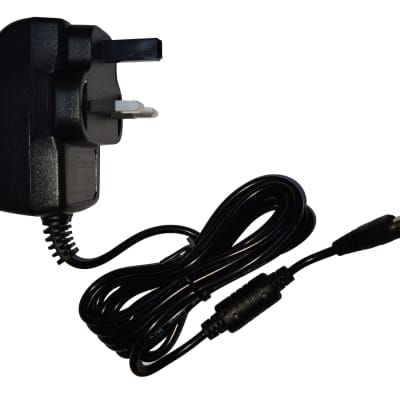

- Power: AA battery x 6 / AC adapter / DC 9V (Option)
- Consumption Current: 36mA
- Battery Life: Approximately 80 hours
- Dimensions (W x D x H): 87 x 132 x 63 mm / 3.43 x 5.20 x 2.48 inches
- Weight: 420 g / 14.81 oz (not including battery)
