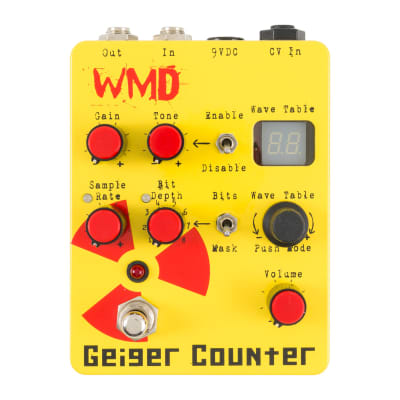

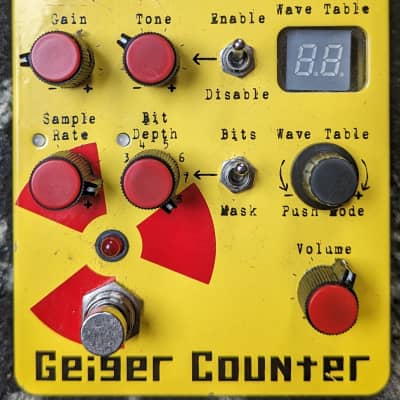

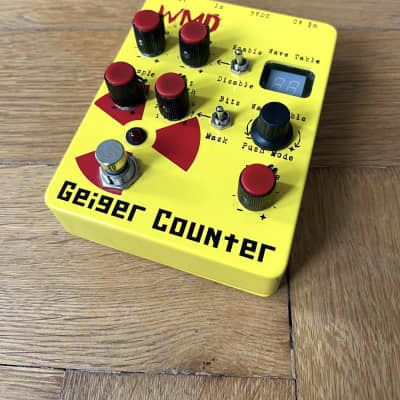

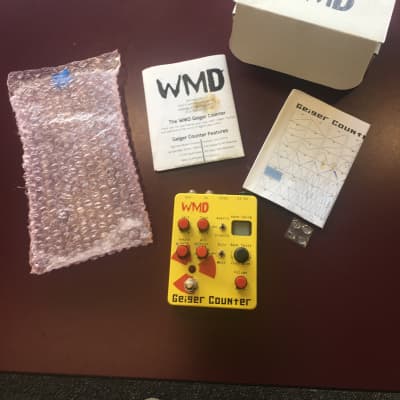

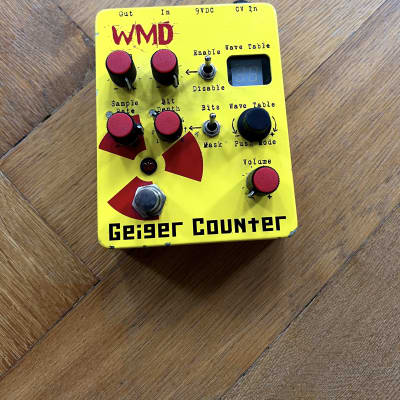

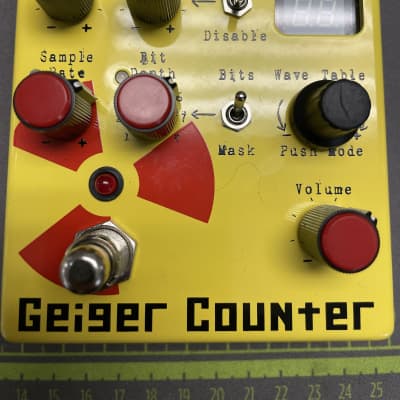

Geiger Counter Digital Destruction

The Geiger Counter Digital Destruction by WMD is a versatile guitar pedal designed for digital distortion and destruction. It offers a wide range of features and capabilities for musicians and sound enthusiasts. Here are the technical specifications and details:

- Sample Rate: Ranges from 260Hz to 58kHz
- Wave Table Modulator: 252 wave tables available
- Bit Depth: Adjustable from 1 to 8 bits with Mask mode
- Power: 9VDC Center Negative (BOSS Standard) with a 150mA draw
- Dimensions: 5.8” x 4.75” x 2.5”
- Input Impedance: 380k
- Output Impedance: 1k
- MIDI Standard Input: Channel (1-8) internally selectable
- CV Inputs: 0-5V with 50k Impedance and TS connection
- Expression: 10k-100k linear with TRS connection
- Upgradable via USB
- Relay True Bypass
- Additional Features: 256 new wavetables, wavetable "Morphing," 16 foot switchable and MIDI switchable presets, proprietary VST for control via computer (VST no longer supported), easy to save and duplicate presets, full MIDI control over all parameters, end of chain low pass filter

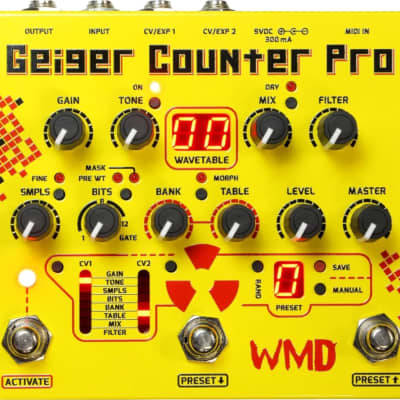

The Geiger Counter Pro edition offers even more features, including direct input to bypass the gain and tone circuits, CV control over every parameter, and being fully DC coupled to accept audio and CV signals. It also features a slow LFO input for experimentation.

The pedal is designed to provide a wide range of digital distortion effects, allowing users to manipulate the sample rate, bit depth, wave tables, and other parameters to achieve unique and diverse sounds. The Geiger Counter Digital Destruction is suitable for guitarists, electronic musicians, and sound designers seeking to explore extreme and experimental sonic territories.
