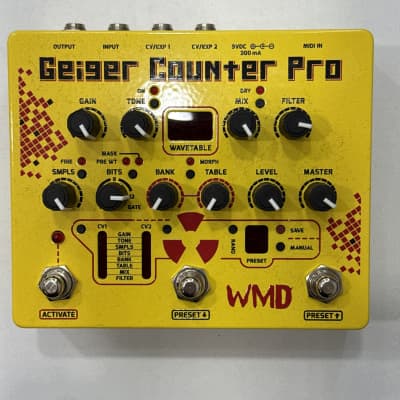

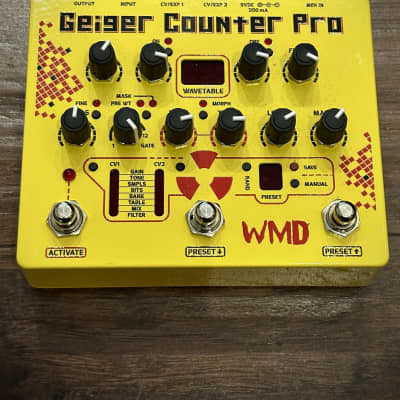

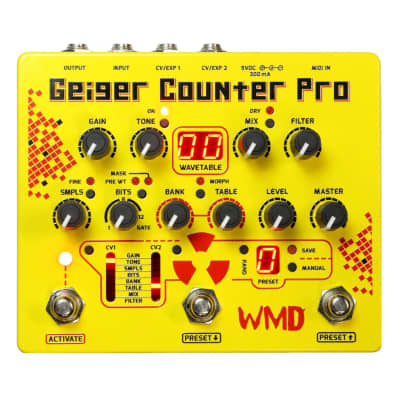

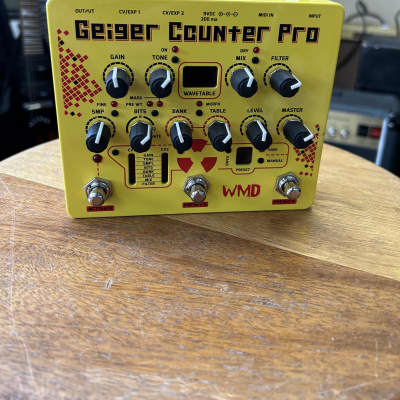

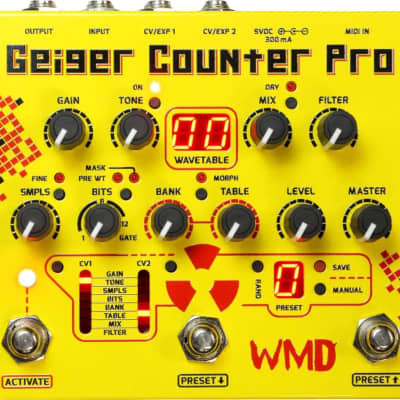

Geiger Counter Pro

The Geiger Counter Pro by WMD is a powerful pedal that offers a wide range of features and capabilities. Here are the technical specifications and details for the Geiger Counter Pro:

- 256 new wavetables, totaling 512 wavetables
- Wavetable "Morphing" feature
- 16 foot switchable and MIDI switchable presets
- Proprietary VST for control via computer
- Easy to save and duplicate presets
- Full MIDI control over all parameters
- 2 assignable CV inputs
- Dry/Wet Mix
- End of chain Low Pass Filter
- Powered by a standard "boss" style 9V supply
- Power: 9VDC Center Negative (BOSS Standard) 150mA draw
- Input Impedance: 380k
- Output Impedance: 1k
- MIDI standard input. Channel (1-8) internally selectable
- CV Inputs: 0-5V. 50k Impedance. TS connection
- Expression: 10k-100k linear. TRS connection
- Upgradable via USB
- Relay True Bypass
- Dimensions: 5.8” x 4.75” x 2.5”

The Geiger Counter Pro also features a GAIN control, TONE control, MIX circuit, ACTIVATE function, dual CV/EXP (control voltage and expression) matrix, Wavetable control, presets functionality, FILTER with anti-aliasing low-pass feature, LEVEL control, MASTER volume control, SAMPLES knob for sample rate control, BITS control for bit depth adjustment, and MIDI implementation.

Additionally, the Geiger Counter Pro offers a VST plugin for DAW integration and preset management. The pedal can be synchronized with the VST plugin, and it supports factory reset and low power mode. The Geiger Counter Pro is designed to inspire creativity and offers extensive control over its features for creating unique and innovative sounds.
