Octamizer

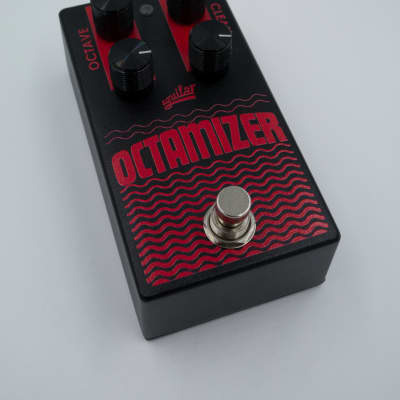

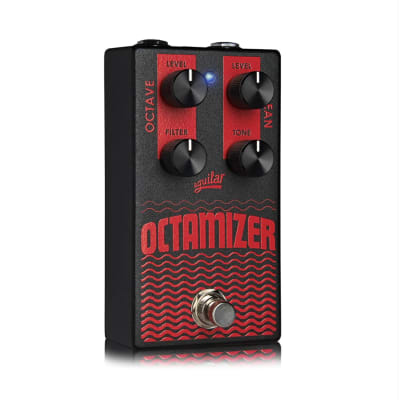

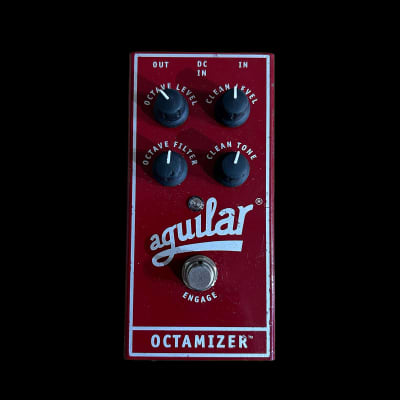

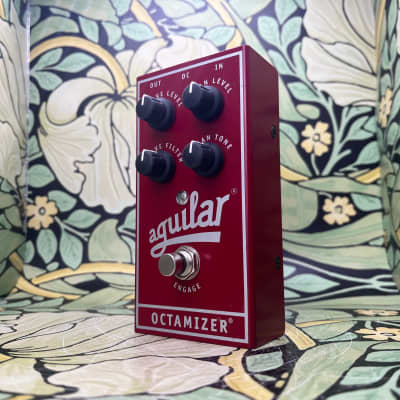

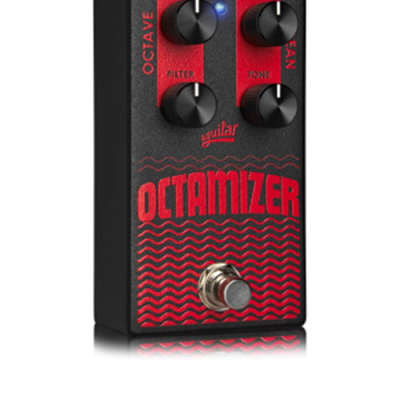

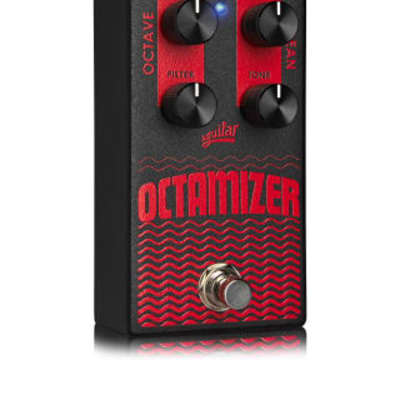

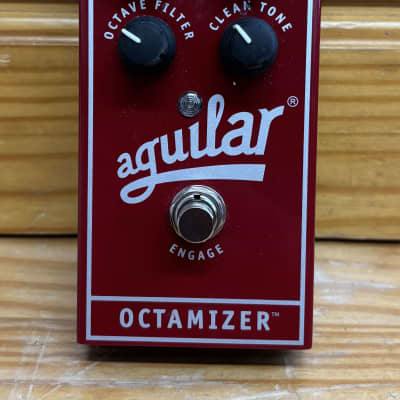

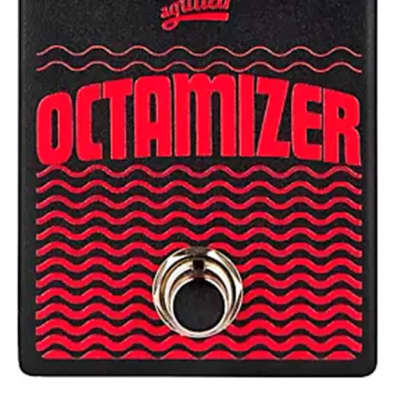

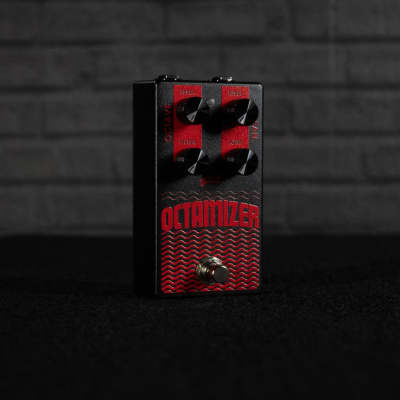

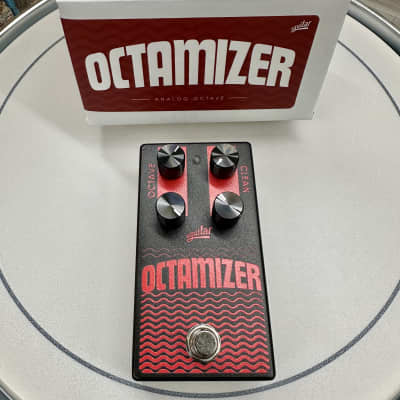

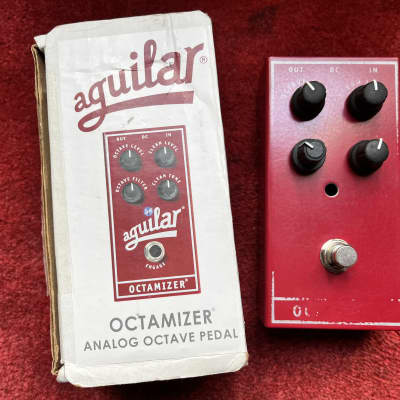

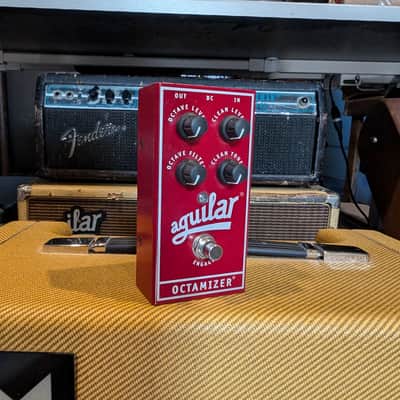

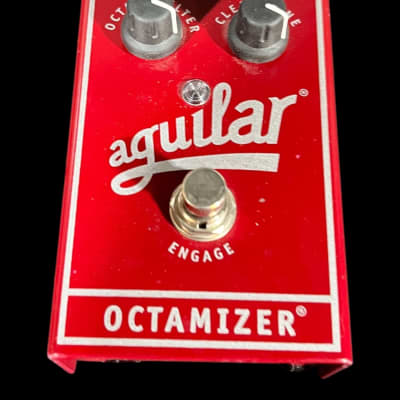

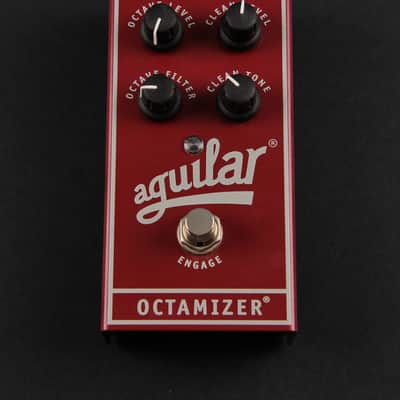

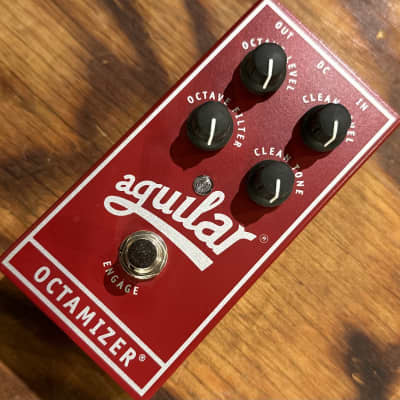

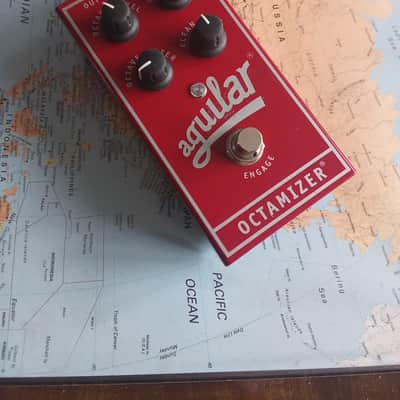

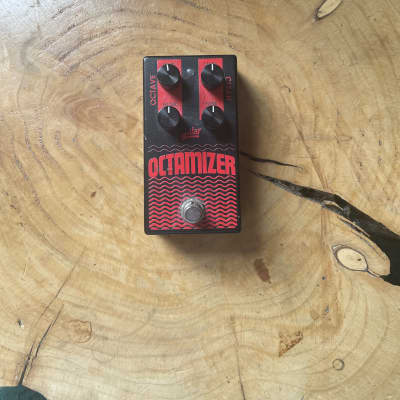

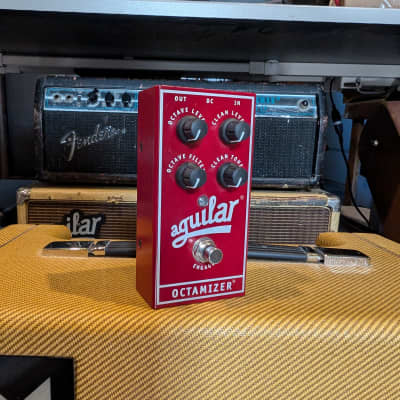

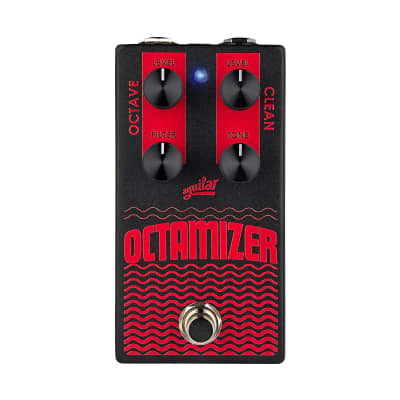

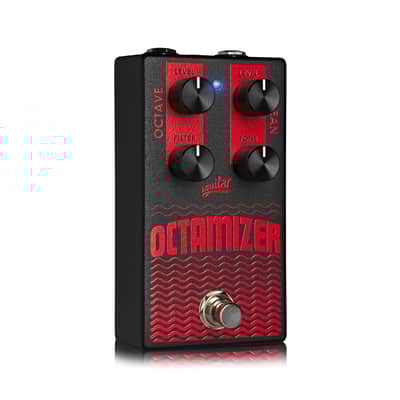

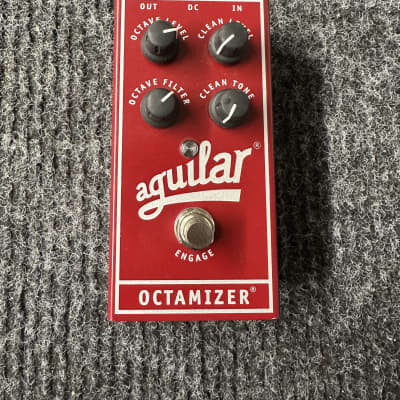

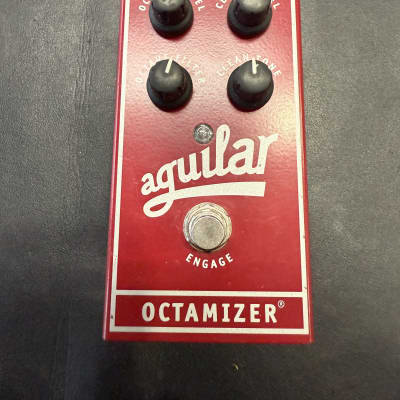

The Octamizer by Aguilar is an analog octave pedal designed to create a wide range of musical sounds an octave below the original note. It features independent volume controls for both the Clean and Octave sounds, allowing for easy blending. The Clean Tone control is a Full Spectrum Tilt EQ, enabling the boosting of treble while cutting bass or boosting bass while cutting treble. The Octave Filter control is a sweepable multi-pole low-pass filter that shapes the octave sound from smooth and deep to edgy and aggressive. The pedal also includes a proprietary detector circuit for superior tracking and heavy- duty steel construction. It operates on a 9-volt battery or optional power supply.

Technical Specifications:
- Current consumption: 6mA
- Signal to noise ratio: > 100 dBu 'A' weighted
- Input impedance: 1MΩ (Effect On)
- Output impedance: < 1 K
- Octave filter: 3-pole LPF 80 Hz – 800Hz
- Clean tone: Wide band tilt EQ +/- 20 dB
- External DC Power: 9-10 VDC center terminal negative

The Octamizer is covered under a limited warranty against defects in materials and workmanship for a period of 3 years. For warranty service, users must retain their sales receipt and obtain a return authorization number from Aguilar before sending the unit for repair.
