P1

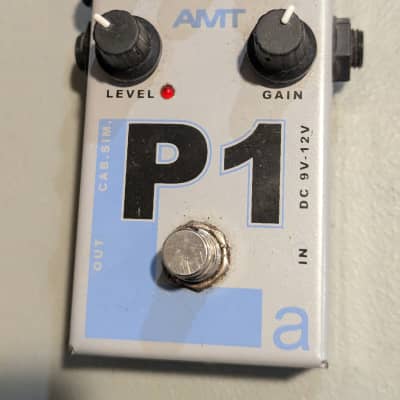

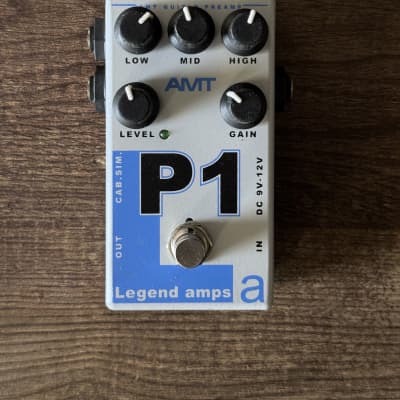

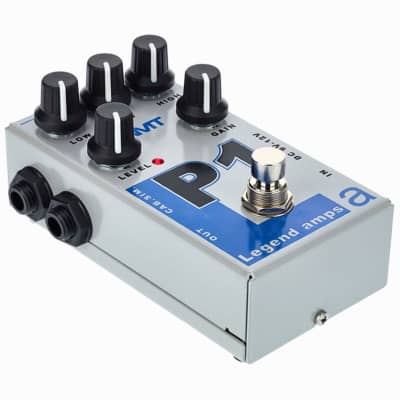

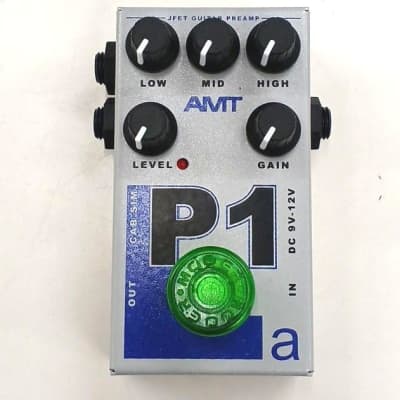

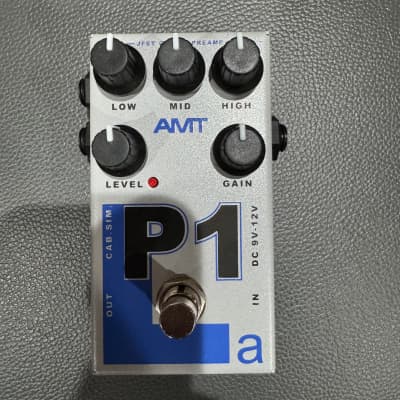

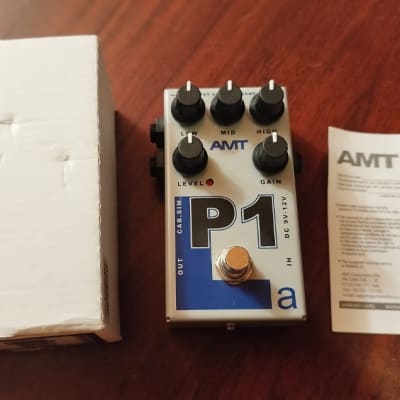

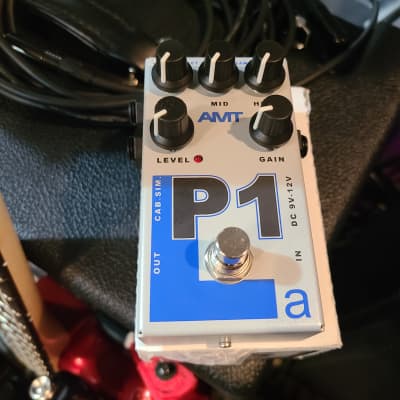

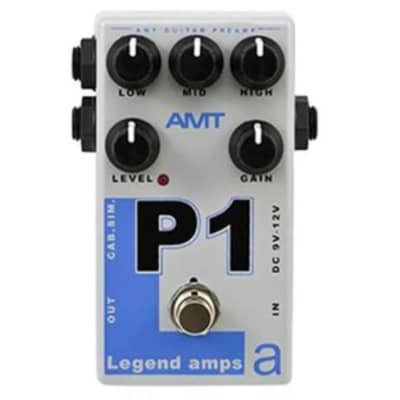

The AMT Electronics P1 is a JFET guitar preamp designed to emulate the renowned Peavey 5150 amplifier. It offers a rich and full tone with tube-like rock distortion. Here are the technical specifications and features:

Specifications:
- Input Impedance: 1.0 MOhm
- Nominal Sensitivity: -20dB
- Output Impedance: 10 kOhm
- Output Signal Level: +10dB
- CAB.SIM. Output Impedance: 10 kOhm
- CAB.SIM. Output Signal Level: -10dB
- Power Supply: 6F22 battery or DC 9V/12V
- Current Consumption: Approx. 6.0mA
- Dimensions (W x H x D): 111 x 58 x 73 mm
- Net Weight (without battery): 0.23 kg

Features:
- Provides excellent dynamics, nuances, and characteristics similar to tube- driven amplifiers
- Tube-like range of volume control for great sound density, playability, and power
- TRUE BYPASS circuitry for no loss of guitar signal when bypassed
- High level of output signal (+10dB) corresponding to tube preamp output levels
- Controls include LEVEL, GAIN, LOW, MID, HIGH
- Two signal outputs: DIRECT AMPLIFIER OUT and CAB SIMULATION OUT
- Emulates the monstrous density, aggression, and huge gain of the Peavey 5150 amplifier

It is recommended to use a 6F22 battery or a quality adapter such as AC/DC Adapter SA09DC-9V 1.11A or AC/DC Adapter SA12DC-12V 1.25A.
