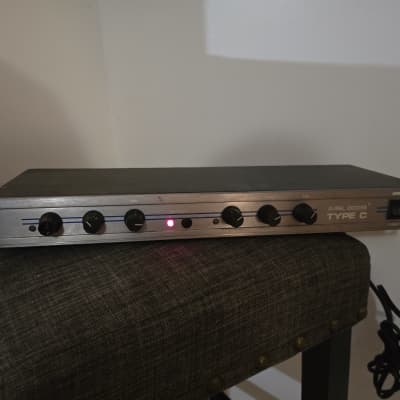

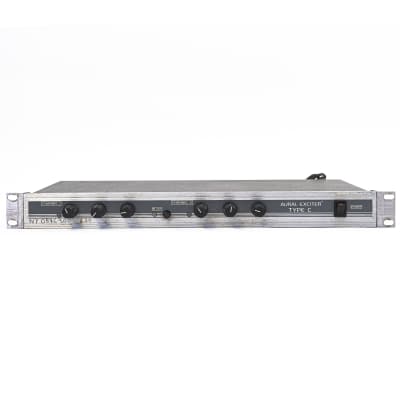

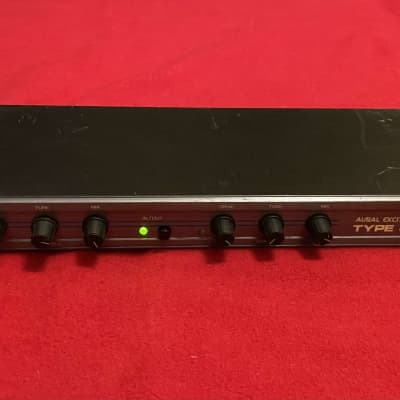

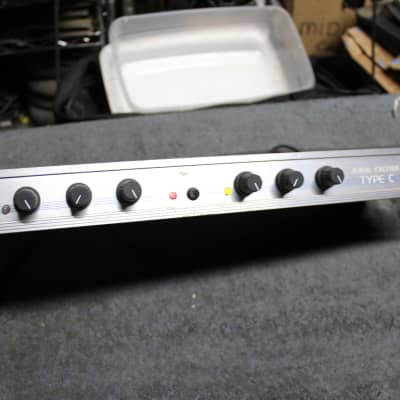

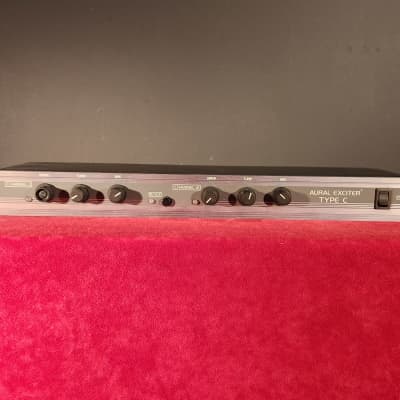

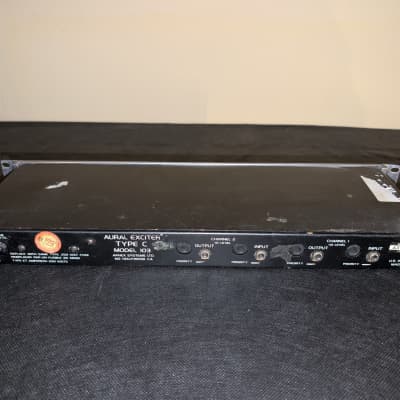

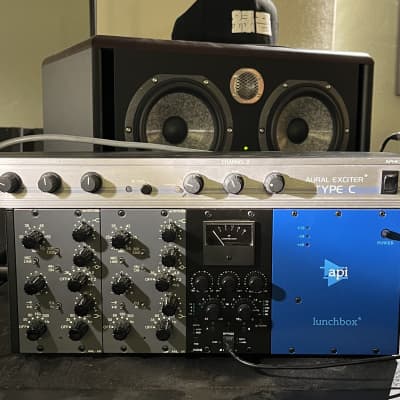

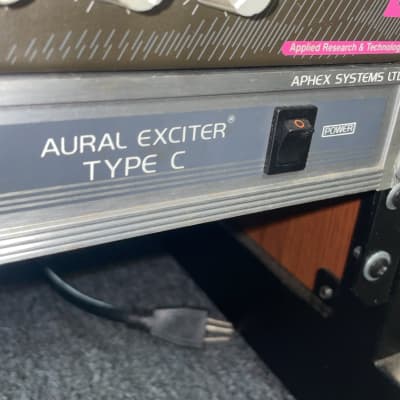

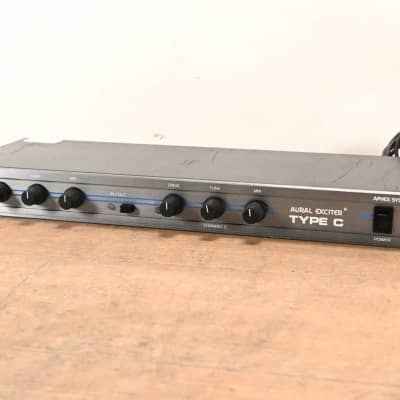

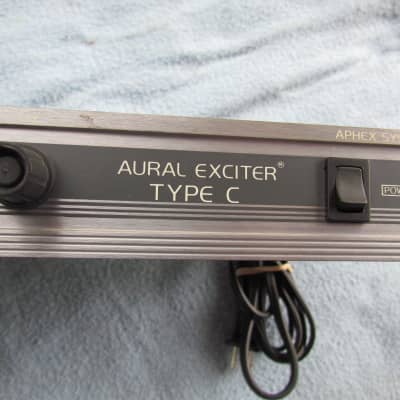

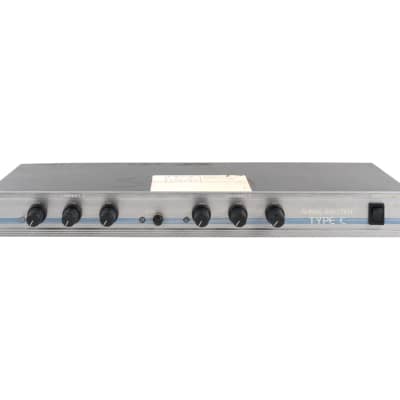

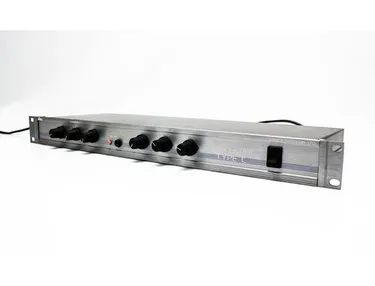

Aural Exciter Type C

The Aural Exciter Type C by Aphex is a professional audio enhancement device that has been widely used in recording studios, broadcast facilities, live sound setups, and various other audio applications. Here are the technical specifications and features of the Aural Exciter Type C:

Technical Specifications:
- Frequency Response: 10Hz - 38 kHz (± 0.5dB)
- Dynamic Range: 120 dB
- Hum and Noise (unweighted 22Hz-22kHz): -93 dBu
- Crosstalk (10 Hz - 22kHz): -79 dB
- THD (10 Hz - 22kHz at max. output): 0.0003%
- IMD (10 Hz - 22kHz at max. output): 0.0007%
- Input Impedance:
- Balanced: 40k ohms
- Unbalanced: 20k ohms
- Output Impedance:
- Balanced: 112 ohms
- Unbalanced: 56 ohms
- Maximum Level: +27 dBu
- Power Requirements: 90-250 VAC 50-60 Hz 12W
- Dimensions: 19"W x 1.75"H x 8.25" D 1 Rack U (482.6mm x 44.5mm x 209.6mm)
- Net Weight: 6 lbs (2.73 kg)
- Shipping Weight: 9 lbs (4.1 kg)

Features:

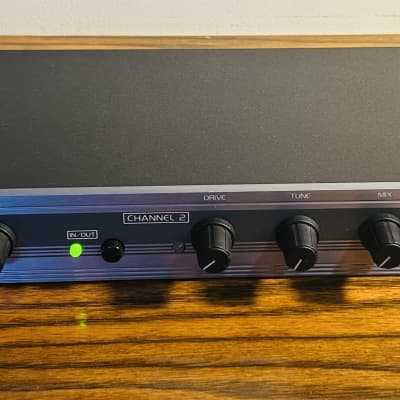

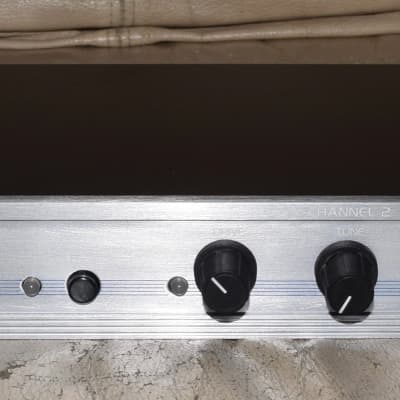

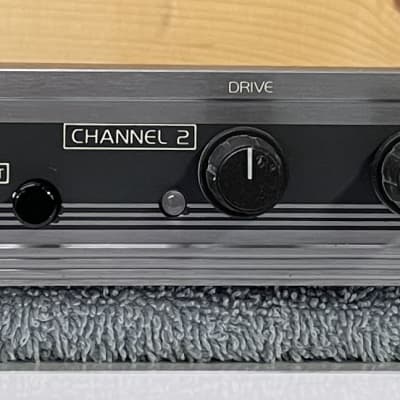

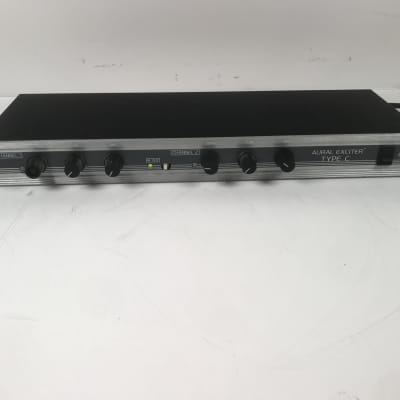

- The Aural Exciter Type C features two independent channels with Tune, Harmonics, and Mix controls, allowing users to focus on select frequencies similar to an EQ.
- The patented technology of the Aural Exciter brings out desired frequencies without adding gain, resulting in more balanced and articulate audio.

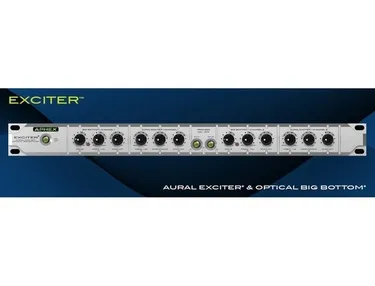

- The Optical Big Bottom feature adds deep, powerful low-frequency punch without unwanted level boost, extending low-frequency power and spectrum without the build-up or driver-damaging tendencies of bass EQ.
- The Aural Exciter is suitable for enhancing individual sounds, entire mixes, vocals, spoken dialog, instruments, and compressed audio files.
- It is widely used in recording, mixdown, post-production, broadcasting, live sound, installed sound, and DJ applications.

The Aural Exciter Type C is designed to improve and enhance sonic quality more naturally than with equalization, bringing out detail, clarity, and imaging that elevates the sound without adding level.
