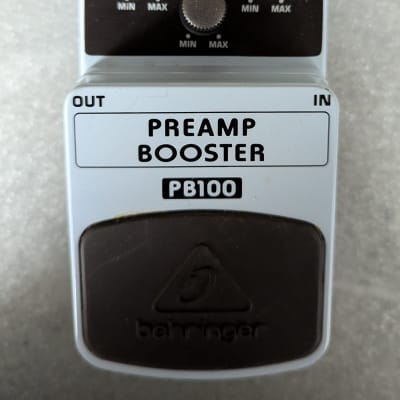

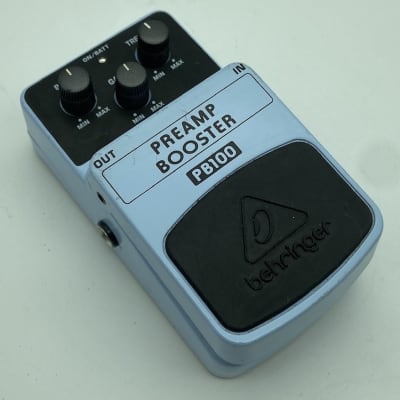

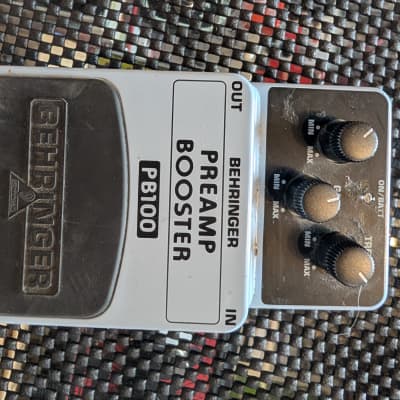

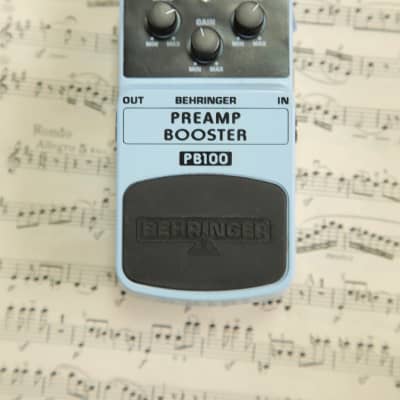

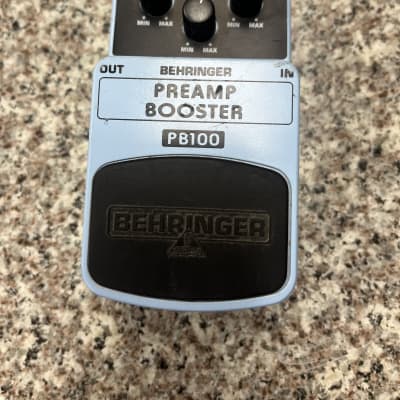

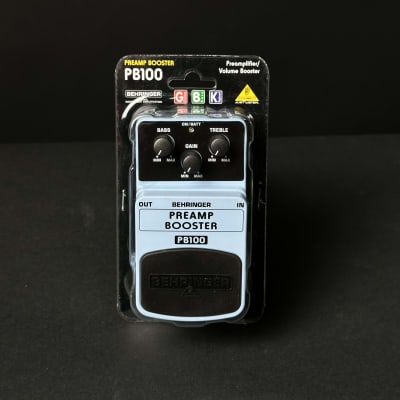

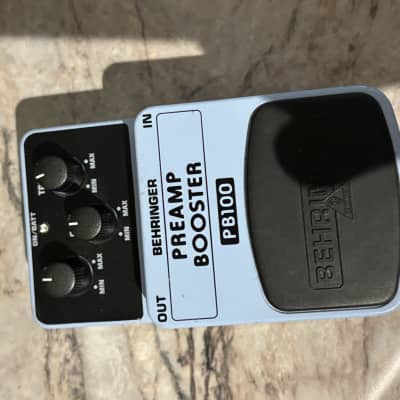

PB100 Preamp Booster

The Behringer PB100 Preamp Booster is a high-quality effects pedal designed to boost the volume and shape the sound of any instrument. It features adjustable Bass, Treble, and Gain controls, allowing users to adjust the low-frequency and high-frequency ranges of the signal, as well as the amount of preamplification. The pedal also includes an ON/BATT LED that serves as a battery level indicator and illuminates when the effect is activated. The footswitch is used to activate/deactivate the effect, and the pedal is equipped with 1/4" TS IN and OUT connectors for instrument cable and amp connection. The PB100 can be powered by a 9V power supply or a 9V battery.

Technical Specifications:
- Input Connector: 1/4" TS
- Input Impedance: 500 kΩ
- Output Connector: 1/4" TS
- Output Impedance: 1 kΩ

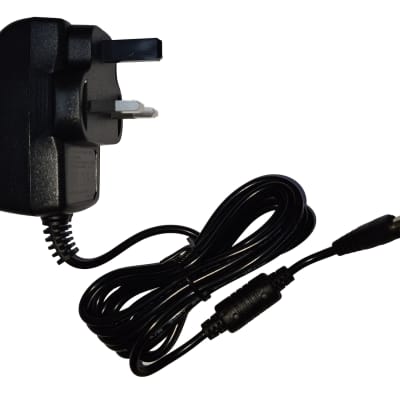

- Power Supply: 9V DC, 100 mA regulated
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg
