Eddie Van Halen Signature

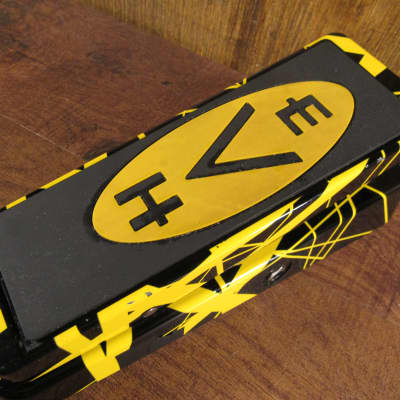

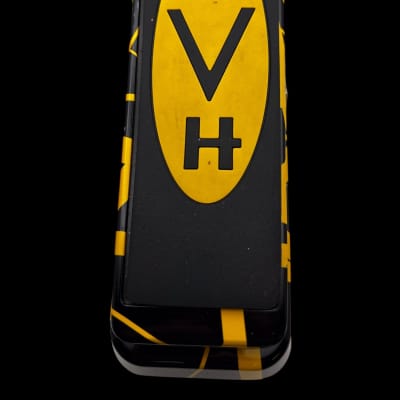

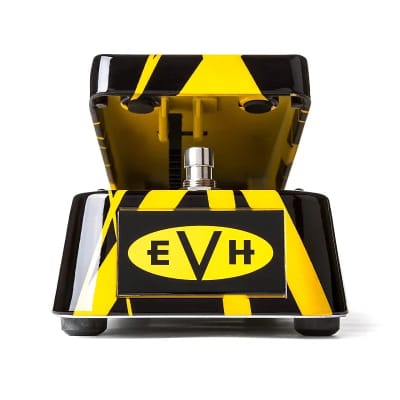

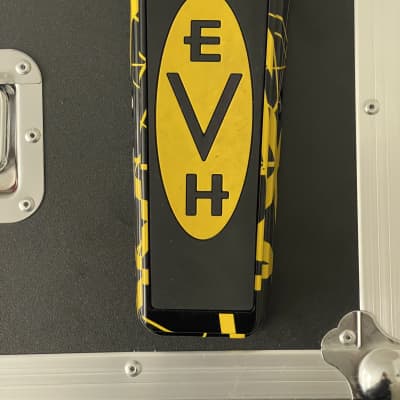

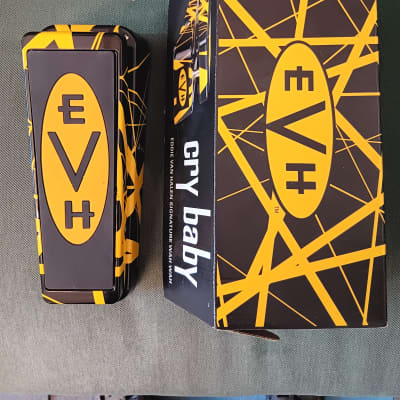

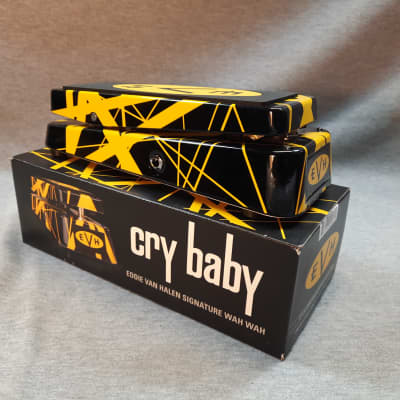

The Dunlop EVH95 Eddie Van Halen Signature EVH Cry Baby Wah Pedal is based on EVH's own "Holy Grail" wah pedal, customized in the early '90s. It features a custom inductor, pot, and an extra-wide frequency sweep. The pedal can be powered by a 9V battery, a Dunlop ECB-003 AC adapter, or a Dunlop DCB-10 DC Brick power supply (sold separately).

Specifications:
- Filter Parameter:
- Low Pass: 300Hz ~ 380Hz
- High Pass: 1.9kHz ~ 2.3kHz
- Input Impedance: 800K
- Output Impedance: 10K
- Bypass: True Hard Wired Bypass
- Maximum Input Level: -13.5dBV (@ Filter’s Center Frequency)
- Maximum Output: +6.5dBV
- Maximum Gain (Toe Down): +21dB @ 1.9kHz ~ 2.3kHz
- Maximum Gain (Heel Down): +20dB @ 300Hz ~ 380Hz
- Signal to Noise: Heel Down >97dBV, Toe Down >87dBV, ‘A’ weighted
- Power: 2mA @ 9V DC (18mW no load)

General Info:
- Width: 6"
- Height: 4"
- Depth: 10"
- Weight: 2 lbs
- Power Source: 9V DC power supply (sold separately)

The pedal also features a clone of EVH worn-in pot, custom wound EVH inductor, custom taper EVH potentiometer, true hardware bypass, dual bright blue bypass LEDs, black and yellow Van Halen II striped graphics, custom EVH logo tread, and adjustable rocker torque.
