Lofi Machine

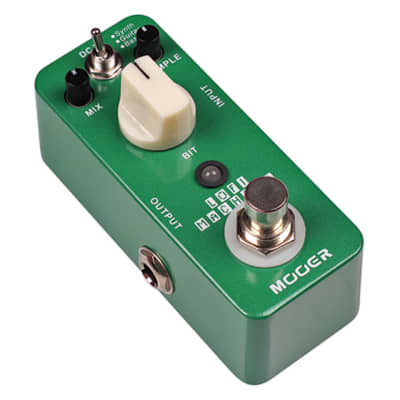

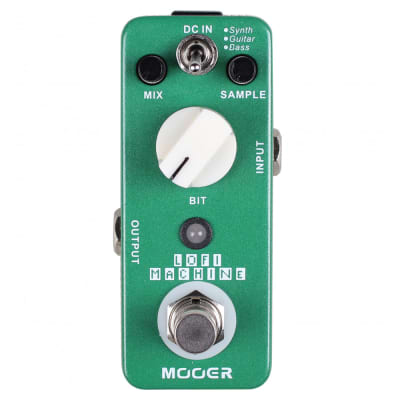

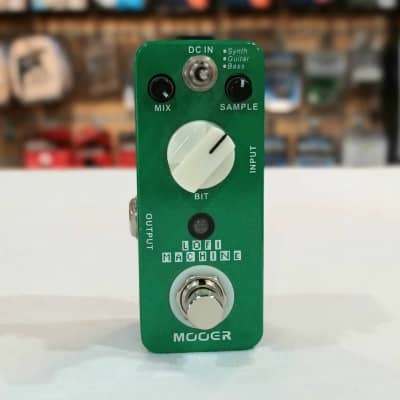

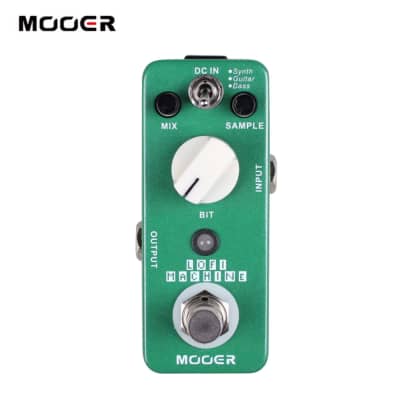

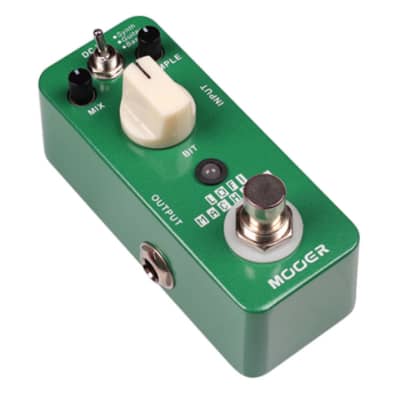

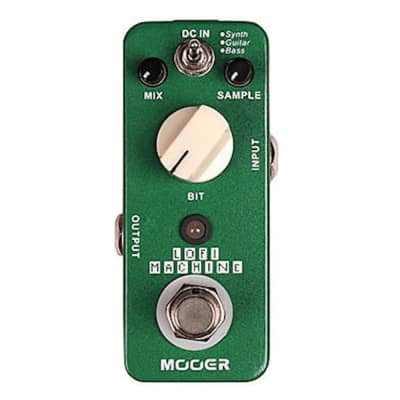

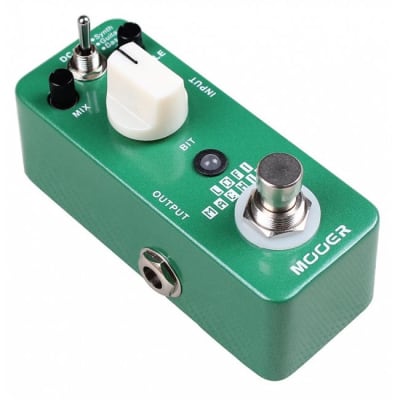

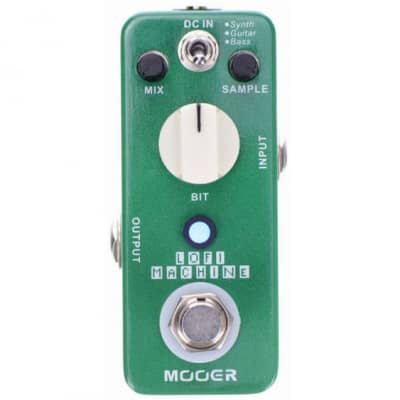

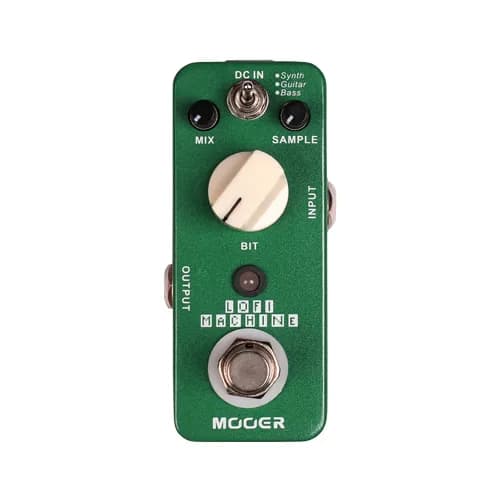

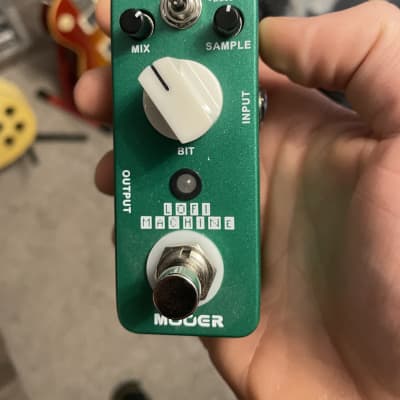

The MOOER Lofi Machine is a sample reducing pedal designed for electric guitar. It offers a range of sampling rate and depth reduction effects, providing musicians with creative sound manipulation capabilities. The pedal features a durable metal shell and compact dimensions, measuring approximately 93.5mm (D) × 42mm (W) × 52mm (H) and weighing 160g.

Key Technical Specifications:
- Sampling Rate Range: 60Hz to 31250Hz
- Sampling Depth Range: 5-bit to 16-bit
- Input: 1/4” monaural jack (impedance: 470k Ohms)
- Output: 1/4” monaural jack (impedance: 100 Ohms)
- Power Requirements: AC adapter 9V DC (center minus plug), current draw of 128mA

The pedal offers three modes for versatile use with guitar, bass, synth, or sound players. It also features true bypass switching for transparent signal routing when the effect is disengaged.
