Microtubes X7

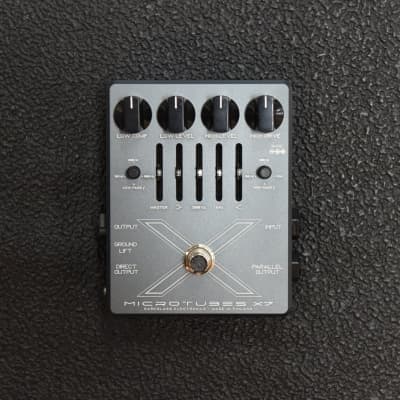

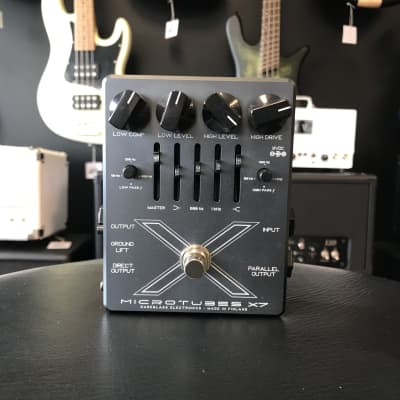

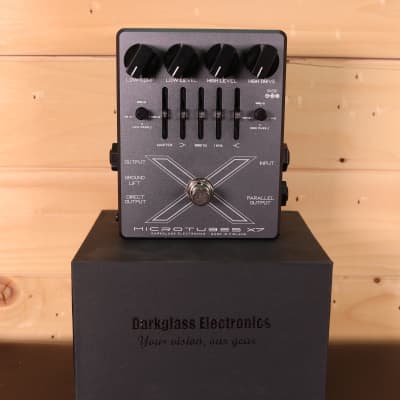

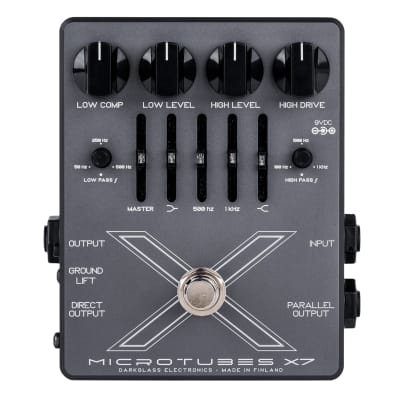

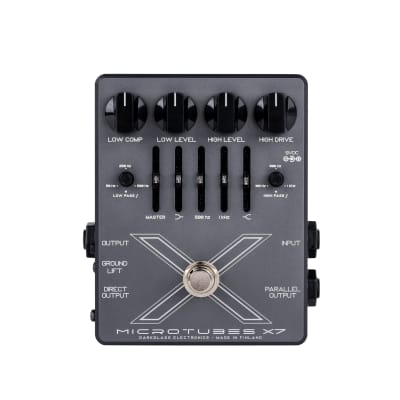

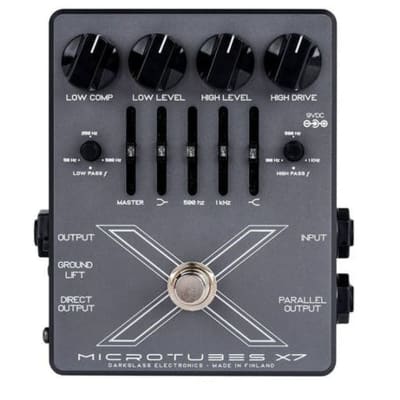

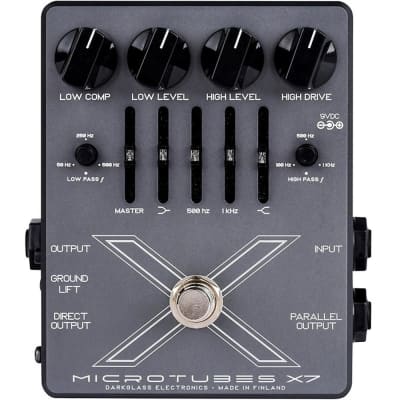

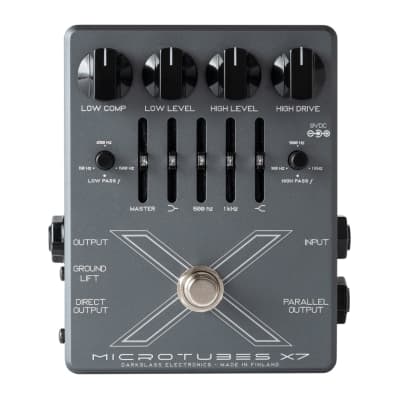

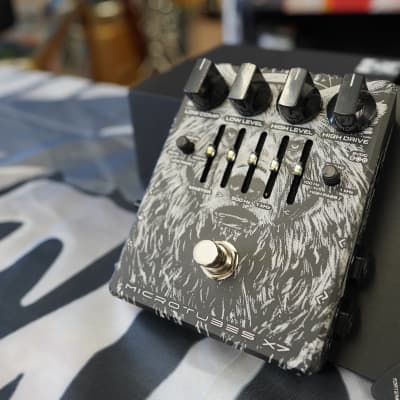

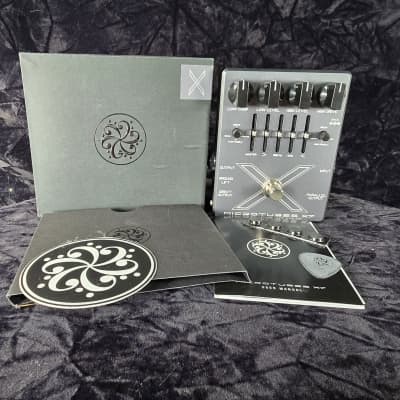

The Darkglass Electronics Microtubes X7 is a bass preamp pedal with a variety of features and technical specifications:

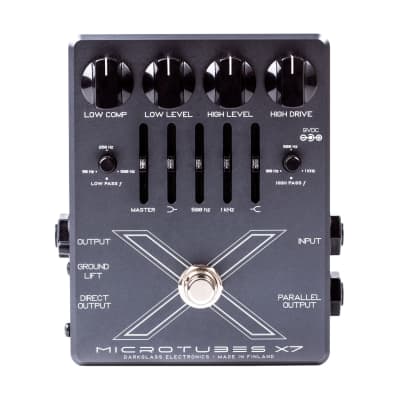

- Front Features:
- High Pass Frequency: Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) to 1kHz for ultra-sharp definition.
- High Drive: Sets the amount of distortion for the high pass side.
- High Level: Sets the output volume of the distorted high-pass signal.
- Low Pass Frequency: Controls the cutoff frequency to be mixed back to the high-pass side, ranging from 50Hz (for only sub-bass) to 500Hz to preserve some clean mids.
- Low Comp: Sets the amount of compression for the low-pass signal.
- Low Level: Sets the output volume of the low-pass signal.
- Master: Sets the overall volume of the unit.
- Low shelf: +-12dB @ 80 Hz
- 500 Hz: +-12dB
- 1 kHz: +-12dB
- High shelf: +-12dB @ 5 kHz

- Technical Specifications:
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Current Consumption: 70mA
- Voltage: 9V DC (Center Negative)
- Dimensions: Width 94 mm (3.70 in), Height 120 mm (4.72 in), Depth 46 mm (1.81 in)
- Weight: 320 g (0.70 lb)

- Additional Information:
- The Microtubes X7 has a current draw of 70mA and should only be used with a regulated 9V DC adapter with a center-negative plug.
- It does not accept batteries due to ecological reasons.
- Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage the unit, voiding the warranty.
