Bass D I

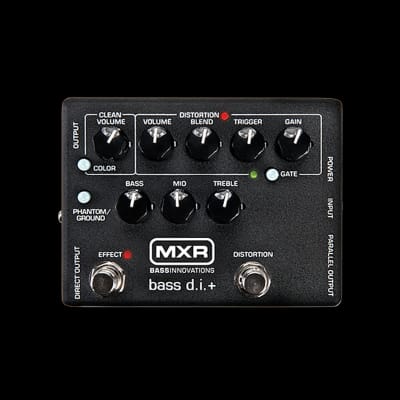

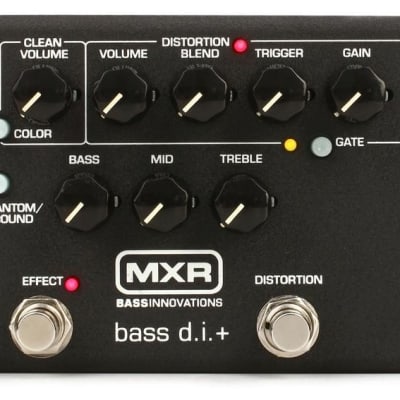

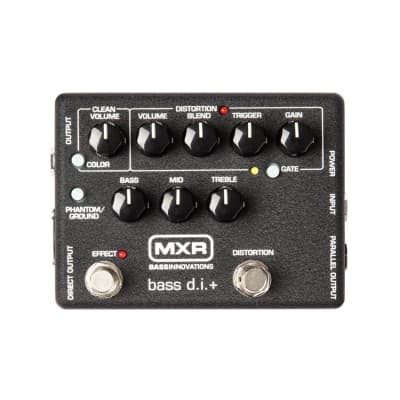

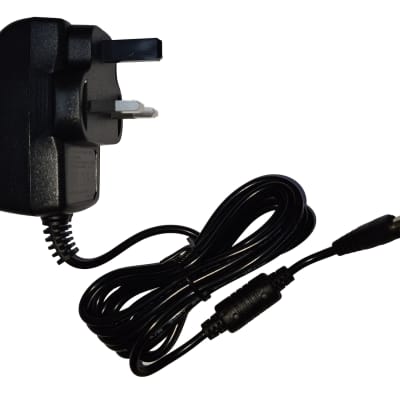

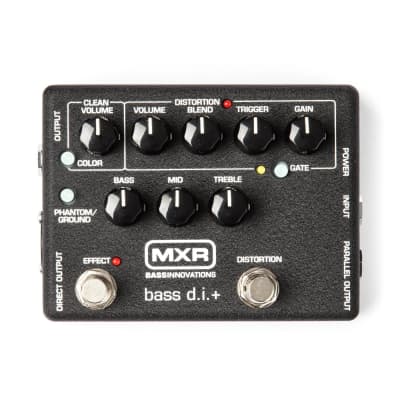

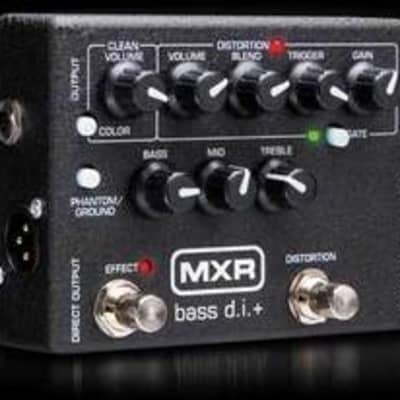

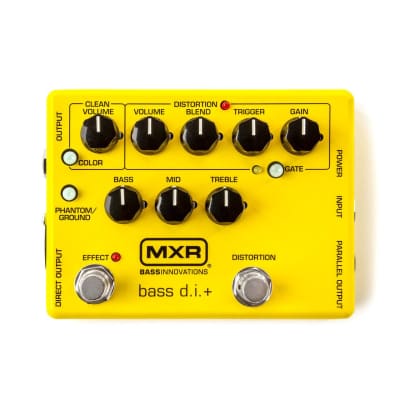

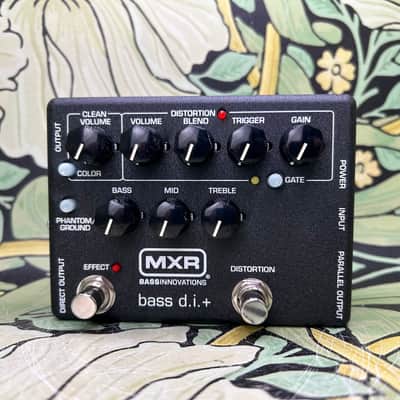

The MXR Bass D.I.+ is a versatile pedal designed for bass guitarists, offering a range of features and controls to enhance tone and performance. The pedal includes a D.I., separate clean and distortion channels, and a noise gate trigger control to eliminate unwanted hum and hiss. It can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

Technical Specifications:
- Input Impedance: 2.2 MΩ
- Output Impedance: Unbalanced 150 Ω, Balanced 300 Ω
- Bypass Frequency Response: +0/-0.5 dB, 20 Hz to 20 kHz
- Tone Controls: Bass ±18 dB at 60 Hz, Mid ±10 dB at 850 Hz, Treble ±12 dB at 4 kHz
- Noise Floor: Bypass -102 dBV, Clean Effect -98 dBV, Distortion Effect with Gate Off -94 dBV, Distortion Effect with Gate On -98 dBV
- Volume Control Range: 40 dB
- Gate Trigger Range: 28 dB Sensitivity -66 dBV at 1 kHz
- Bypass: Buffered
- Current Draw: 9 mA
- Power Supply: 9 volts DC

The pedal also features a color switch for preset EQ, three-band tone control, gain knob for distortion, blend control for mixing clean and distorted signals, and XLR and parallel 1/4" outputs with a phantom power switch. The Bass D.I.+ is built with high-quality components and is housed in a durable enclosure suitable for live performances and studio recording.
