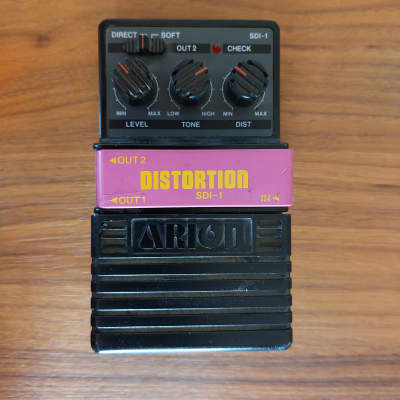

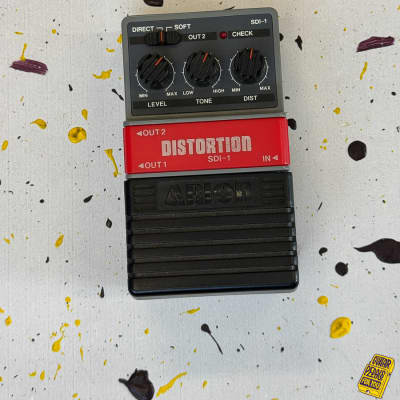

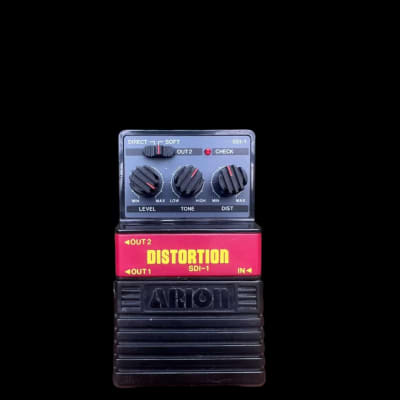

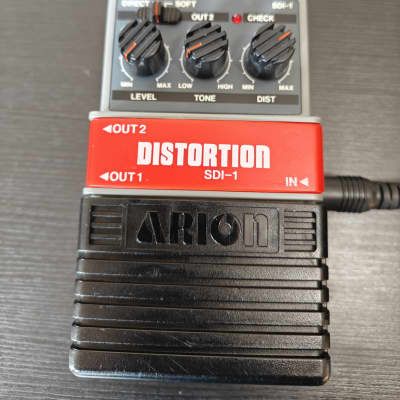

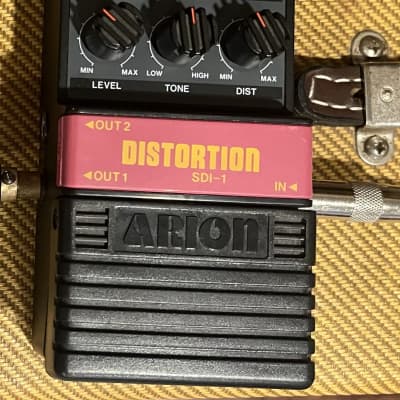

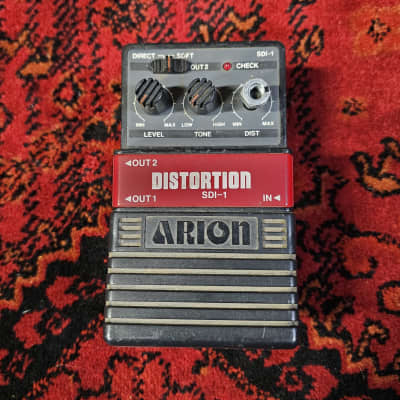

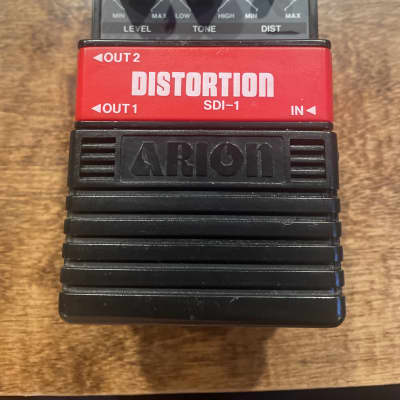

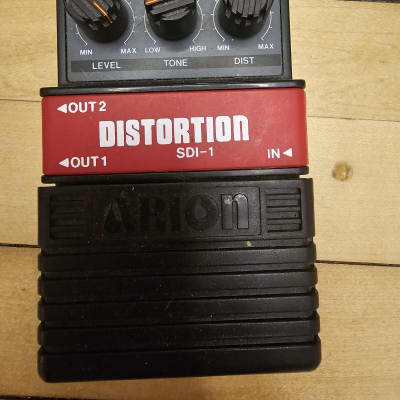

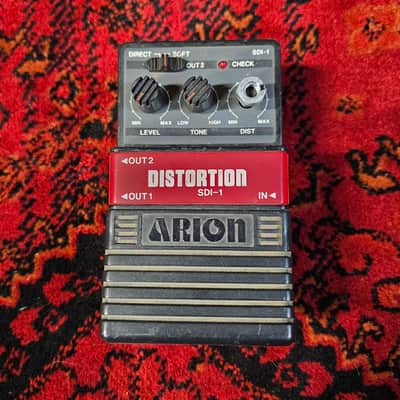

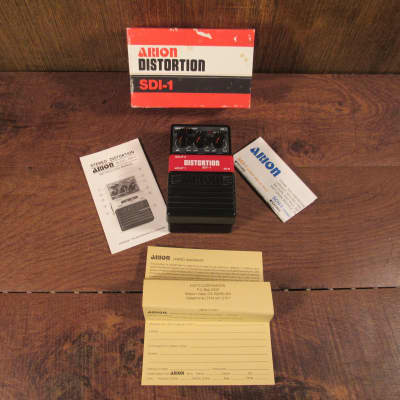

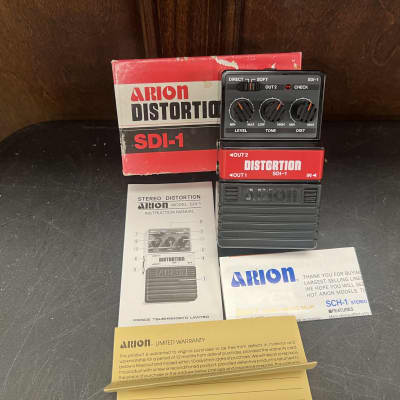

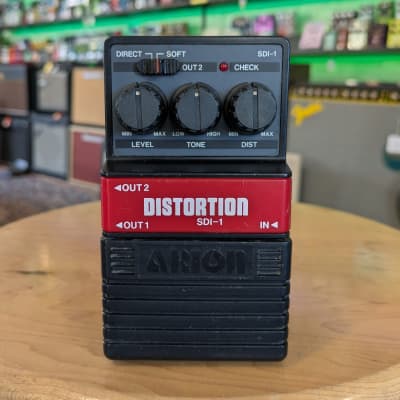

SDI-1

The Arion SDI-1 Stereo Distortion Pedal is a low-cost, versatile effects solution for stereo distortion enthusiasts. It features heavy distortion with excellent control over tone and intensity. The pedal includes a direct / soft switch and a two-output design, allowing for further customization of the sound. The easy-open battery compartment facilitates simple 9-volt operation.

Specifications and Features:
- Power Supply not included
- Power Requirements: DC 9V Battery or 100mA - 200mA AC Adapter
- Consumption Current: DC 9V 7.2mA
- Input Impedance: 300K ohms
- Output Impedance: 10K ohms or more
- Noise Level: -65dB, 0dB = 1V Input short
- Controls: Level, Tone, Distortion
- Other Functions: Pedal sw, check indicator, mode sw (OUT 2)
- Jacks: Input jack, output jacks 1 and 2, AC adapter jack
- Dimensions: 73W x 50H x 127D mm
- Weight: 330 grams including battery
