Interstellar Orbiter

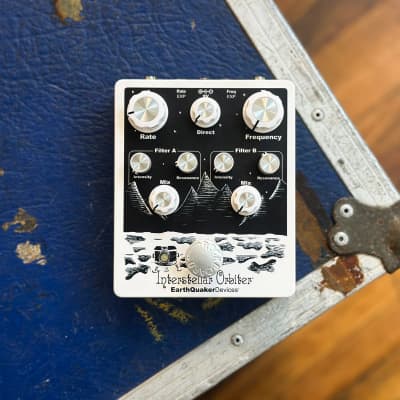

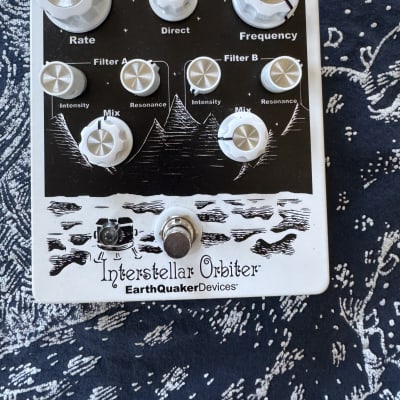

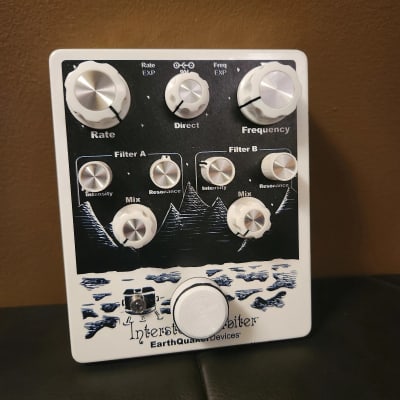

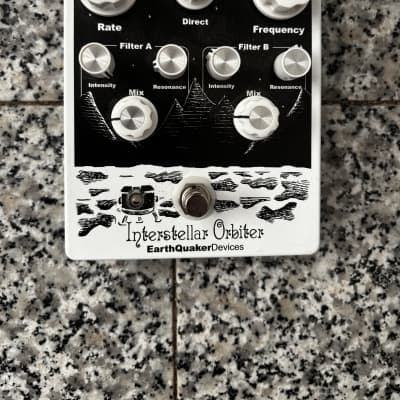

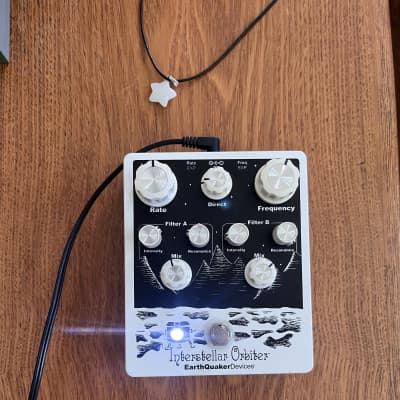

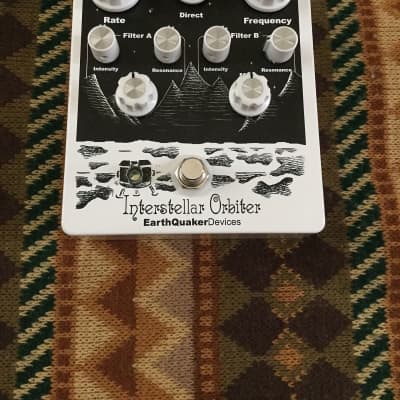

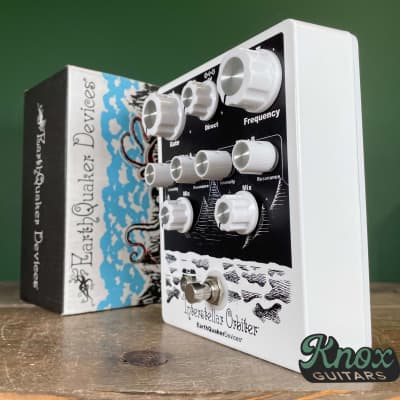

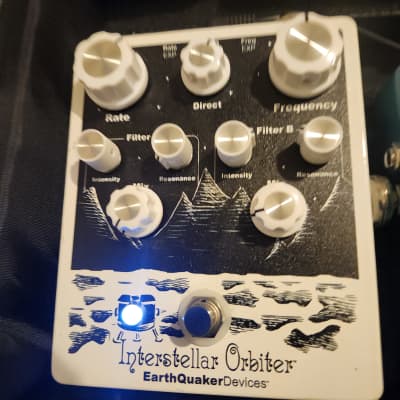

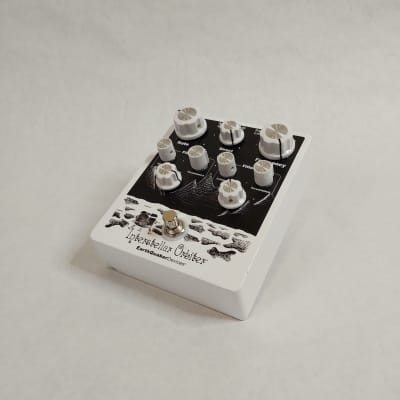

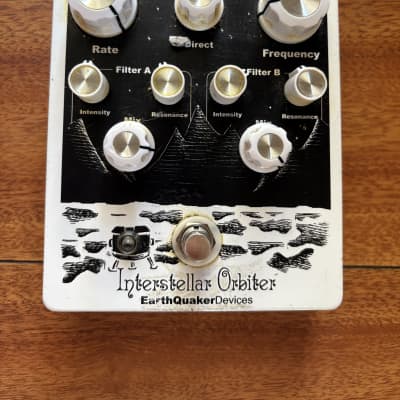

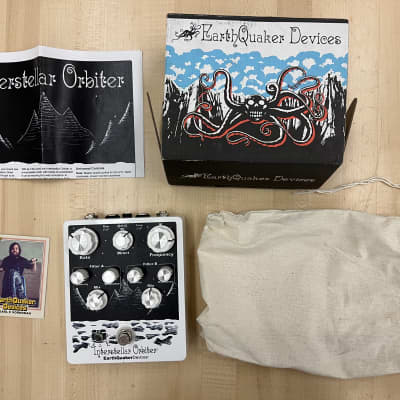

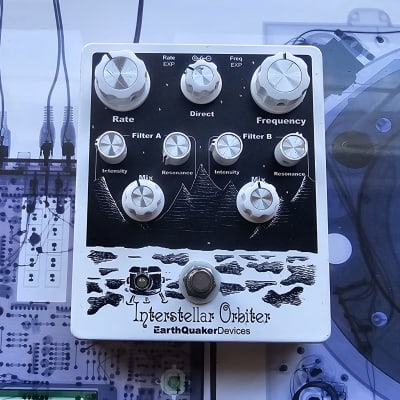

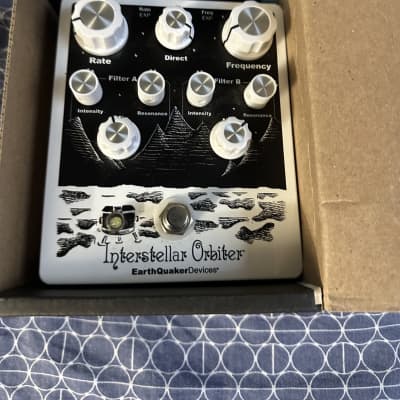

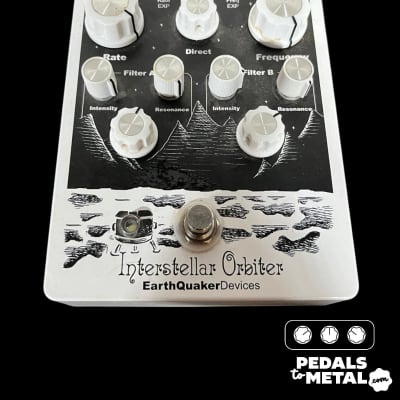

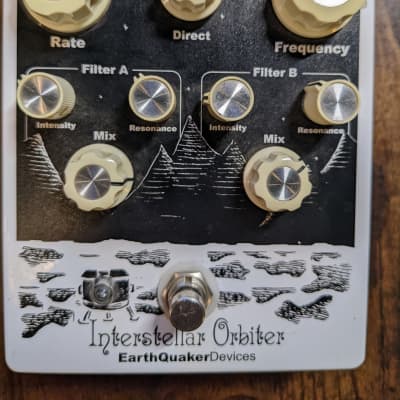

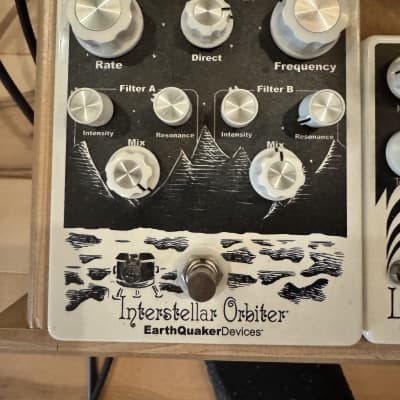

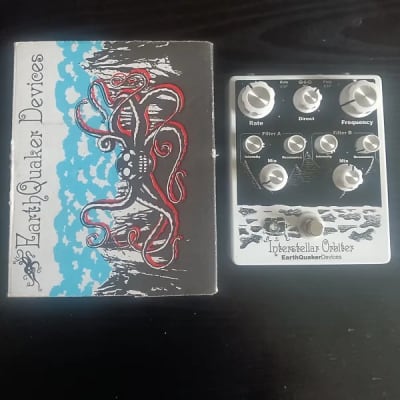

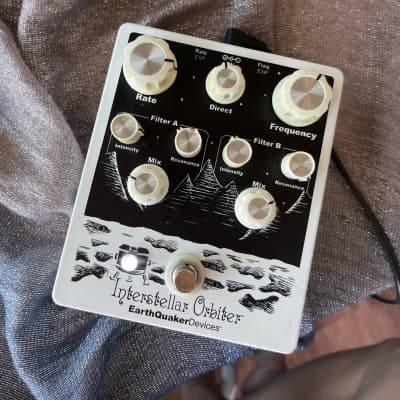

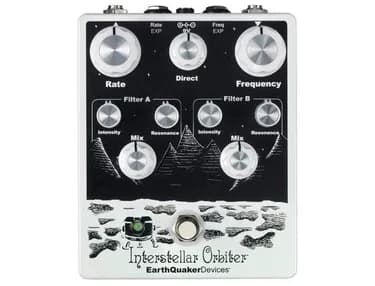

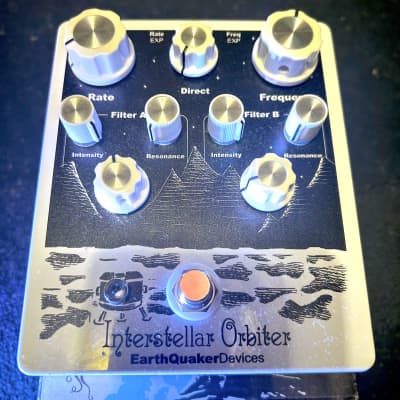

The Interstellar Orbiter by EarthQuaker Devices is a dual resonant filter controlled by a single LFO that sweeps each filter in opposite directions. It features three universal controls: a master Frequency control that governs the center frequency of both filters, a master Rate control for the LFO, and the Direct control for blending in the unaffected dry signal. The LFO sweeps each filter in opposite directions and has a wide range. Each filter is voiced differently and has controls for LFO Intensity, Resonance, and Mix. The pedal also includes expression pedal jacks for both the LFO Rate and the Master Frequency. The Interstellar Orbiter is designed to provide a wide range of possibilities, from wah emulation to complex vocal formant filter and even a fairly convincing rotary speaker effect. It is an all-analog, true bypass pedal with dimensions of 5.65 x 4.75 x 2.25 inches (144 x 121 x 57 mm) and a current draw of 20 mA. The device takes a standard 9-volt DC power supply with a 2.1mm negative center barrel.
