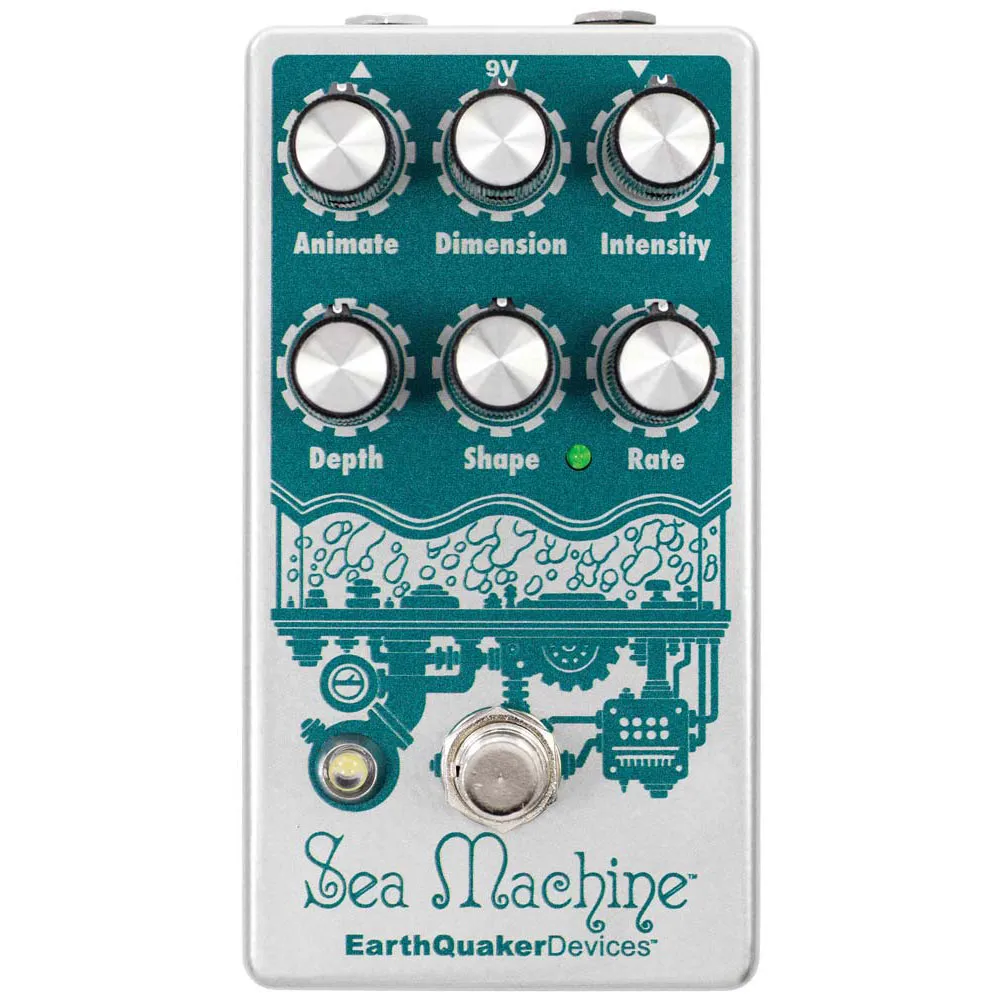

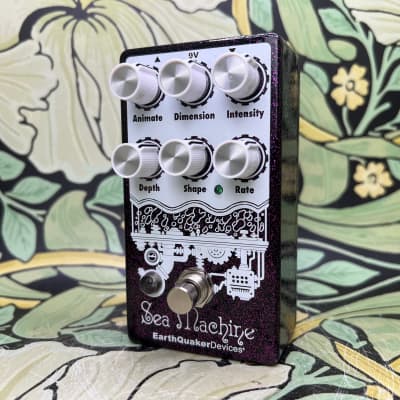

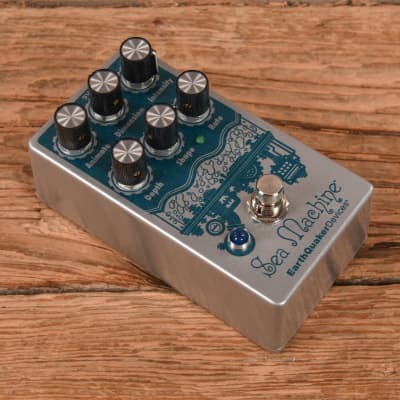

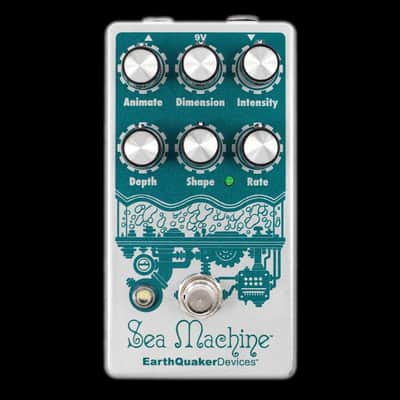

Sea Machine

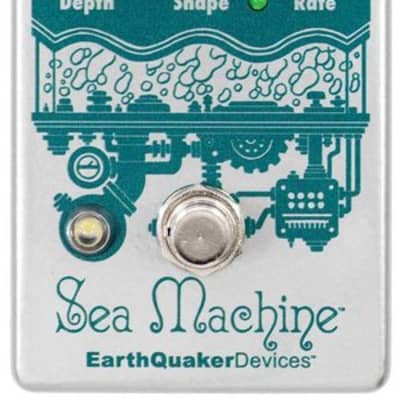

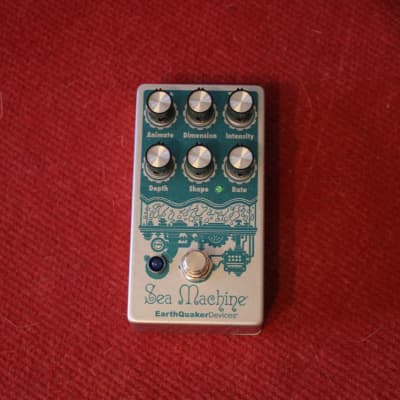

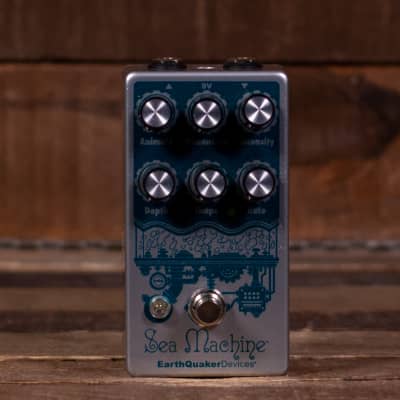

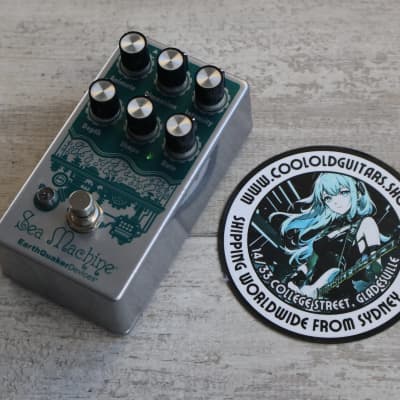

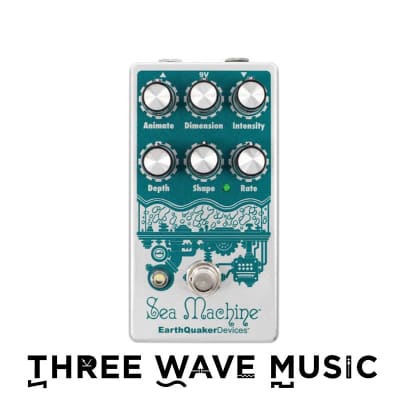

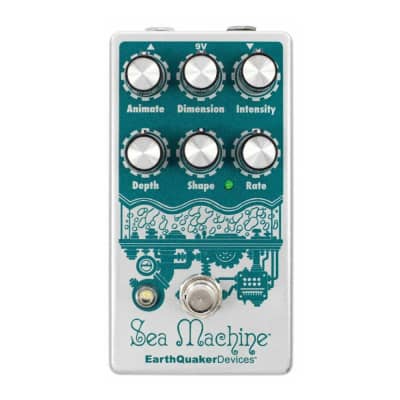

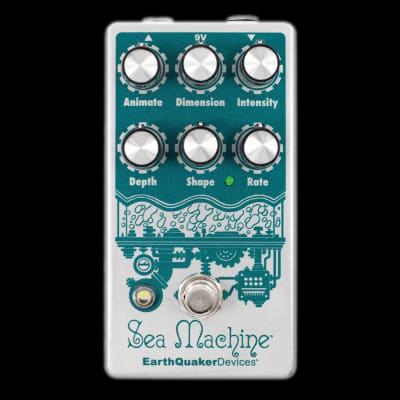

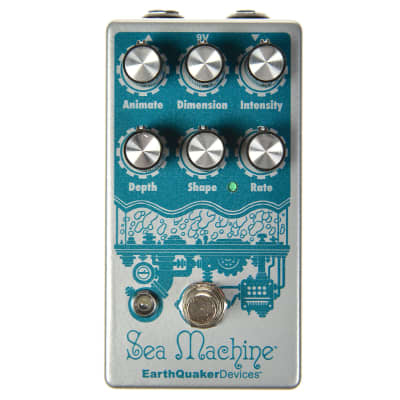

The EarthQuaker Devices Sea Machine is a chorus pedal with extensive modulation possibilities. Its features and technical specifications include:

- Controls:
1. Animate: Controls the pitch-shifted signal's swing, from tight and focused to wild and animated.
2. Dimension: Adds slap-back, reverb-like ambiance, and echo-resonance effects.
3. Intensity: Adjusts the blend of modulated signal with the dry signal.
4. Depth: Modulates the delay time.
5. Shape: Adjusts the wave from triangle to square.
6. Rate: Sets the speed of the LFO, with a miniature LED displaying the tempo.

- Measures: 4 5/8″ x 2 1/2″ x 2.25″ with knobs.

- Power: Requires any standard regulated 9-volt power supply with a negative center 2.1mm barrel. It does not use batteries and has a current draw of around 100mA.

- Design: The Sea Machine is a hybrid of digital and analog circuitry with a slightly extended delay time, allowing for a unique chorus effect.

- Compatibility: Designed to work well following fuzz, distortion, or overdrive without compromising the signal quality.

- Bypass: True bypass with a transparent buffer that leaves the all-analog dry signal unaltered and clear.

The Sea Machine offers a wide range of modulation effects, making it suitable for guitar and bass players seeking versatile chorus capabilities.
