MultiDrive

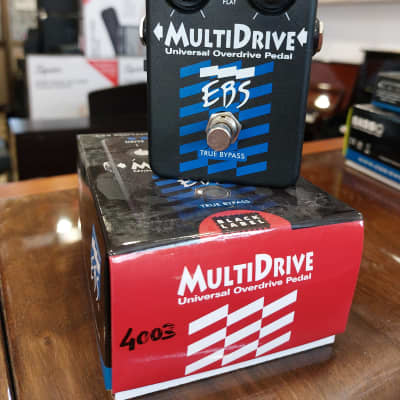

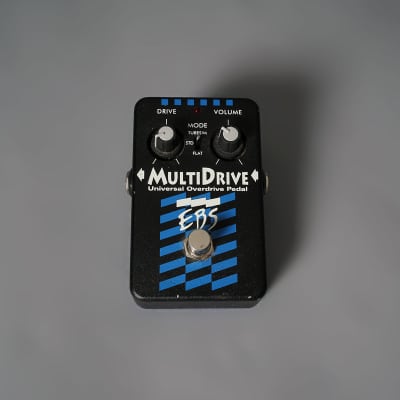

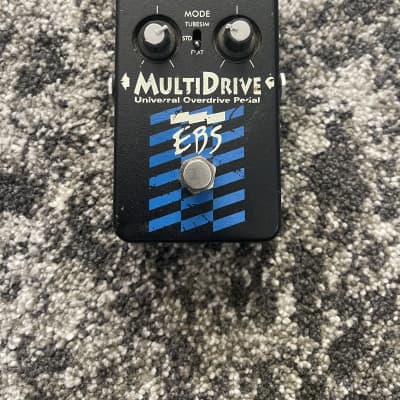

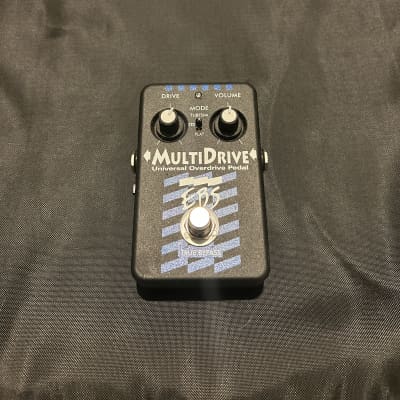

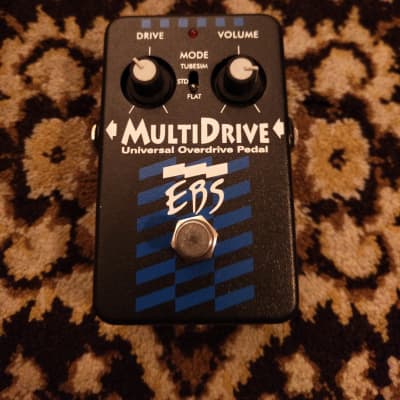

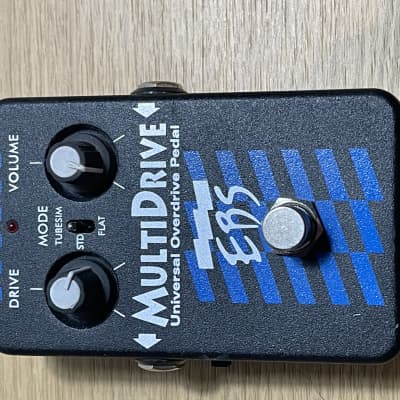

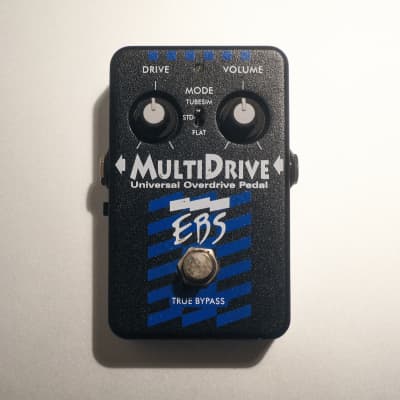

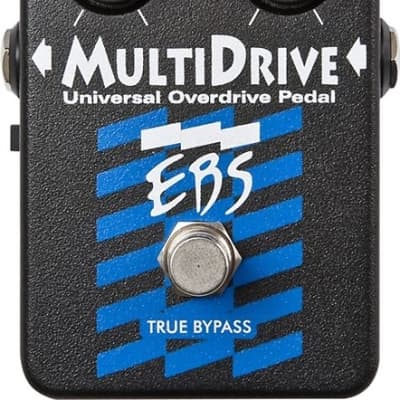

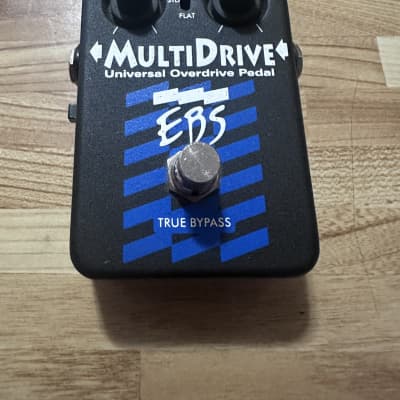

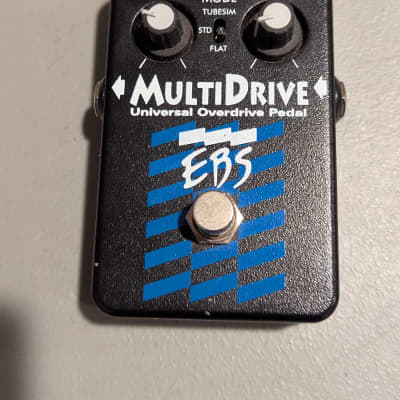

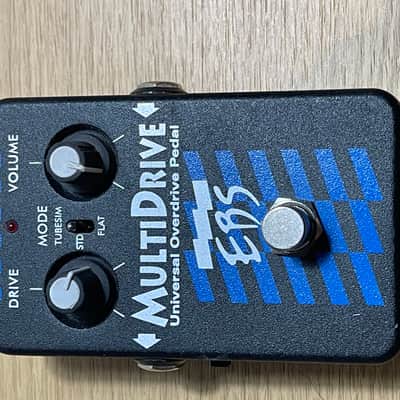

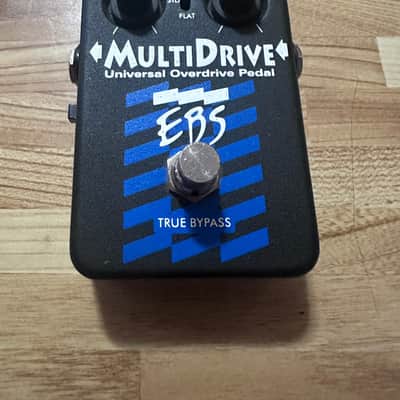

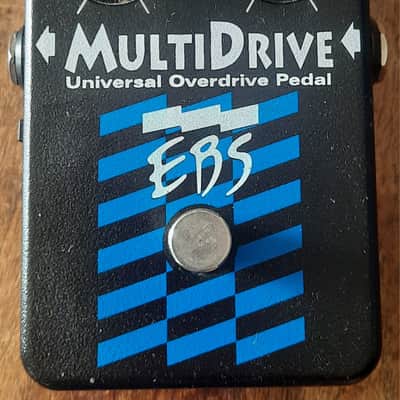

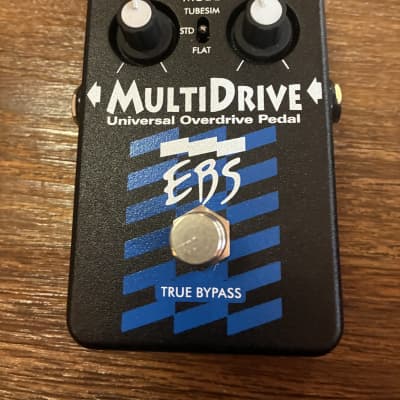

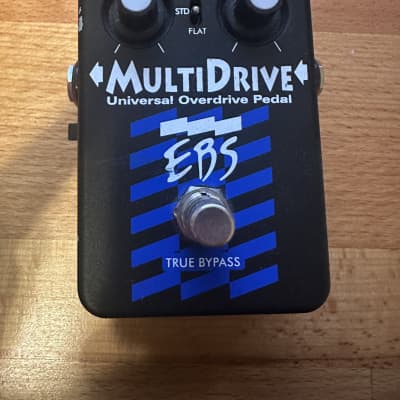

The EBS MultiDrive is an ultra-compact and robust overdrive pedal designed for bass instruments. It is capable of producing sustain, overdrive, and various tube amp distortion sounds. The pedal features a Class A overdrive engine with a wide gain range, emulating a classic vintage style preamp tube. The MultiDrive offers three modes: Standard, Flat, and Tubesim, allowing users to select different overdrive sounds. The Tubesim mode activates a second tube simulator, adding extra harmonics with compression and slightly less high-end attack.

Key Technical Specifications:
- Nominal Input Level: -8 dBv (active) or -20 dBv (passive)
- Input Impedance: 700 kohms
- Dry Bandwidth: +0/-3 dB 20 - 20k Hz
- Effect Bandwidth: +0/-3 dB 35 - 12k Hz
- Drive Gain Range: 0 - 60 dB min
- Dimensions: Width 70 mm (2.8”), Height 115 mm (4.5”), Depth 35 mm (1.4”)
- Weight: 400g (0.88 lb. )
- Power Requirements: 9 - 12 V DC Regulated, 30 mA max. Protected against accidental overvoltage up to 18 V

The pedal is designed for both live and studio use, offering a durable construction and true bypass switching. It can be powered by a DC power adaptor or a 9V battery. The MultiDrive is suitable for enhancing bass sound and is recommended for use in an effects loop for post-filter enhancement.
