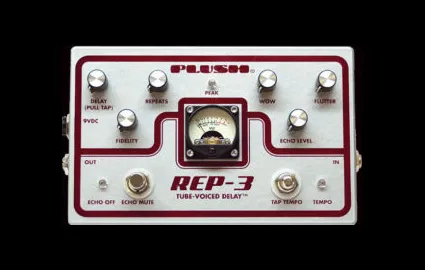

Plush REP-3

The Plush REP-3 by Fuchs is a tube-voiced delay pedal designed to deliver tape-like warmth and musicality without the maintenance hassles associated with traditional tape delays. Here are the technical specifications and features:

- The REP-3 features up to one second of warm musical delay using a unique solid-state audio circuit topology, retaining the warm tones of an analog tape delay.
- The pedal internally converts incoming 9 volts to plus and minus 9V for maximum dynamic range, lowest noise, and musicality.
- It incorporates proprietary digital technology for the delay line and features ultra-bright LEDs for high visibility on stage or outdoors.

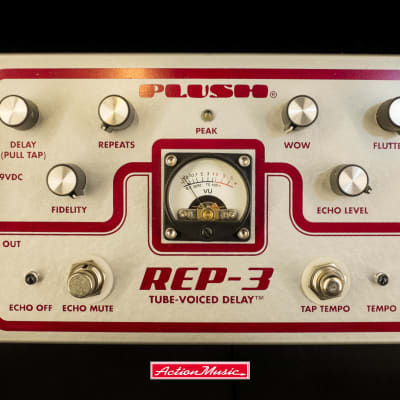

- The control panel includes LEDs for echo mute and tempo indication, and the controls consist of delay time, mix, wow and flutter, repeats, and fidelity.
- The fidelity control allows users to tailor the repeats from digitally clear to tape smoothness, and an internal switch enables setting the output to wet (delay only) for use through a parallel effects loop or for stereo ping- pong operation.
- The pedal operates simply, without fancy programming or software complexity, and is designed by musicians for musicians.
- Technical specifications include:
- Power: 60mA from an external power supply via an industry-standard 2.1mm tip negative connector.
- Input: 1-Meg impedance signals from 500mV to 1-volt level.
- Mix output: 10K output impedance, 1.5-volt level max.

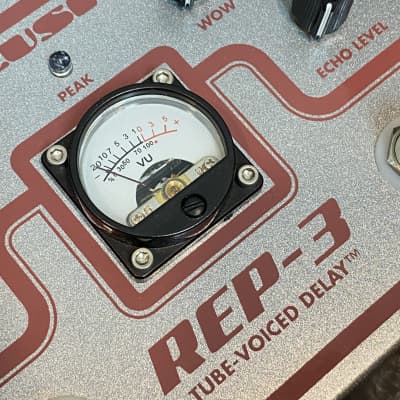

- VU Meter: A-weighted 0dB indicates maximum signal to the delay line before overload, working in conjunction with LED peak indicator.
- Weight: 1 lb, with a powder-coated die-cast machined aluminum enclosure featuring heat-treated silk screening.
- Premium Neutrik jacks, Cliff switches, Alpha or Bourns metal-shaft potentiometers.
- Digital delay technology: 32kHz clock speed, 16kHz bandwidth, 20ms to 1-second delay range, and passive wet/dry mixing for maximum sonic quality.
- Tap Tempo circuit designed by Ron Menelli of RJM Music Products.

The Plush REP-3 is designed for use in both studio and live performance settings, offering a retro styling that is equally at home on stage or in a studio environment.
