Vision

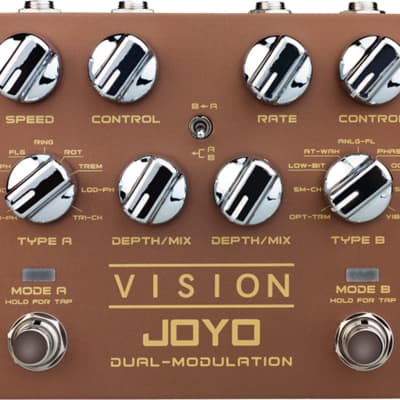

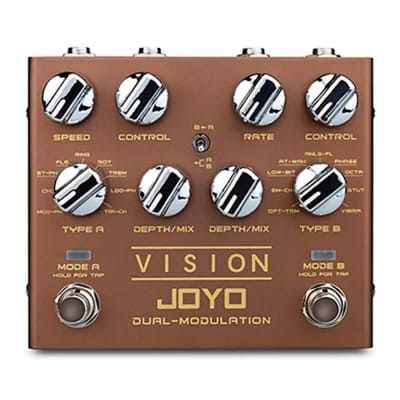

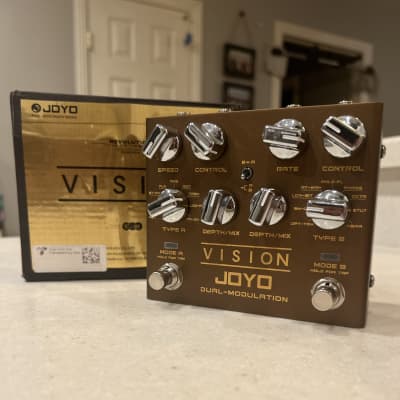

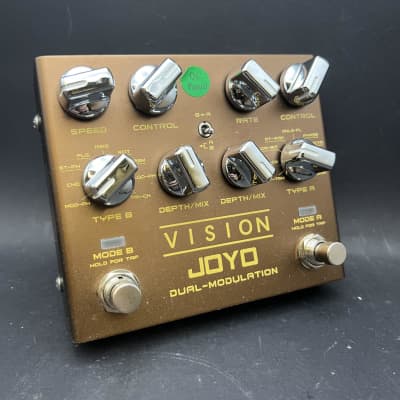

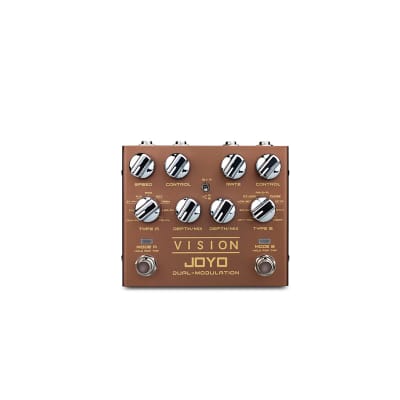

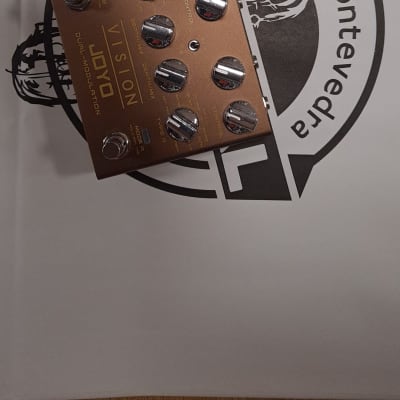

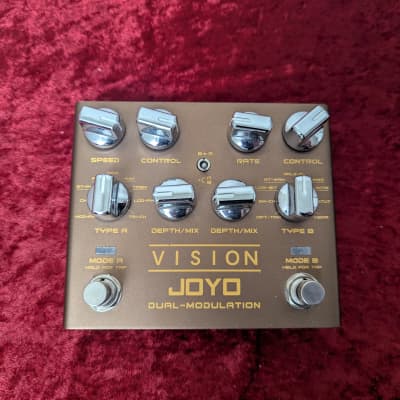

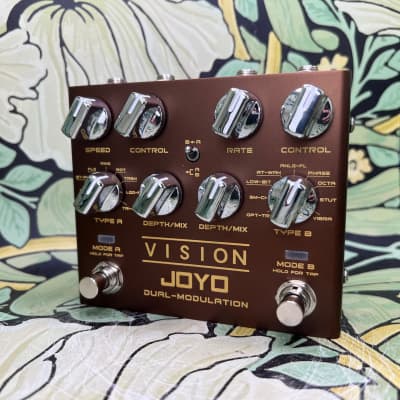

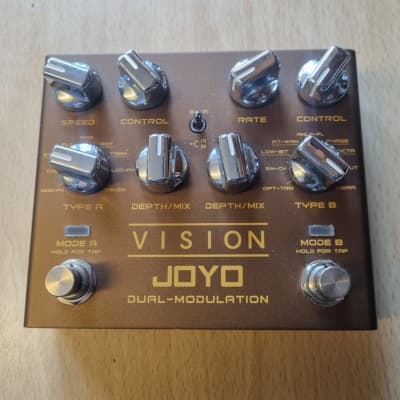

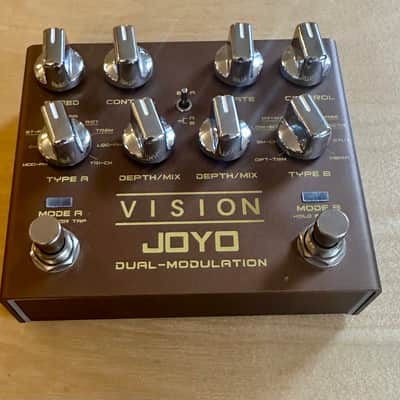

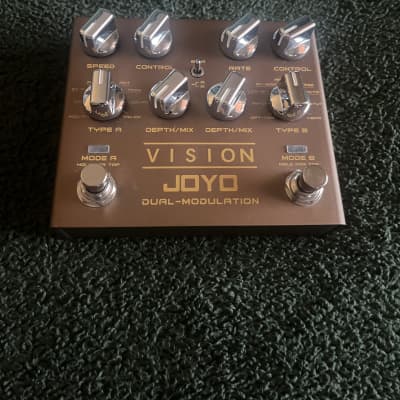

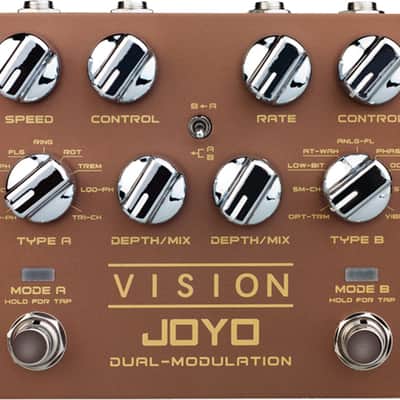

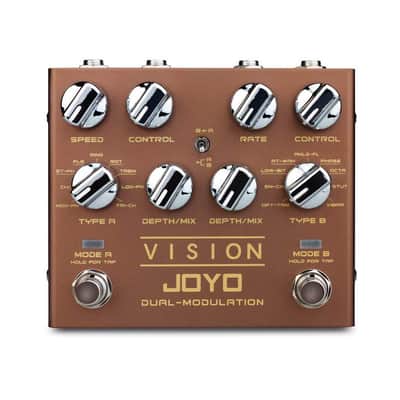

The Vision by Joyo is a dual-channel stereo modulation guitar effect pedal that offers a wide range of modulation effects. It features two independent MODE modules containing 18 modulation effects, with each MODE A and MODE B having its own independent adjustable parameters. The pedal allows for parallel and serial chain switching and offers true bypass signal routing.

The specific technical specifications of the Joyo Vision pedal are as follows:
- Input: 1/4” mono audio interface x2 (impedance 1M Ohms)
- Output: 1/4” mono audio interface x2 (impedance 100 Ohms)
- Sample rate: 44.1K
- Sampling accuracy: 24bit
- Power supply: DC 9V (center minus)
- Current: 170mA
- Dimensions: 13011050mm
- Weight: 425g
- Signal Bypass Type: True Bypass

The pedal also features stereo inputs and outputs, making it suitable for use with stereo effects or for sending the signal to two guitar amps. Additionally, it includes a built-in Tap Tempo for setting modulation rates.

The Joyo Vision pedal is part of the R Series, featuring metal housed stompboxes with ambient LED lighting. The LED lighting can be toggled between three modes: 'Sync' to the footswitch, 'Always', and 'Off'. The pedal also includes an LED effect indicator that activates when the footswitch and pedal are active.

The Vision by Joyo offers a versatile and comprehensive modulation solution for guitar, bass, keyboards, and synths, making it a valuable addition to any musician's effects arsenal.
