Deep Blue Delay Guitar Pedal By Mad Professor

Deep Blue Delay

Pedal Manufacturer

Mad Professor

Description

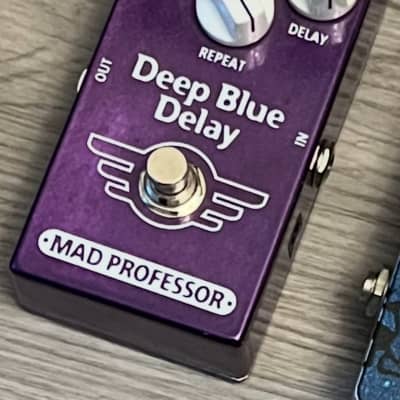

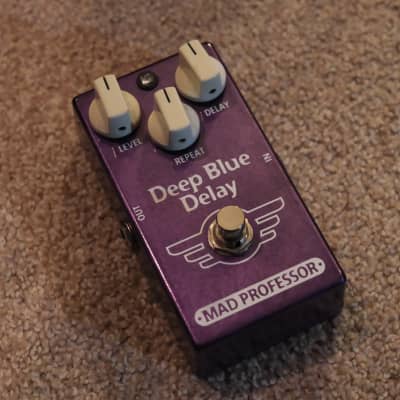

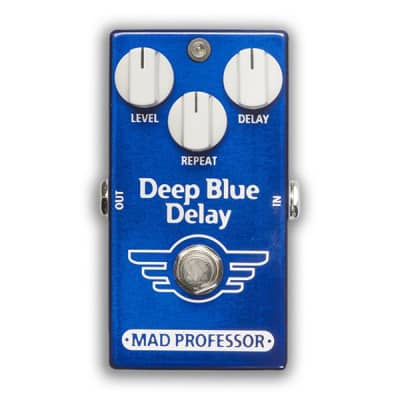

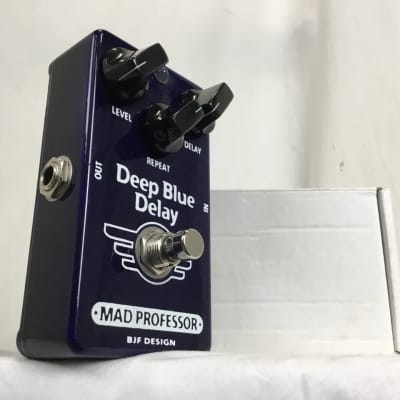

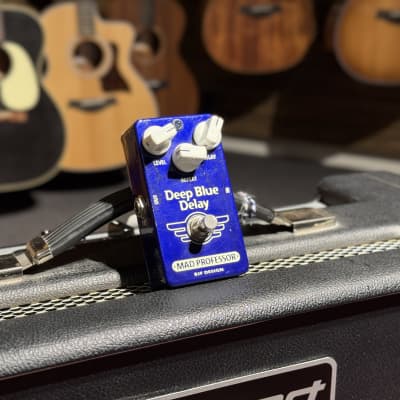

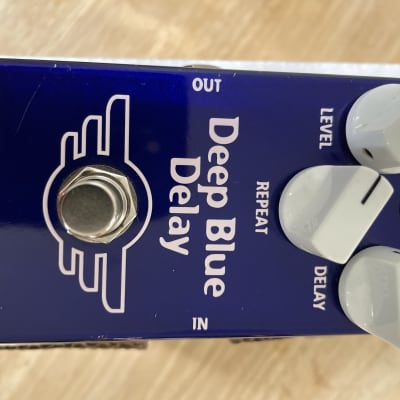

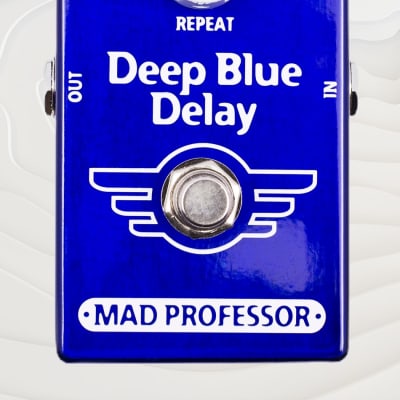

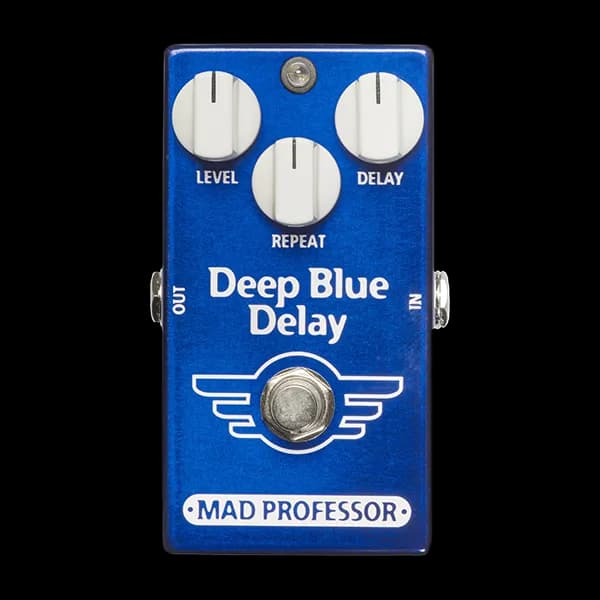

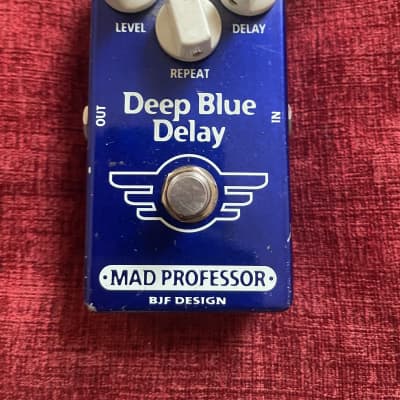

The Mad Professor Deep Blue Delay is a natural sounding digital/analog delay pedal with an analog direct signal path. It is designed to provide vintage warmth and ambiance, similar to that of a vintage tape echo. The pedal is compact, with dimensions of 69mm x 111mm x 50mm including jacks and knobs.

Key features and specifications include:
- Controls: The pedal features Delay Time, Delay Level, and Repeat controls.
- Electrical Specifications:
- Current consumption: 32mA at 9VDC
- Voltage range: 8V to 15V (below 7.5V delay signal will be muted)
- Input impedance: 180K ohms
- Output drive capability: 10K ohms
- Maximum input voltage: 2V peak 650 mV rms
- Signal to noise ratio: 80 dB
- Delay time approximately 25 ms to 450 ms
- Power requirement supplied via 2.1 mm DC socket
- Input and output connections via 1/4” phone jack
- Complete bypass and input of circuit grounded when in bypass
- Power requirements: 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve

The Deep Blue Delay is specifically designed to work well with distorted tones and can be used before or after distortion. It is suitable for clean sounds as well, offering a carefully tuned delay tone with attention to the first critical reflection and repeat decay.

The pedal's digital construction makes it compact, stable, and virtually service-free, allowing for desired bandwidth and distortion levels without the limitations of analog construction. The delay medium offers a bandwidth similar to classic tape echo units and can be used in front of an amplifier or in amplifier effects loops.

Watch something on YouTube

Watch Deep Blue Delay Videos, Demos, and Reviews

Watch the latest video demos and reviews for the Deep Blue Delay from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

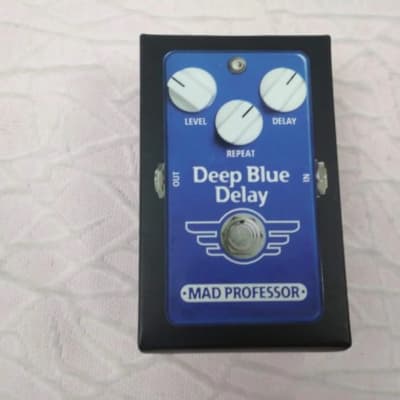

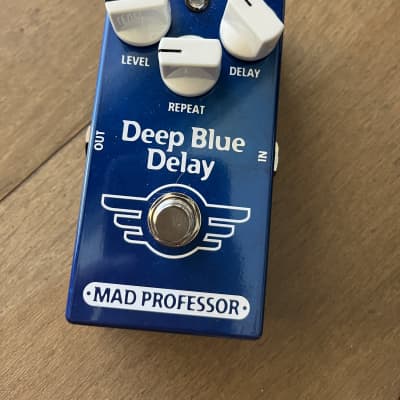

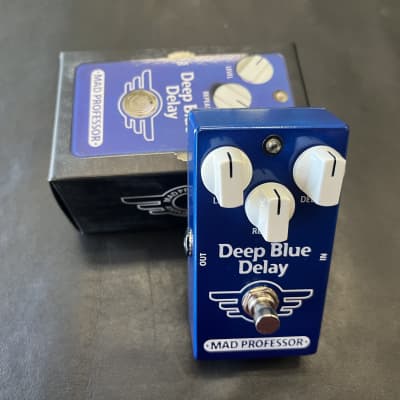

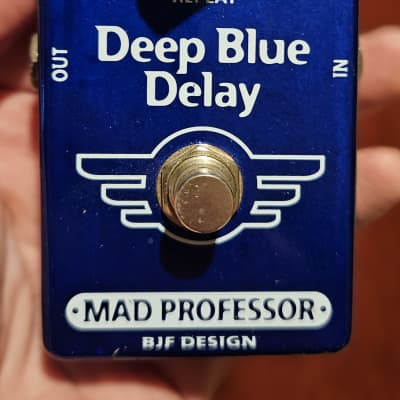

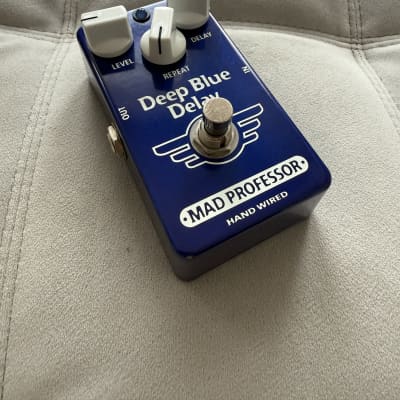

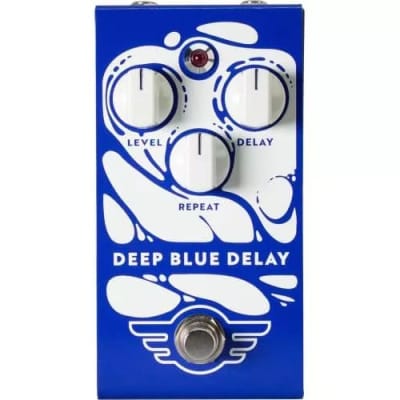

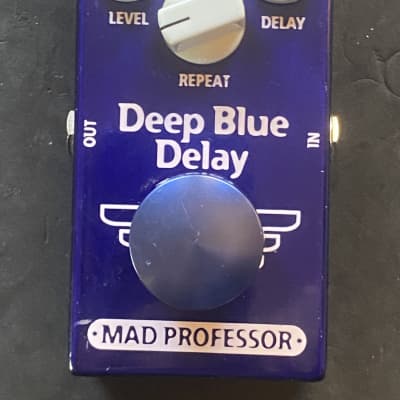

Find Mad Professor Deep Blue Delay Listings on Reverb

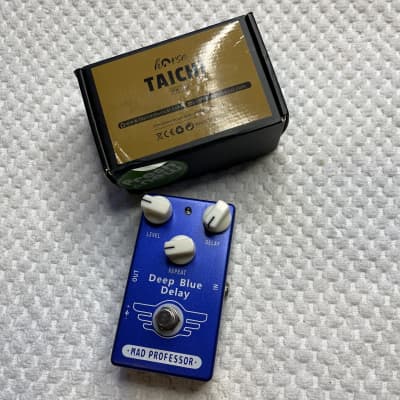

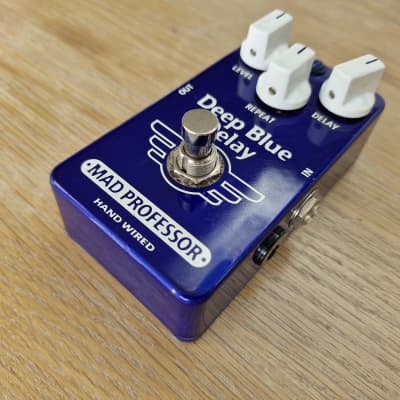

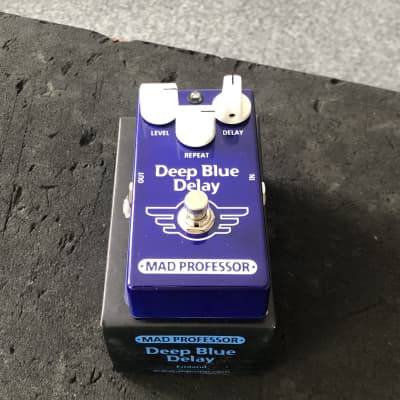

Below are live Reverb listings for the Mad Professor Deep Blue Delay from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.

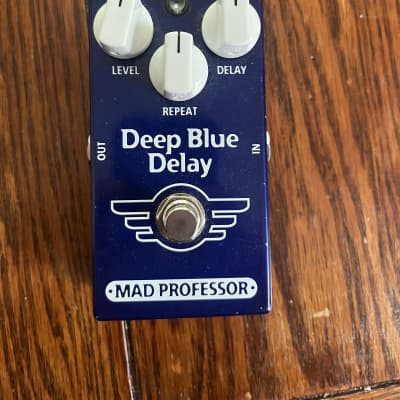

eBay listings for mad-professor-deep-blue-delay

eBay Logo for Listings

eBay Listings for Deep Blue Delay

Browse through eBay listings for the Deep Blue Delay compiled in real-time. From vintage finds to brand-new units, see a variety of purchasing options. This automated collection helps you explore deals and find the right pedal at the right price.

Similar pedals

eBay Logo for Listings

Pedals Similar to Deep Blue Delay on Stompbx

Discover pedals with similar features or sounds to the Deep Blue Delay. This section leverages data to suggest alternatives that complement or expand your pedalboard. Ideal for exploring related sounds or finding a pedal that matches your specific needs.

Canyon Delay and Looper Guitar Pedal By Electro-Harmonix

Delay

Electro-Harmonix

Canyon Delay and Looper

Magnetic Echo Guitar Pedal By Keeley

Delay

Keeley

Magnetic Echo

Tonal Recall Guitar Pedal By Chase Bliss Audio

Delay

Chase Bliss Audio

Tonal Recall

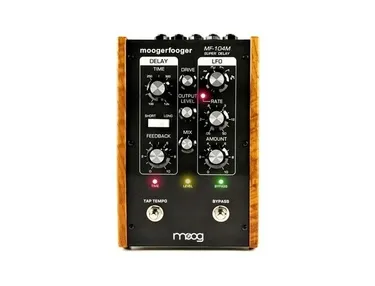

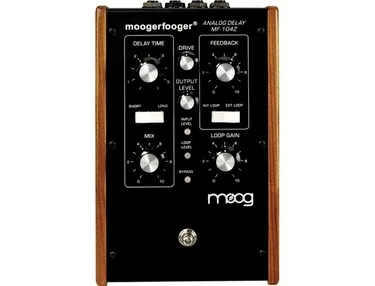

Moogerfooger MF-104 Analog Delay Guitar Pedal By Moog
