Invader Distortion Pedal

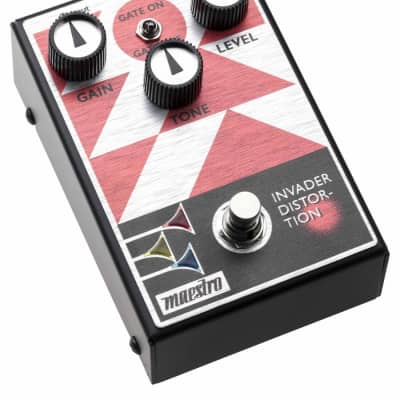

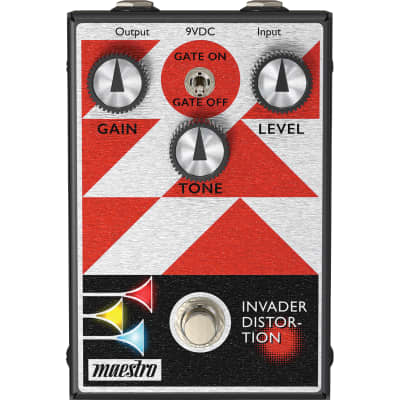

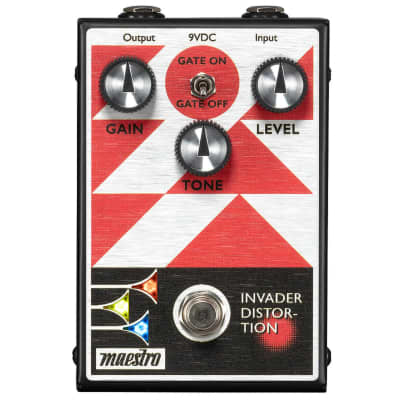

The Maestro Invader Distortion is a high-gain, all-analog modern distortion pedal with a heavy, aggressive, dominant sonic character and loads of rich harmonics. It offers a wide range of distorted sounds and features a 3-knob control layout for intuitive control over Gain (distortion amount), Tone, and output Level. The pedal also includes a built-in noise gate with a top panel toggle switch, and an internal trim pot allows users to adjust the level of the noise gate’s Threshold. The true bypass footswitch triggers LED lights in the bugles in the Maestro logo when the effect is active.

Key Specifications:
- Controls: Gain, Tone, Level; internal Noise Gate Threshold trim pot
- Switches: True Bypass footswitch, Gate On/Gate Off toggle switch
- LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
- Signal Processing: All-Analog
- Power Requirements: 9V battery or regulated 9VDC power supply (5.5 X 2.1mm plug, wired center-negative)
- Current Draw: 56.7 mA
- Power On Switch: Incorporated into the input jack
- Input Impedance: 100 kOhms
- Output Impedance: 100 Ohms
- Switching Type: True Bypass
- Dimensions: 5.04″ x 3.45″ x 2.5″ (128.0 mm x 87.6 mm x 63.5 mm)
- Weight: Net - 1.24 lb. (562.5 gm. ), Gross - 1.62 lb. (734.8 gm.)

The pedal is designed to provide guitarists with a versatile tool for creating a wide range of distorted tones and can be powered by a 9V battery or a regulated 9VDC power supply.
