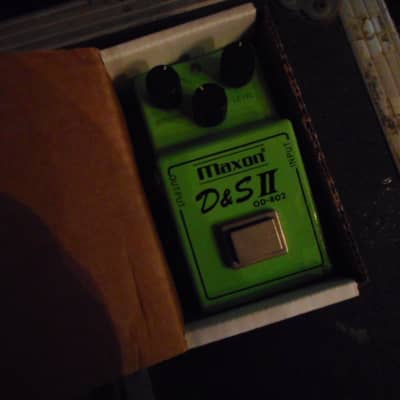

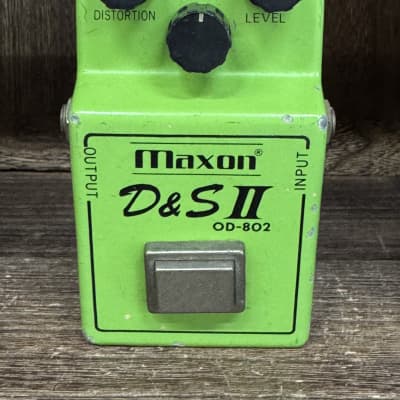

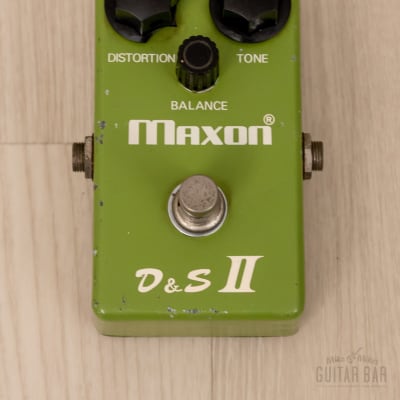

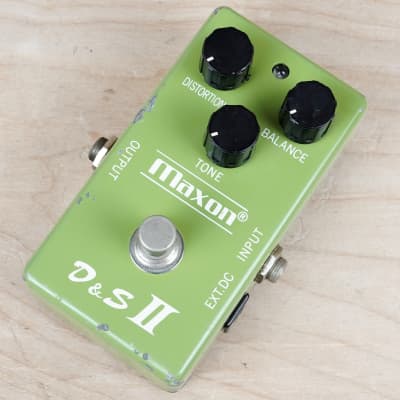

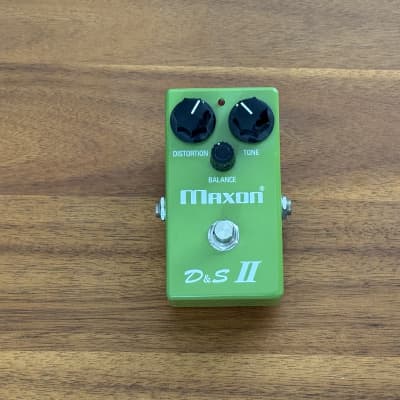

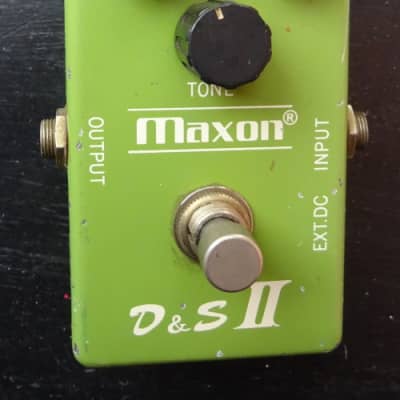

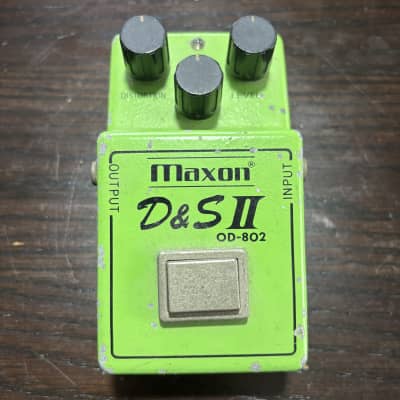

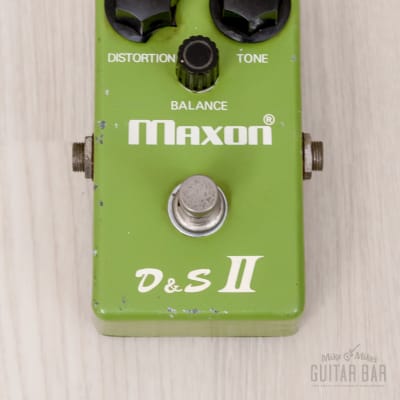

D&S II

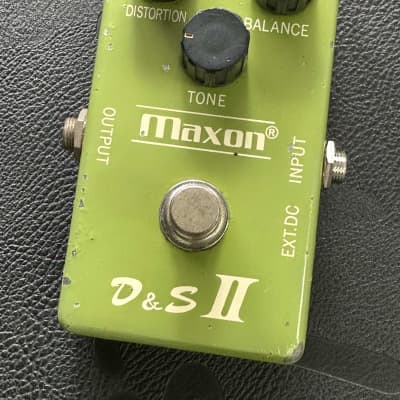

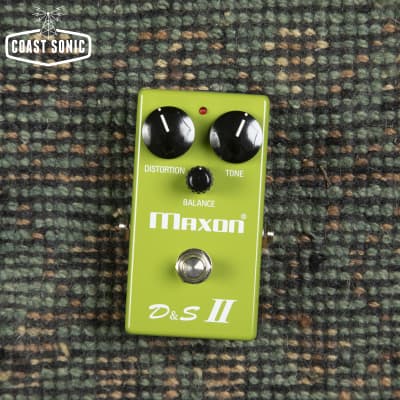

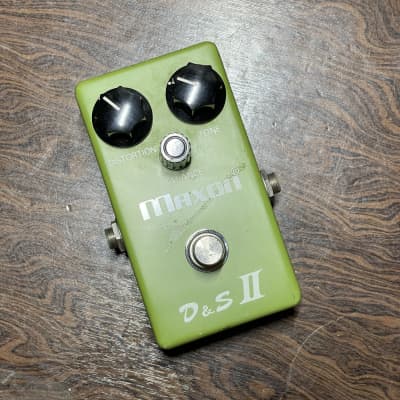

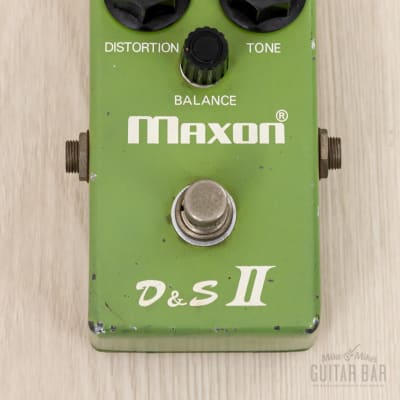

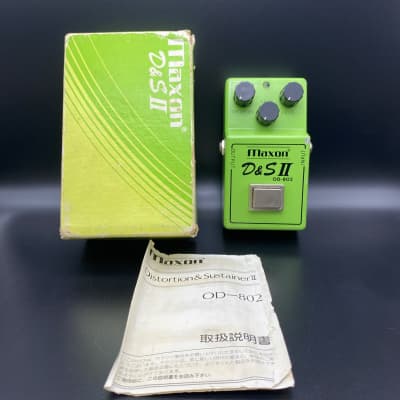

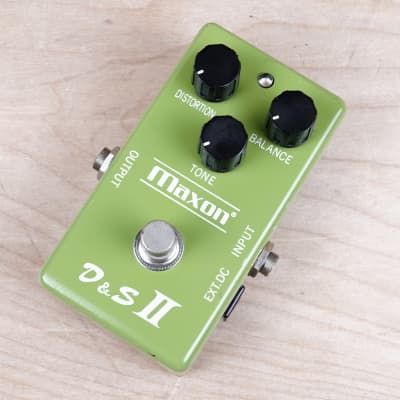

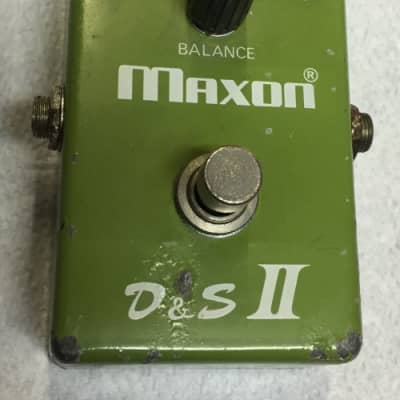

The Maxon D&S; II Distortion Sustainer pedal is designed with a dual op-amp configuration similar to the OD808, providing increased low-end, output, and gain. The pedal offers complete control over the distortion effect, ranging from subtle crunch to intense saturation, through its Distortion, Tone, and Balance knobs.

Technical Specifications:
- Input Impedance: 500K Ohms
- Input Jack: 1/4 inch standard phone jack
- Output Impedance: 10K Ohms
- Output Jack: 1/4 inch standard phone jack
- Controls: Distortion, Tone, Balance
- Switch: Normal/Effect
- Noise (IHF-A): -110 dBu
- Max Amplitude: 40 dBu
- Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
- Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
- Current Consumption: 6 mA (9V) / 7 mA (10 V)
- AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +
- Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
- Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
- Weight: 260 g
- Accessories: 9V Manganese dry cell battery (S-006P) x 1, Non-skid pad x 1, Warranty Card x 1, User's Manual x 1
