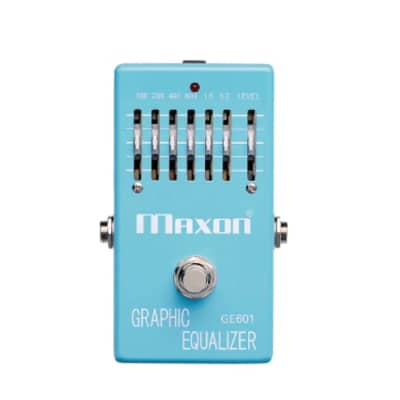

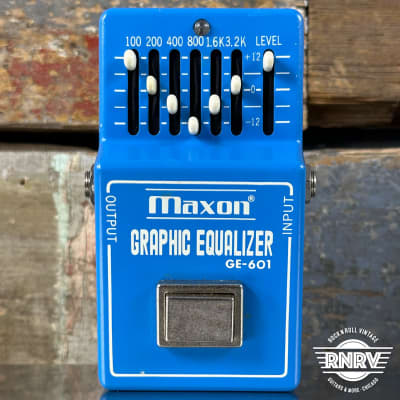

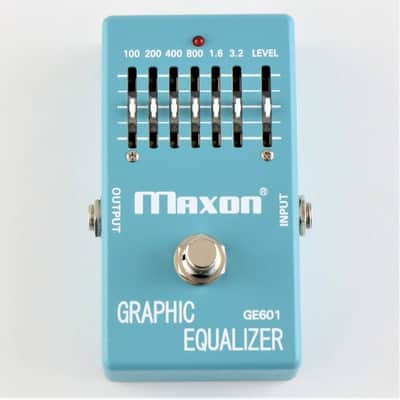

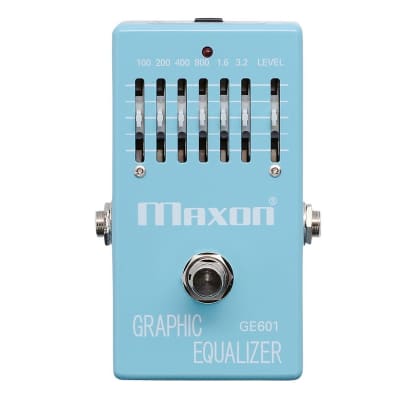

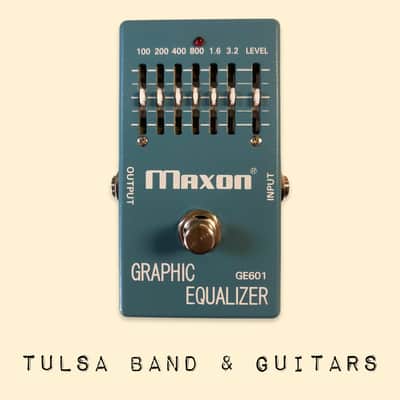

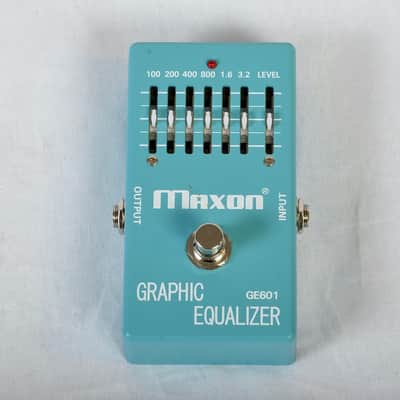

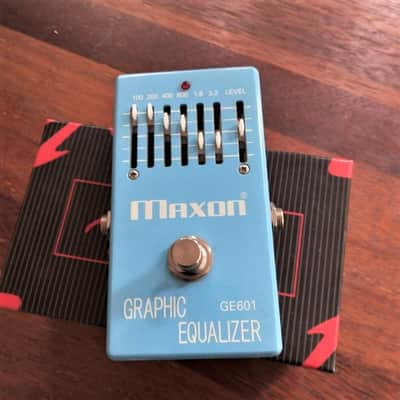

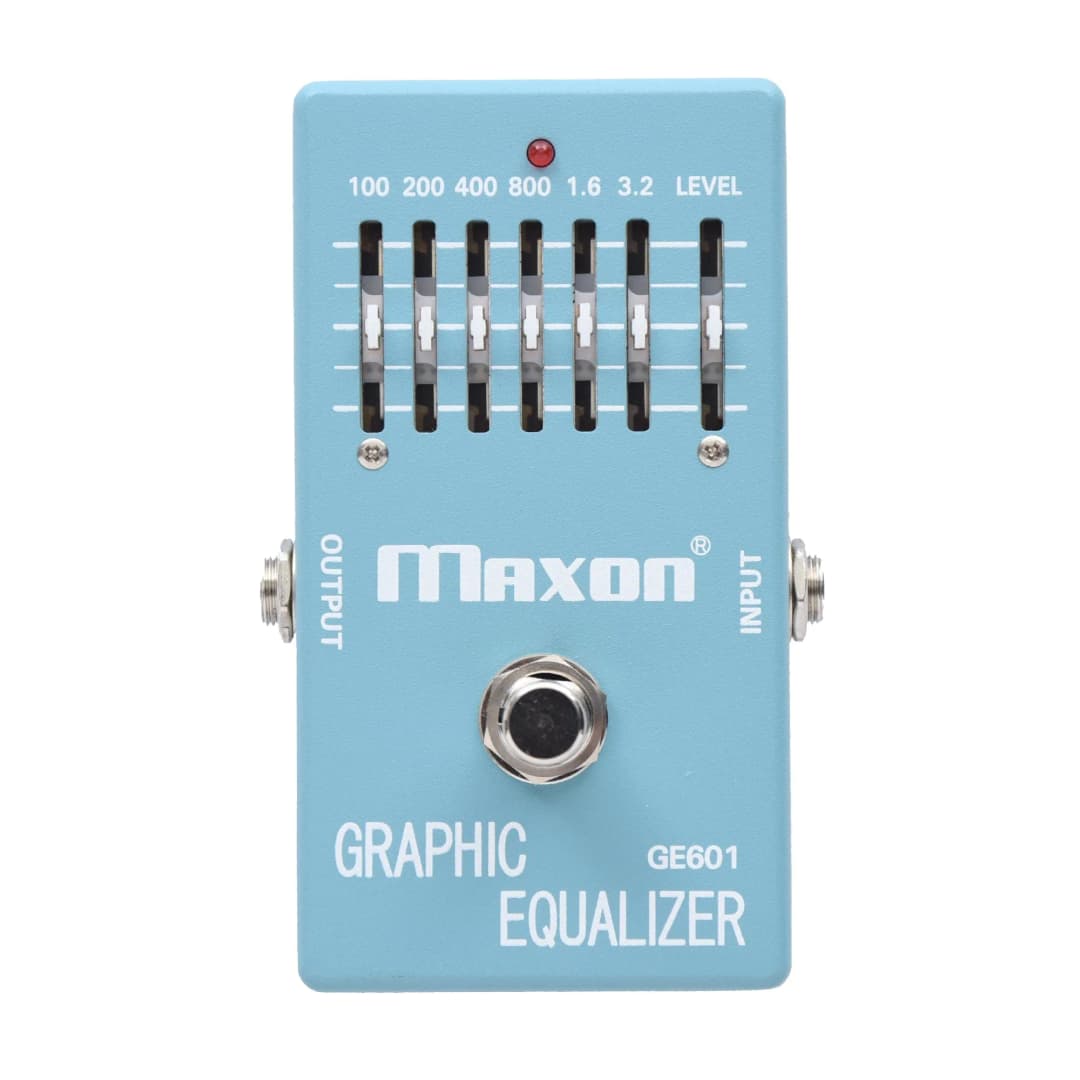

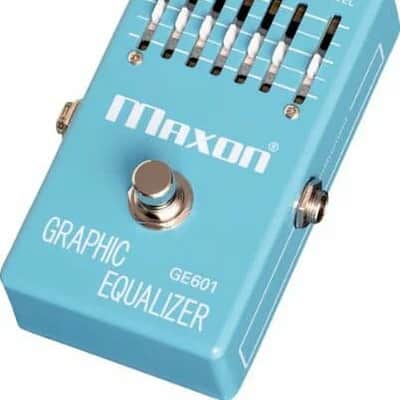

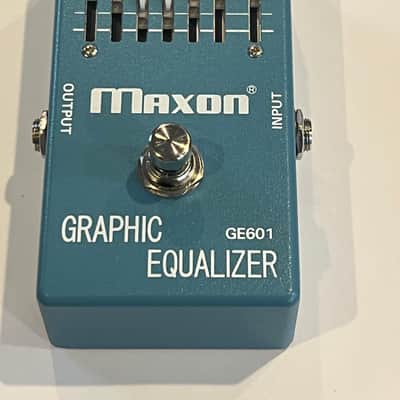

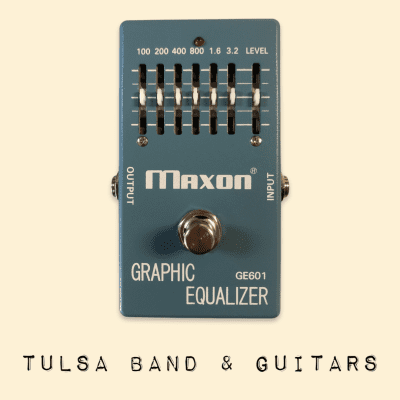

GE601 Graphic Equalizer

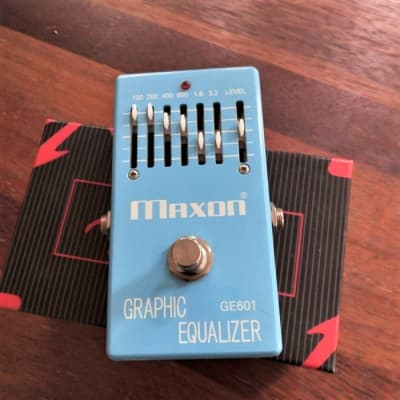

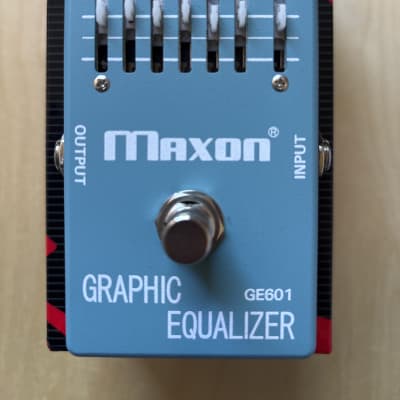

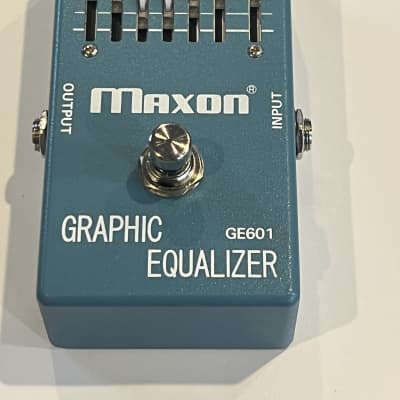

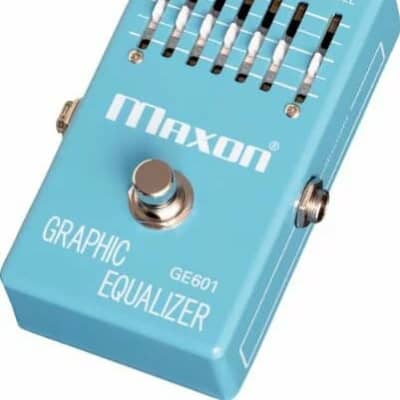

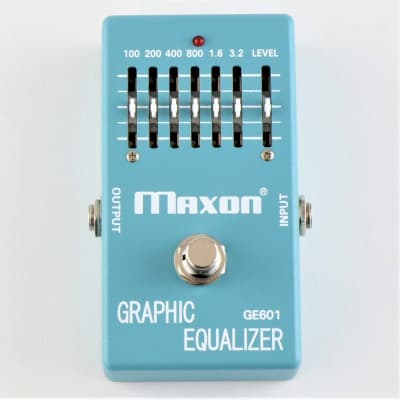

The Maxon GE601 Graphic Equalizer is a versatile pedal designed to provide precise control over the frequency spectrum. It covers six carefully selected frequency bands over a five-octave range with 12 dB of boost/cut per band. The frequency bands are 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 KHz, and 3.2 KHz. The pedal features a Master Level control with 12 dB of overall boost/cut.

The GE601 can be used in various scenarios, such as a pickup simulator for transforming a humbucker into a single coil, a clean booster for solos, or to emulate the tone of a wah pedal with the treadle set halfway forward. It can also be used to fine-tune the sound of electric guitars to simulate the bright, chiming sound of an acoustic guitar with a piezo pickup.

Technical specifications include an input impedance of 500K Ohms, an input jack of 1/4 inch standard phone jack, an output impedance of 10K Ohms, and an output jack of 1/4 inch standard phone jack. The pedal operates on a 9V Manganese dry cell battery or a special AC adaptor. It features buffered, JFET bypass switching with a low impedance output, allowing it to drive long cable lengths or other effect units without loss of signal.

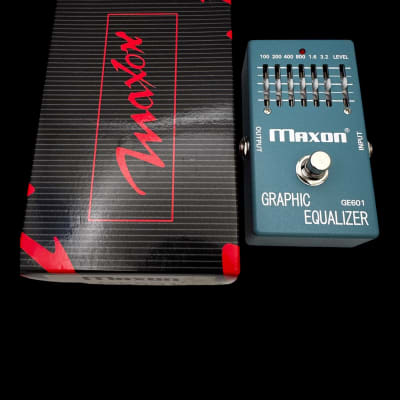

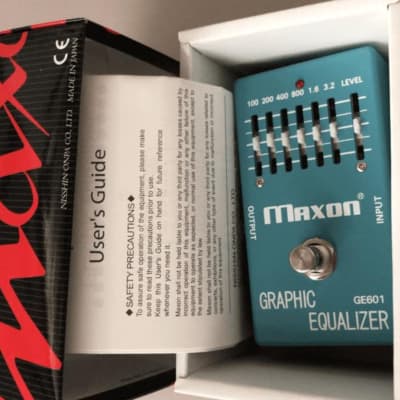

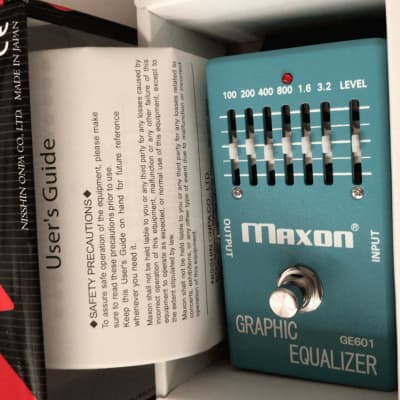

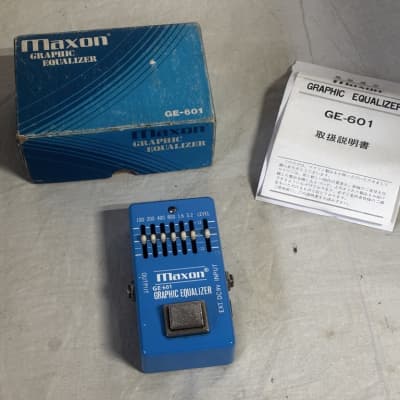

The dimensions of the main body are 61 mm (W) x 112 mm (D) x 35 mm (H), and the weight is 240 g. The package includes a 9V Manganese dry cell battery, a non-skid pad, a warranty card, and a user's manual.
