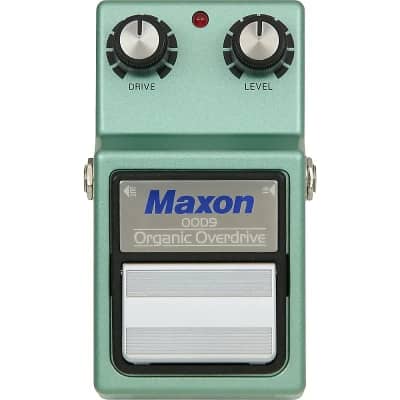

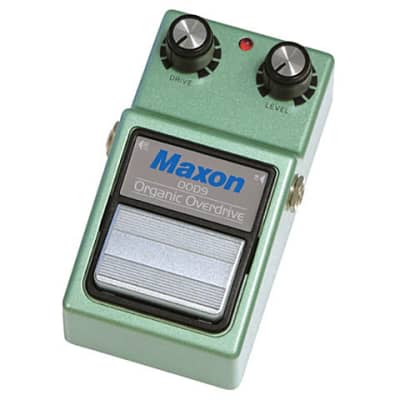

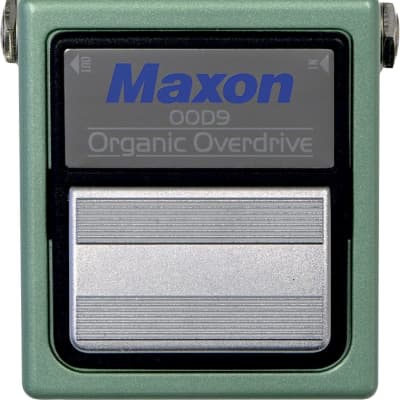

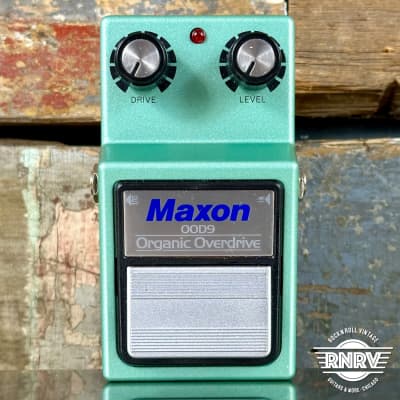

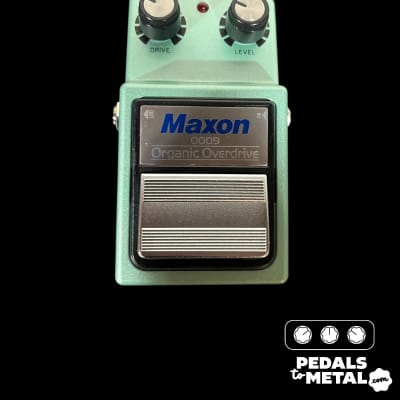

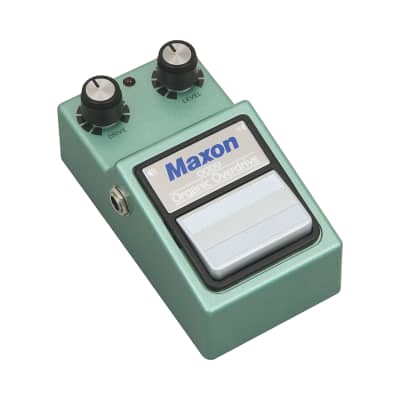

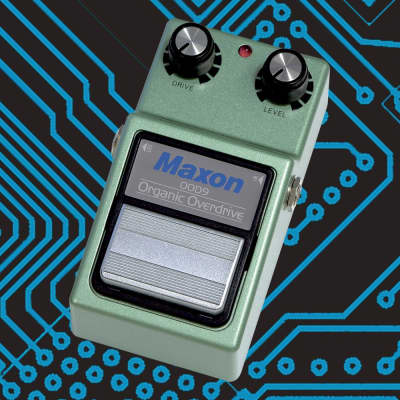

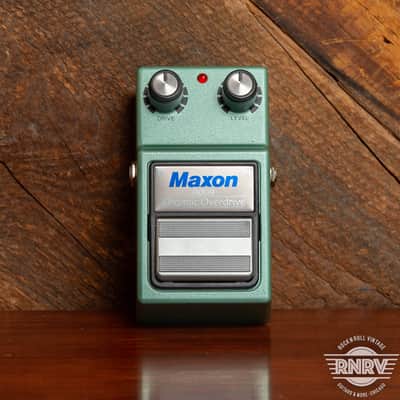

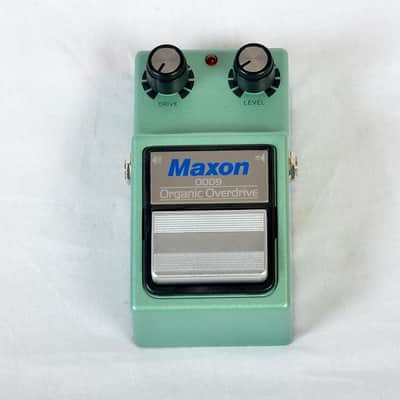

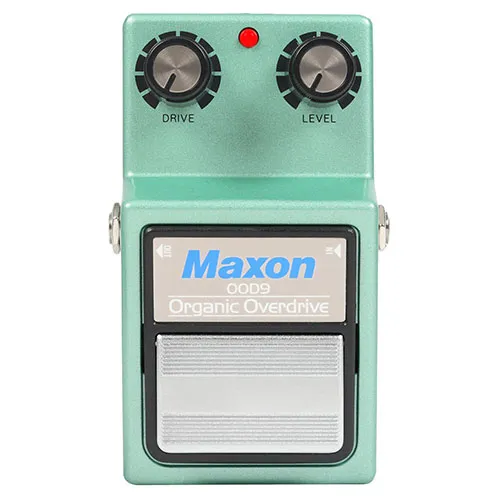

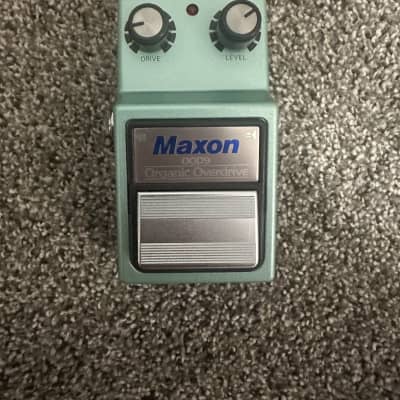

OOD-9 Organic Overdrive

The Maxon OOD-9 Organic Overdrive is an updated version of Maxon’s first Overdrive, the OD880, originally released in 1977. It is designed to provide low gain, dynamic overdrive similar to a tube amp and can be used as an amp booster. The pedal features NJM (JRC) 4558 Op Amps for a modern tone and regulated 9 VDC power. It offers true bypass switching for smooth, consistent performance.

Technical Specifications:
- Input Impedance: 500K Ohms
- Output Impedance: 10K Ohms or less
- Maximum Gain: 41.5dB (700Hz)
- Equivalent Input Noise: -107dB or less (IHF-A)
- Control: DRIVE, LEVEL
- Operating Voltage: 9V
- Power Consumption: 18mA/DC 9V, 18mA/DC 10V
- Dimensions: 74 (W) x 124 (D) x 54 (H) mm
- Weight: 580g (including battery)
- Battery: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
- Battery life: Manganese dry battery 10.5 hours 25°C / 77°F (Panasonic 6F22NB), Alkaline dry battery 23 hours 25°C / 77°F (Panasonic 6LR61G)

The OOD-9 utilizes a NJM2374A Voltage converter to stabilize the operating voltage at 9 VDC regardless of the voltage level coming off the battery, providing a smoother, more consistent operation and tonality. The pedal's signal path includes a 2SK246 jFET buffer, NJM4558 Op Amps, and a voltage converter for stable performance.
