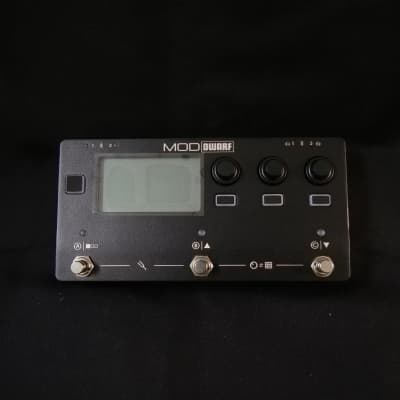

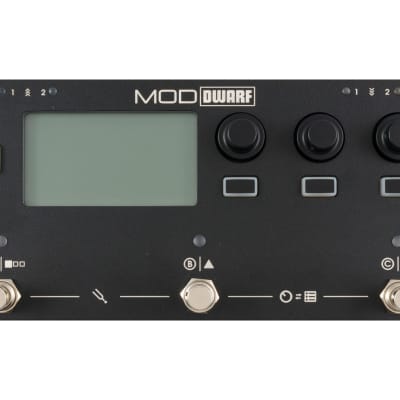

MOD Dwarf by MOD Devices

The MOD Dwarf by MOD Devices is a powerful audio processor pedal designed for a wide range of musical applications. Here are the technical specifications:

Dimensions:
- Length: 105 mm
- Width: 202 mm
- Height: 54 mm
- Weight: 800 grams

Processor:
- RockChip PX30 CPU
- CPU family: Cortex-A35
- Platform bit depth: 64 bit
- Cores Clock: 4 x (up to) 1.3 GHz
- Memory: 1 GB RAM
- Flash Storage: 8 GB

Inputs and Outputs:
Audio:
- 2x independent mono audio inputs with unbalanced asymmetrical TRS connection
- Input adjustment between -12dB and +35dB, adjustable in 0.5dB steps
- Input impedance 1 MΩ
- Cirrus Logic Audio Codec with 24 bit ADC
- 2x independent mono audio outputs with balanced symmetrical TRS connection
- Volume Control: 0dB to -127dB, adjustable in 0.5dB steps
- Cirrus Logic Audio Codec with 24 bit DAC
- Headphone output: 3.5mm TRS Stereo connection, 2x105mW @ 16 ohms, mirrors main output
- Digital volume control from -33dB to +12dB, adjustable in 3dB steps

MIDI:
- MIDI IN connector - 3.5mm TRS MIDI Type-A
- MIDI OUT connector - 3.5mm TRS MIDI Type-A

USB:
- USB Host
- Connector: Type-A
- Standard: USB 2.0
- Maximum output current: 500mA
- USB Device
- Connector: Type-B
- Standard: USB 2.0

Device Controller:
- 2.9" LCD display
- 3 endless knobs
- 3 push buttons (backlit with color LEDs)
- 1 menu button (backlit with color LEDs)
- 3 footswitches with colored indicator LEDs

Software:
- The MOD Dwarf runs the latest Operating System. Support for the MOD Dwarf was added to the MOD OS on version 1.10.

The MOD Dwarf is a versatile and open-ended DSP platform suitable for guitarists, bassists, keyboardists, and other musicians looking to expand their sonic capabilities. With its powerful processing capabilities and extensive connectivity options, the MOD Dwarf offers a wide range of use- cases, from live performance to studio recording and everything in between.
