M299 Carbon Copy Mini

The MXR M299 Carbon Copy Mini Analog Delay pedal is a compact analog delay pedal that offers organic analog warmth, shimmery modulation, and ease of use in a mini housing. The pedal features a Bright switch for additional sonic versatility, allowing users to accentuate high-end frequencies for increased presence and distinctively vocal repeats. The modulation section of the pedal provides the option to add tape echo warble to shimmery, liquefied chorusing to the repeats.

Technical Specifications:
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Max Input Level: +5 dBV, 500 Hz
- Max Output Level: +8 dBV
- Noise Floor:
- Mix at Max CW: -96 dBV
- Mix at Max CCW: -104 dBV
- Delay Distortion: <1%, 1 kHz -5 dBV Input
- Delay Time: 20 ms to 600 ms
- Noise Reduction: 2:1 ratio
- Modulation Speed: 0.2 Hz to 2.2 Hz
- Bypass: True Hardwire
- Current Draw: 26 mA
- Power Supply: 9 volts DC

The Carbon Copy Mini Analog Delay is powered by the Dunlop ECB003 9-volt adapter or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies. It cannot be powered by a battery.

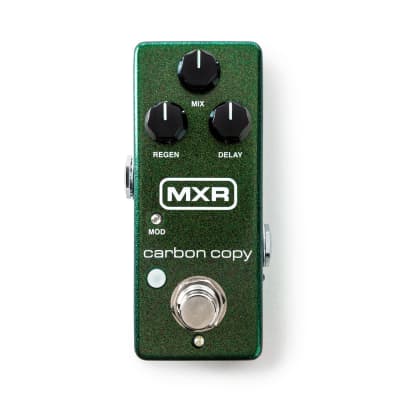

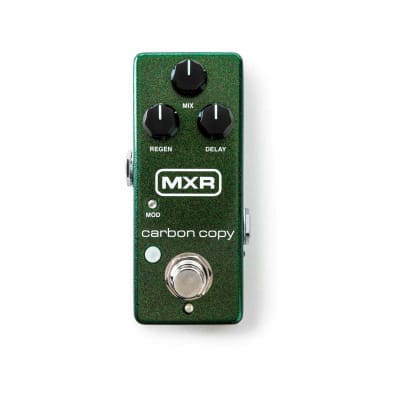

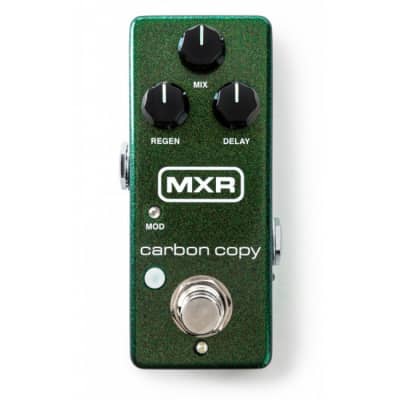

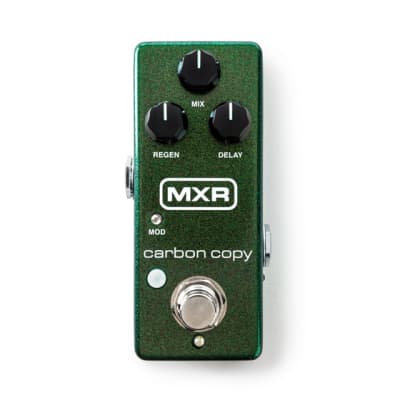

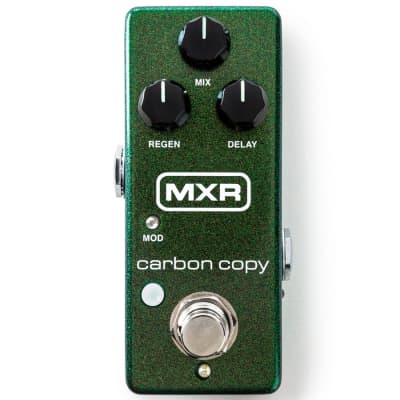

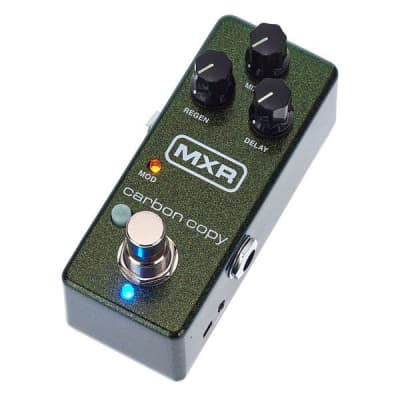

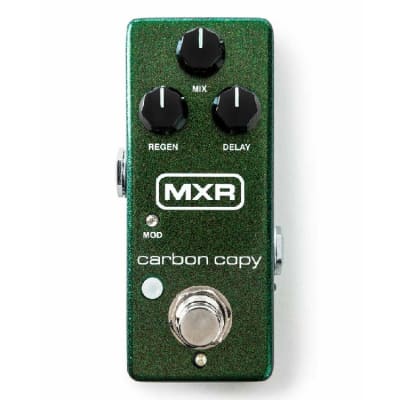

The pedal features external controls for MOD switch (toggles modulation on/off), REGEN knob (sets the number of repeats), MIX knob (controls the blend of wet and dry signals), DELAY knob (sets the time between repeats), and BRIGHT switch (accentuates delay signal's high-end frequencies).

The MXR M299 Carbon Copy Mini Analog Delay pedal is designed to offer a versatile and compact solution for delay effects, suitable for a wide range of musical applications and pedalboard setups.
