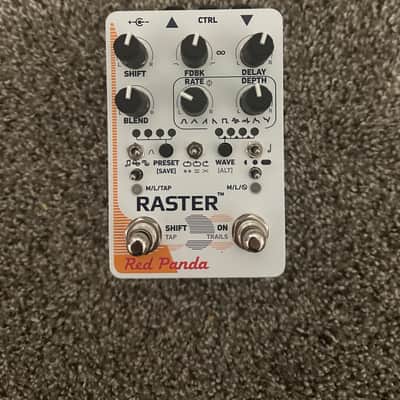

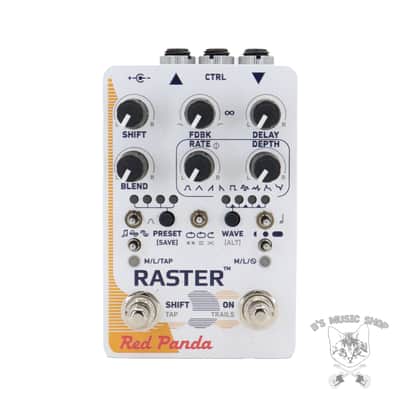

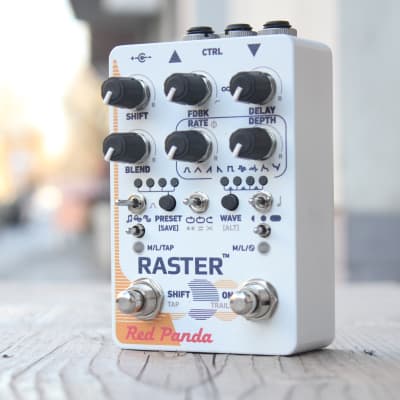

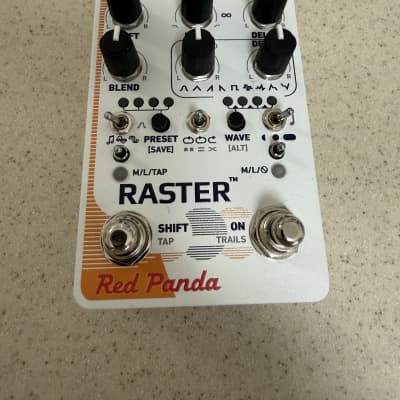

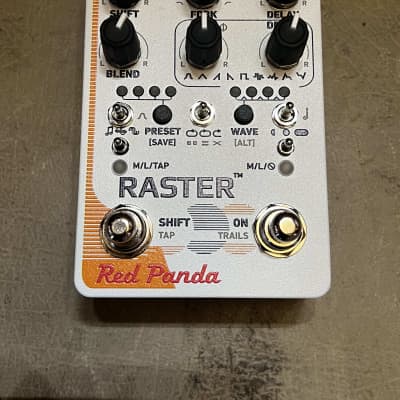

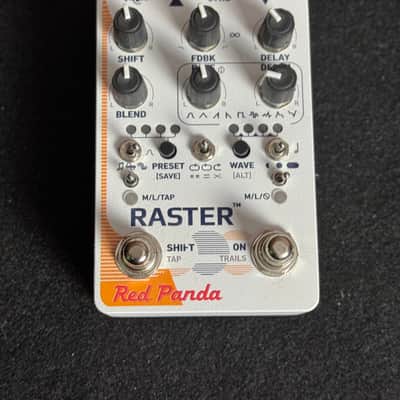

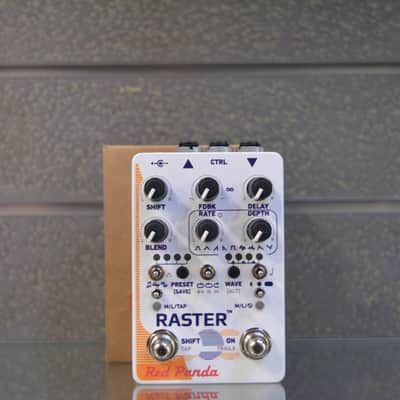

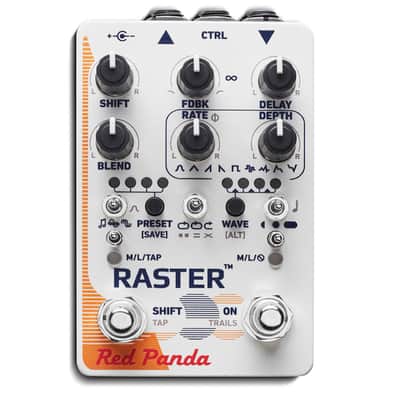

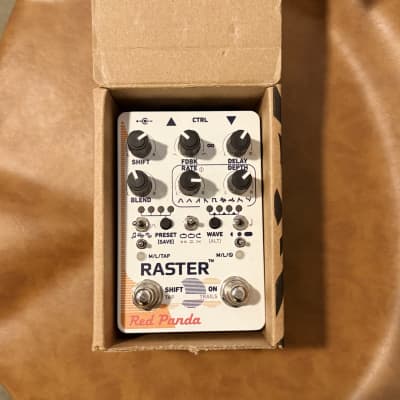

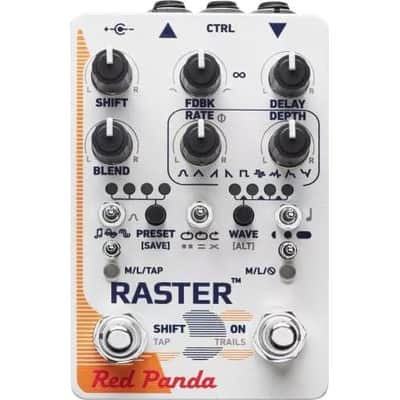

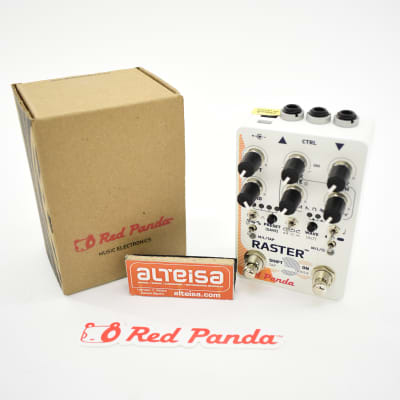

Raster

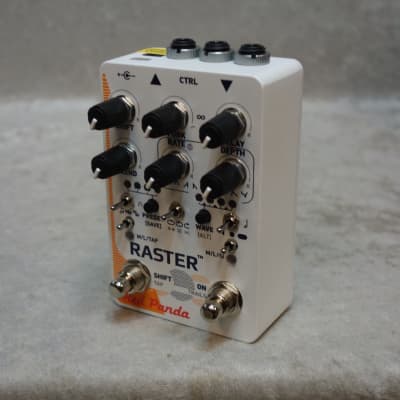

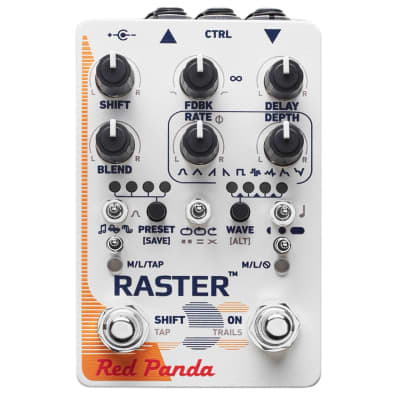

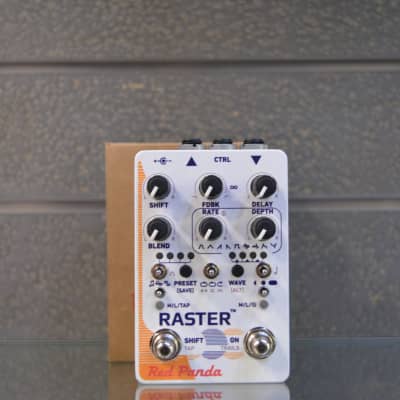

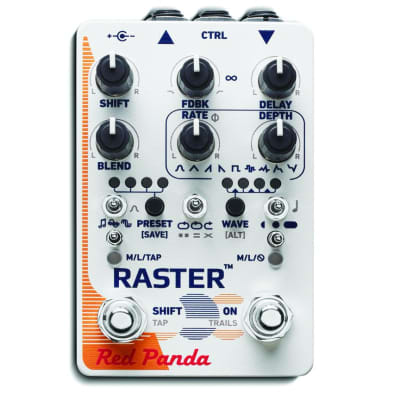

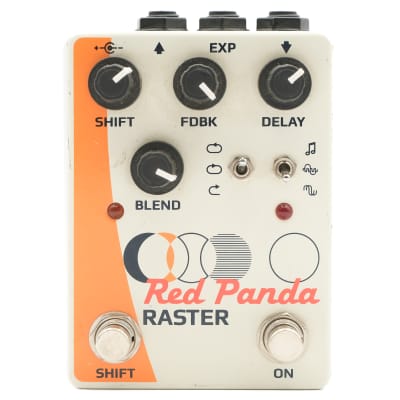

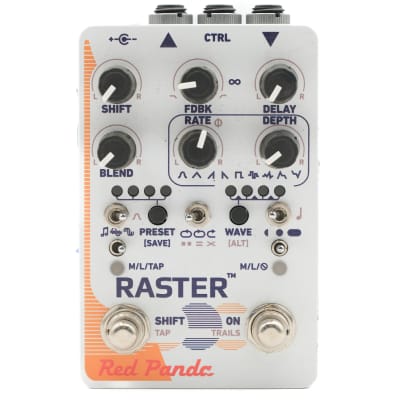

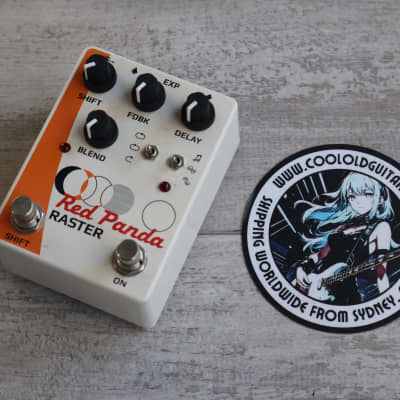

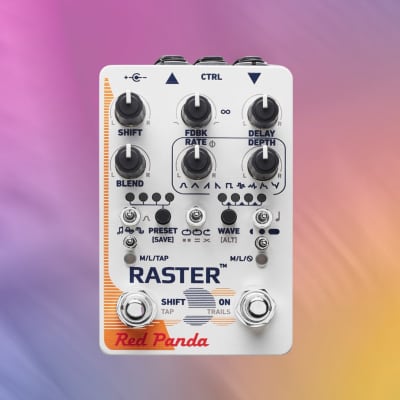

The Raster by Red Panda is a digital delay pedal with a pitch and frequency shifter integrated into the feedback loop. It offers a wide range of sounds, including modulated and harmonized delays, reverse delays, chorus, arpeggios, infinite descents, chaotic self-oscillation, and continuously evolving soundscapes.

Key Features:
- 1600 ms stereo delay time in three ranges
- Micro pitch shifting and detuning
- Tuned pitch shifting, +/- 12 semitones
- Phase and frequency shifting
- Repeats shifted once or continuously
- Reverse delay
- 7 modulation waveforms, envelope, and reverse envelope
- Modulation assignable to delay, pitch, or amplitude
- Most parameters have left/right controls for stereo delay
- Parallel, series, or ping pong structure
- Tone control
- Stereo input/output (TRS)
- Soft touch bypass switch with selectable momentary, latching, or mute output
- Shift footswitch momentary, latching, or assignable to tap tempo
- Assignable expression pedal, remote switch, remote tap, or MIDI port
- Full MIDI implementation with additional parameters (USB or TRS)
- MIDI clock synchronization
- Presets (4 on front, 127 via MIDI)
- Web-based editor for editing presets and accessing hidden parameters
- Designed and assembled in the USA

Technical Specifications:
- Size: 3.05" x 4.75" x 2.5"
- Input impedance: 1 MΩ
- Output impedance: < 1 kΩ
- Bypass: analog buffered
- Power: 9 VDC, center negative
- Current: 250 mA

The Raster 2 is designed to provide classic rack mount digital delay tricks while maintaining fast and intuitive control. It offers extensive stereo functionality and flexible modulation, with all parameters always available for mixing and matching different effects.
