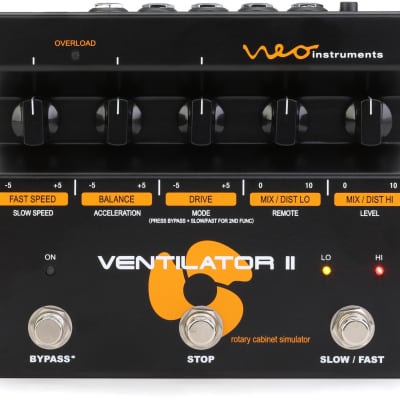

Ventilator II

The Neo Instruments Ventilator II Rotary Speaker Simulator Pedal is a versatile and powerful emulation device designed to replicate the iconic rotary speaker sound of the model 122 Leslie. It offers the following technical specifications and features:

- Signal processing: 32 Bit SHARC DSP
- Analog Digital Conversion: 48kHz, 24 Bit
- Digital Analog Conversion: 48kHz, 24 Bit
- Noise Level: -80 dBA
- Input Sensitivity: -10 dBV (Hi), 0 dBV (Lo)
- Input Impedance: 1MOhm
- Output Level: +6 dBV
- Output Impedance: 100 Ohms
- Recommended Load Impedance: 10 KOhms or more
- Weight: 1.1kg / 2lbs 6oz (without Power Supply)
- Dimensions (W x D x H): 100x 105x 55mm
- Mains Voltage: 100-240V, 47Hz-63Hz
- Current Draw: 200mA
- Connections: Input Mono, Output L, Output R, DC In
- Faithful replication of the model 122 Leslie’s rotary effect
- Independent emulations of bass and treble rotors
- Rugged sheet metal chassis and recessed knobs
- Speaker simulation emulating the 122’s frequency response
- Same 800Hz crossover as the original
- Adjustable rotary speed and acceleration
- Drive section that simulates tube saturation in the Leslie’s amp
- Variable placement of virtual microphones
- Relay-equipped true bypass circuit
- Speaker simulation may be switched off for guitar amps

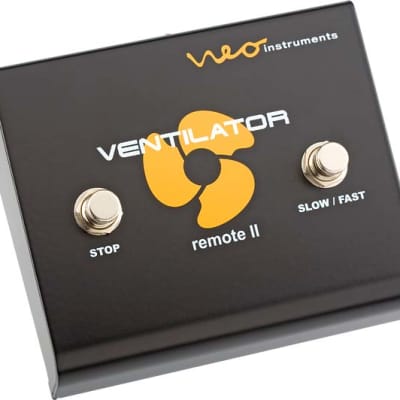

- Port for a remote footswitch / half-moon switch / expression pedal
- Simple, straightforward analog handling
- Controls: Bypass, Slow / Fast, Stop, Lo / Hi Input Gain select
- Parameters: Fast Speed, Slow Speed, Balance, Acceleration, Drive, Mode (Git1, Git2, Key), Mix / Distance Lo, Mix / Distance Hi, Level, Remote select (Switch, Pedal Speed, Pedal Mix)

The Ventilator II is suitable for use with organ, keys, guitar, and bass, and its compact and rugged enclosure makes it ideal for both stage and studio applications. It offers a wide range of editable parameters for customizing the sound, and its high-quality components ensure clean and authentic sound reproduction.

The pedal also includes a 12-volt universal power supply with 4 adaptors for global use. With its comprehensive features and precise emulation capabilities, the Ventilator II is a top choice for musicians seeking the classic rotary speaker sound in a convenient and reliable pedal format.
