Air Space Invader 2

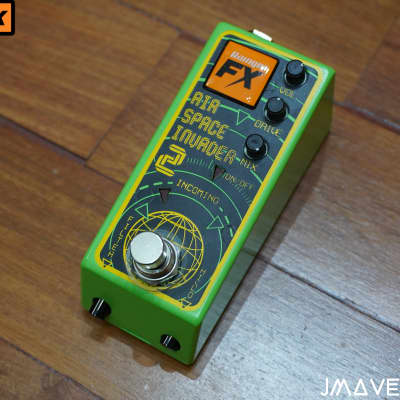

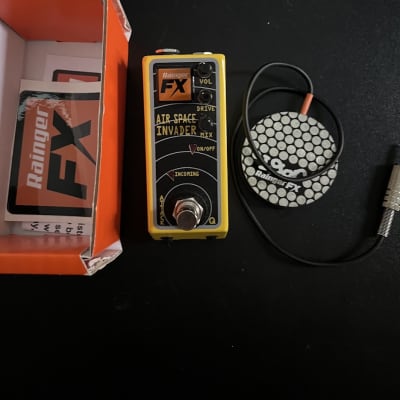

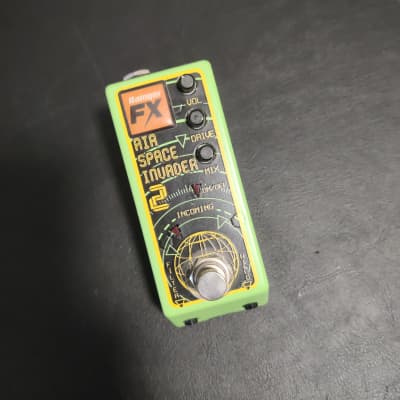

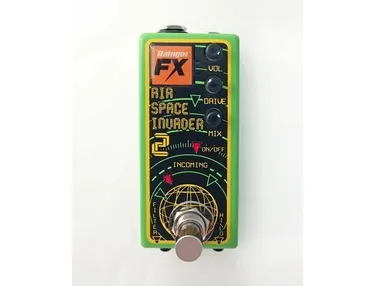

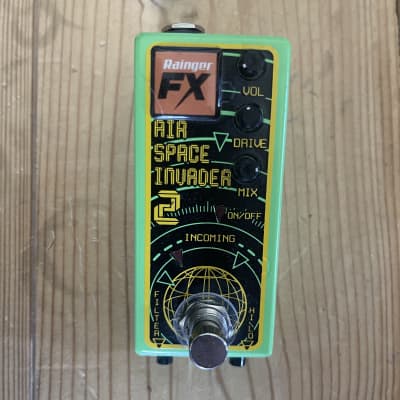

The Air Space Invader 2 by Rainger FX is a unique effects pedal designed with specific technical specifications and features. Here are the details:

- The pedal features true bypass switching for seamless integration into pedalboard setups.
- It is housed in a custom mini enclosure, providing a compact and durable design suitable for various performance settings.
- Power specifications: The pedal operates on a 9VDC center negative power supply unit (PSU), which is not included with the pedal.

User Manual Details:
- The Air Space Invader 2 is equipped with a Rainger FX optimum distortion circuit, mixable with white noise.
- The pedal offers a simpler version of the Rainger FX Air Traffic Controller pedal, with the added capability of providing either an overdrive fuzz (balanced with plenty of mids, no filter) or synthy electro tones.

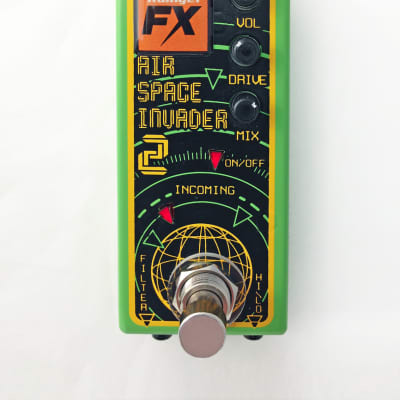

Controls:
- VOL: Determines the output volume.
- DRIVE: Controls the amount of distortion on the guitar signal.
- MIX: Adjusts the mix of white noise with the guitar signal.

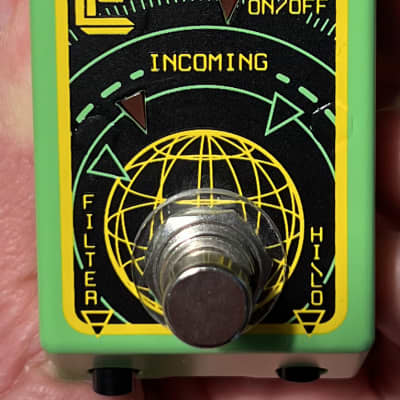

- FILTER switch: Activates the low-pass filter.
- Hi/Lo switch: Adjusts the resonance of the low-pass filter, with high resonance making the cutoff frequency more noticeable.
- DC in: Connects the standard 9V pedal PSU (center earth) for power supply.
- LEDs: Indicate the status of the pedal (ON/OFF) and the presence of a signal (INCOMING).

Sounds:
- The pedal offers full round filter action by adjusting the drive knob and adding more white noise to the mix pot.
- The mix knob settings provide a nice compression on the guitar signal, enhancing playability.

Low-Pass Filter:
- The activated low-pass filter acts as a noise gate when there's no signal, ensuring minimal noise interference.

Additional Information:
- The pedal allows users to adjust the threshold of the filter by modifying the guitar's volume.
- For further inquiries, users are encouraged to contact the manufacturer via email at david@raingerfx.com.
