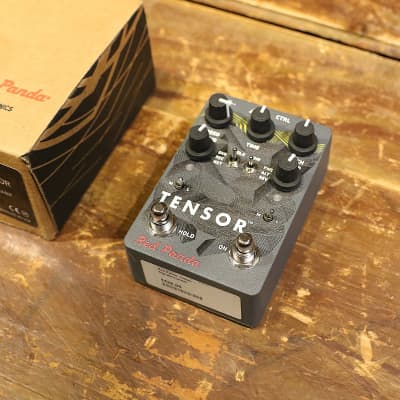

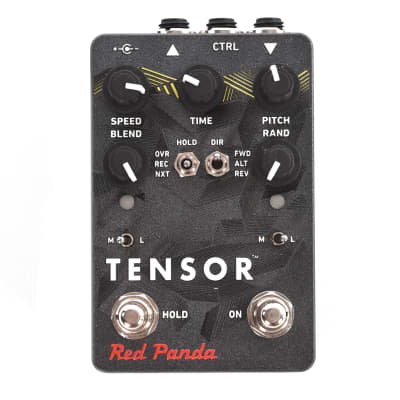

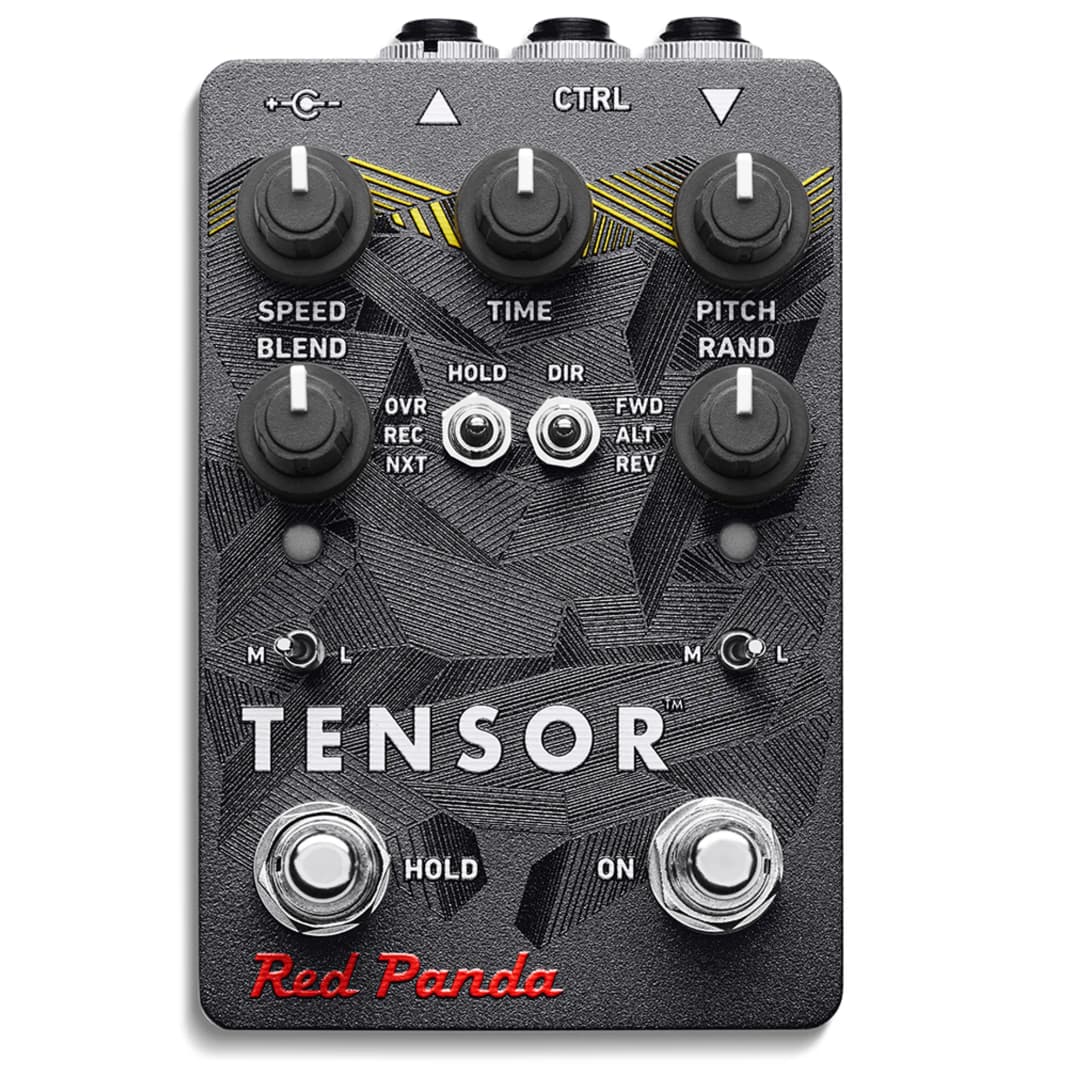

Tensor

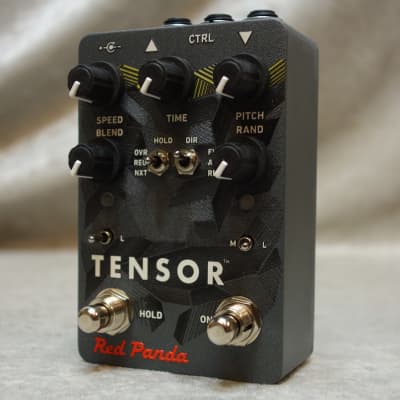

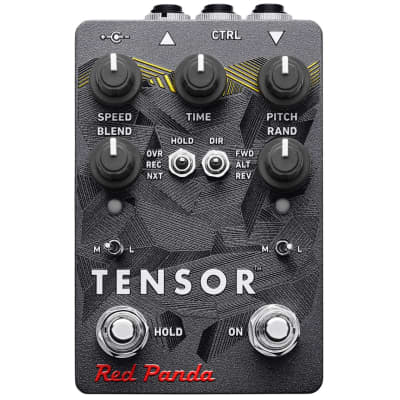

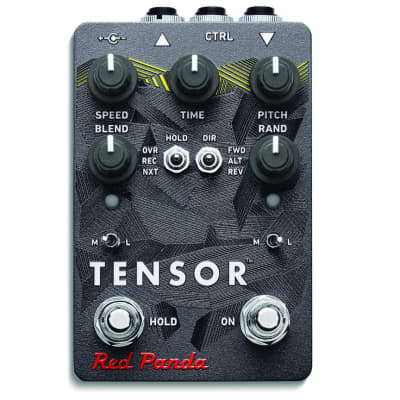

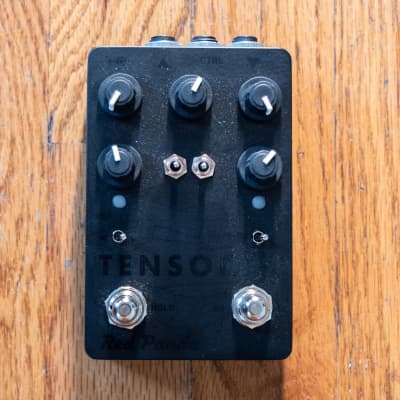

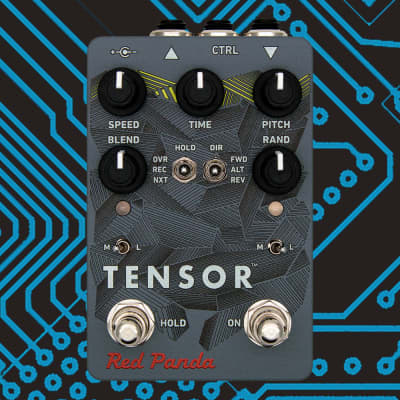

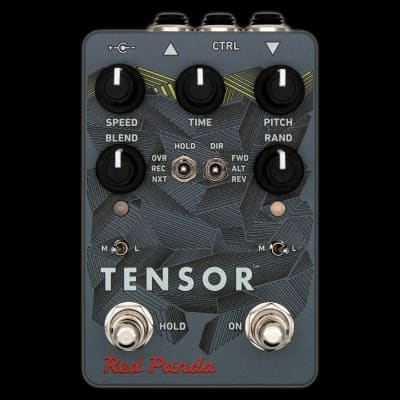

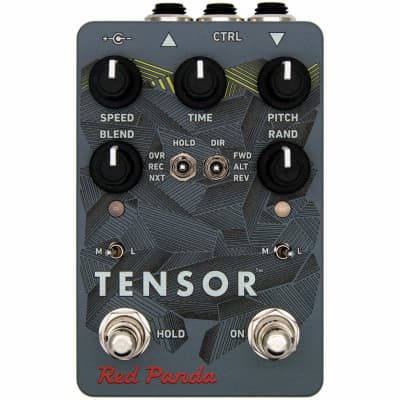

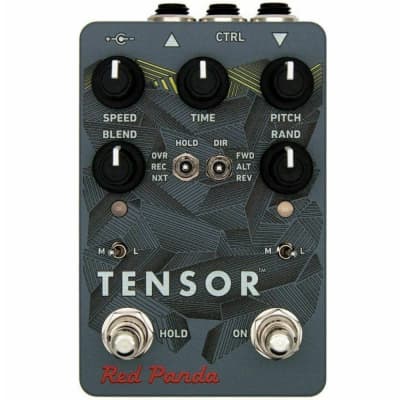

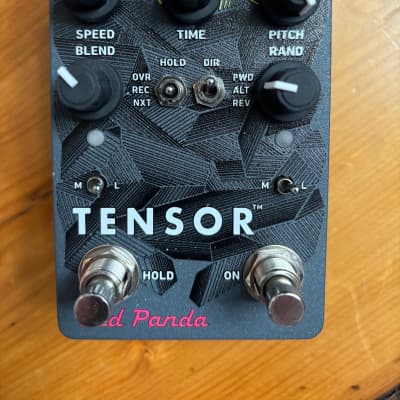

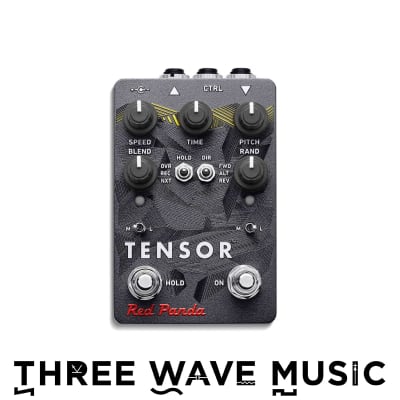

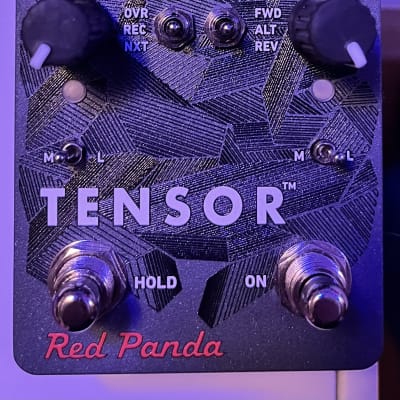

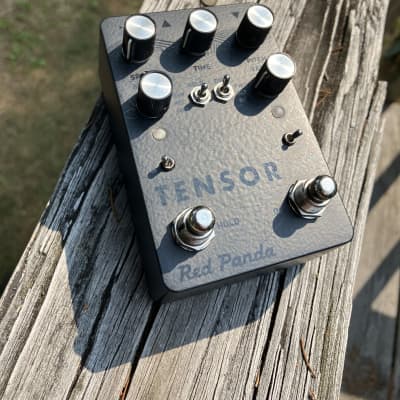

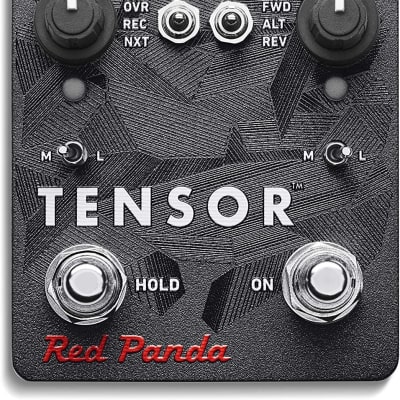

The Tensor by Red Panda is a versatile pedal designed for live reverse and tape stop effects, pitch shifting, time stretching, and hold functions. It offers the following technical specifications:

- Size: 3.05" x 4.75" x 2.5"
- Input Impedance: 1 MΩ
- Output Impedance: < 1 kΩ
- Bypass: Analog buffered
- Power: 9V DC, center negative
- Current: 250 mA
- Maximum Input Level: +5.5 dBu (adjustable to +8 dBu)
- Stereo Input/Output (TRS)
- MIDI (USB and TRS) connectivity
- Web-based editor for editing presets and accessing hidden parameters

Features:
- Tape speed from reverse to stop to forward
- Real-time time stretch up to 4:1
- Loop time compression and stretch from 1:4 to 4:1
- Pitch shift from -2 to +2 octaves in fixed intervals
- Intelligent randomization
- Overdub, replace, and dual buffer (next) loop modes
- Forward/alternate/reverse loop direction
- Additional looping functions via remote switch or MIDI
- Momentary or latching foot switches
- Always listening - instantly jump from bypass to reverse
- Assignable expression pedal, remote switch, remote tap, or MIDI port

The pedal is designed and assembled in Detroit, USA and requires a 9V DC 250 mA power supply (not included).
