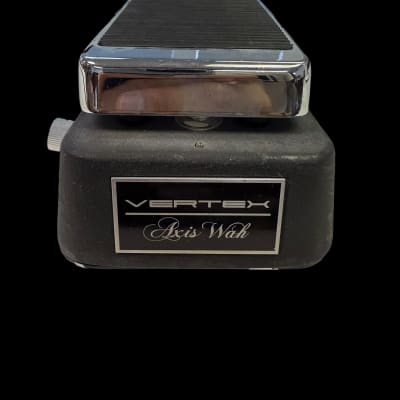

Axis Wah

The Vertex Axis Wah is a vintage-style wah pedal designed to replicate the vocal characteristics of wah pedals from the 1960s. It features a custom hand- wound HALO inductor and hand-picked NOS (New Old Stock) components, giving it a distinctive voice.

Specifications:
- Control Knob: Body (adjusts the thickness of the wah voice)
- Connections: Input, output, DC input
- Input Impedance: 150K ohm
- Output Impedance: 25K ohm
- Power Connector: 2.1mm barrel (center negative)
- Operational Voltage: 7-10V (nominal 9V)
- Current Consumption: 5 mA
- Bypass: True bypass (hard latching footswitch)
- Dimensions: 10" x 4" x 2.5"
- Weight: 3.92 lbs

Additional Features:
- True bypass with status LED
- Body control for adjusting single-coil or humbucking pickups
- Unity gain with no volume drop
- Handcrafted in California with NOS components

The Axis Wah is suitable for guitarists seeking to achieve the classic vocal- like characteristics of vintage wah pedals, and it offers flexibility in adjusting the thickness of the wah voice and compatibility with different types of pickups.
