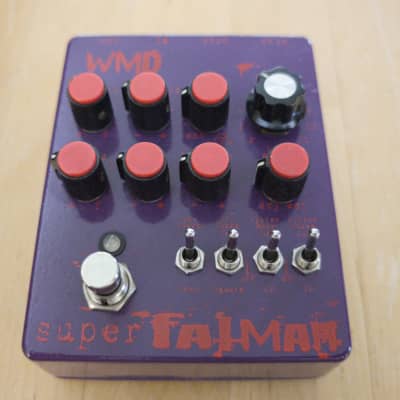

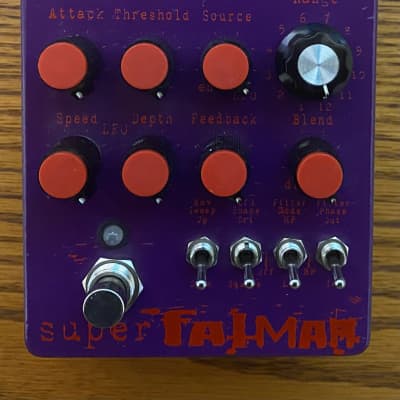

Super Fatman

The WMD Super Fatman is an envelope filter pedal designed with advanced features for filter enthusiasts. It boasts the following technical specifications and features:

- Construction: Milled die-cast aluminum with anodized purple finish and bright red epoxy paint
- Power: Standard 9V power jack, 400mA recommended supply, internal bipolar 12V power supply
- Analog Circuitry: Offers a fat and warm pure analog circuit with 12 filter frequency ranges
- Filter Modes: Low Pass (LP), Band Pass (BP), High Pass (HP)
- Controls: Intuitive and effective controls for sculpting filter sounds, including Attack, Threshold, Sweep Up/Down, LFO Speed, LFO Depth, LFO Shape, Range, Feedback, Blend (Wet/Dry), Filter Phase, Bypass, and Internal Gain
- LFO: Features a .07 to 8 Hz Tri/Square LFO with adjustable speed and depth
- Expression Pedal Input: Allows the use of a standard expression pedal (stereo plug) to control the filter position or blend it with the envelope and LFO
- CV Input: Supports 0-5 volt CV sources and provides power to the expression pedal
- RGB LED: Provides visual feedback on the pedal's operation, indicating the speed and mode of the LFO as well as the filter activity
- Use Cases: Suitable for guitar and other musical applications, offering a wide range of filter sounds with versatile control options
- Dimensions: Approximately 89mm wide, 114mm high
- No information available on current draw

The Super Fatman is designed to withstand the rigors of the road and utilizes high-quality components, including the latest surface mount technologies to reduce noise and interference.
