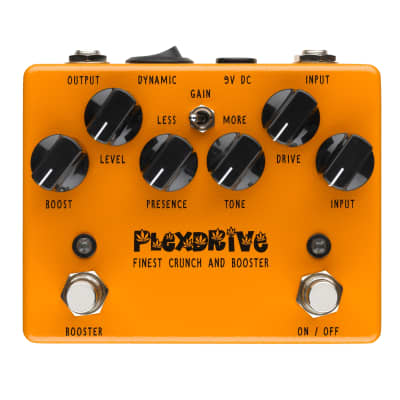

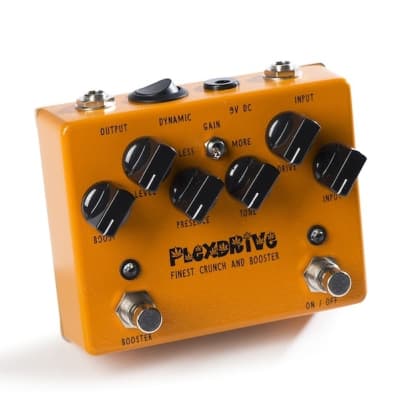

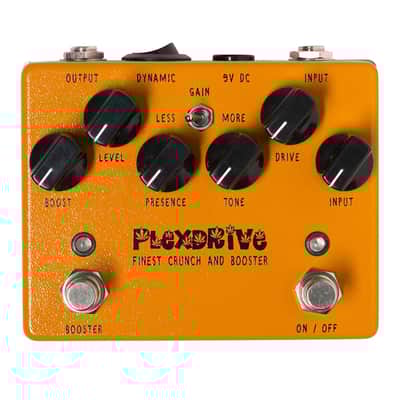

Plexdrive

The Plexdrive by Weehbo is a low gain overdrive pedal designed to deliver a highly transparent and dynamic sound reminiscent of the legendary Plexi amplifier. It offers the ability to achieve two different amounts of distortion with the GAIN-switch, with the maximum reachable amount of distortion comparable to a Plexi with all knobs on ten. This allows users to attain the famous Plexi sound and feeling at low volumes.

Key Features:
- INPUT: Controls the input impedance and amount of bass
- DRIVE: Controls the amount of distortion, providing a low gain overdrive
- TONE, PRESENCE: High cut, controls the mid response
- LEVEL: Controls the overall volume
- BOOST: Controls the booster's volume
- GAIN: Sets the maximum gain, toggle between LESS and MORE
- DYNAMIC: Internal supply voltage: 9V (left), 18V (right)
- BOOSTER: Activates the booster

Technical Characteristics:
- Supply Voltage: 9V DC
- Current Draw: 11mA (23mA @ 18V)
- Controls: Input, Drive, Tone, Presence, Level, Boost
- Switches: On/Off (True Bypass), Booster (True Bypass), Gain, Dynamic
- Jacks: Input, Output, 9V DC
- Indicator: LEDs 5mm red, ultrabright
- Dimensions: Approximately 120 x 95 x 55 mm
- Weight: Approximately 360 g

The booster provides a significant volume boost, adding some dirt and compression to the signal at higher settings. Users can shape their own tone by adjusting the INPUT, TONE, and PRESENCE knobs, not only affecting the sound but also the overall amount of distortion of the Plexdrive.

The Plexdrive by Weehbo is suitable for guitarists seeking a versatile overdrive pedal with a wide dynamic range and the ability to achieve the classic Plexi sound at lower volumes.
