Quaverato

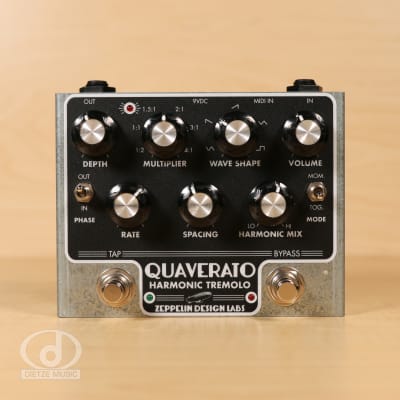

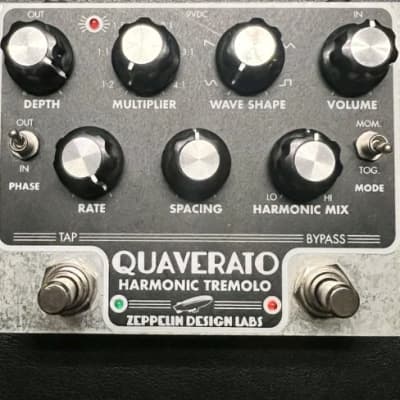

The Quaverato Harmonic Tremolo Pedal by Zeppelin Design Labs is a feature- rich, digitally controlled, all-analog signal path pedal that offers maximum flexibility and great tone. Here are the technical specifications and features:

- Finish: Galvanized steel
- Dimensions: 5″ x 4-3/16″ x 2″ (12.5 x 10.5 x 5 cm) (W x D x H)
- Weight: 21.5 oz = 1.34 lb (600 g)
- Power requirement: 9V DC center-negative

Key Features:
- Both Traditional (In-Phase) and Harmonic (Out-Of-Phase) Tremolo modes
- Up to 15dB of gain
- Modulates the high and low frequencies independently for dynamic swirling effects
- Extra internal controls allow for custom crossover frequency selection and individual HIGH and LOW signal path volume adjustment, for full tonal control
- Bypass footswitch can be used as either a toggle or momentary switch
- LFO wave shape, rate, depth, and spacing (aka wave form shift or duty cycle)
- Tap Tempo footswitch and multiplier selection
- Relay controlled, true-bypass switching with click suppression for quiet switching
- Full MIDI implementation for remote control over every feature

The pedal is available as a DIY kit or pre-made, and it offers full MIDI implementation as an option. It is designed and manufactured in Chicago, USA.

For a complete discussion of the Quaverato's features and controls, the Quaverato Owner's Manual is available from the manufacturer's website.
