Exciter Big Bottom

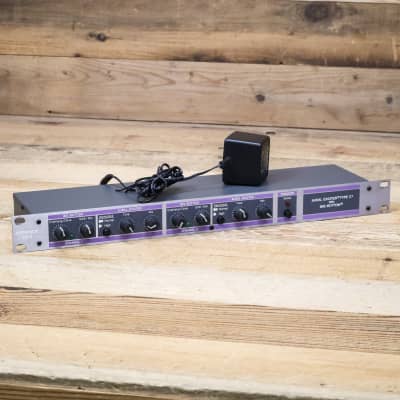

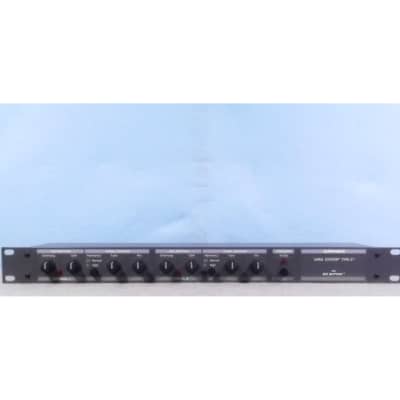

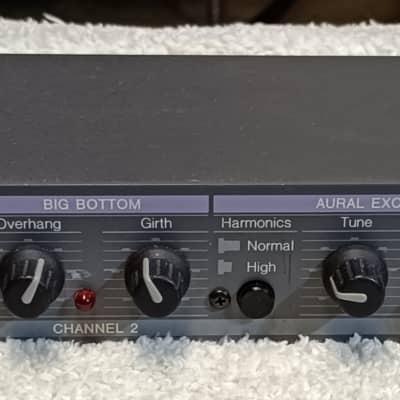

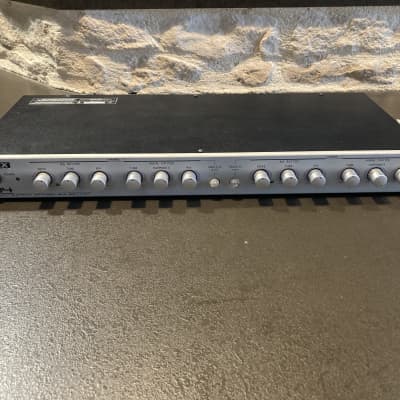

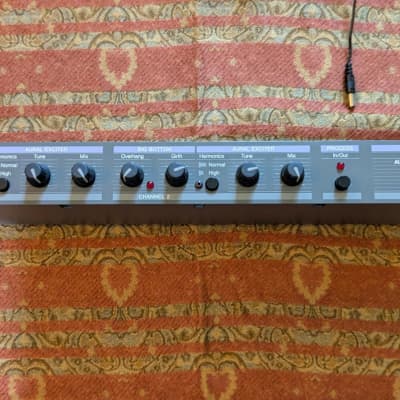

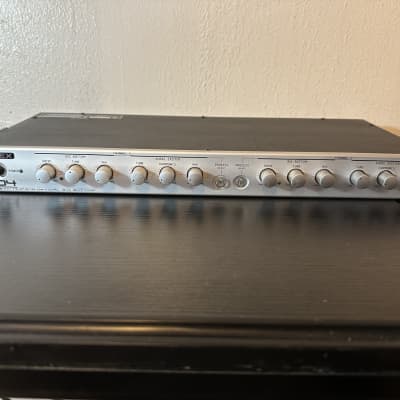

The Exciter Big Bottom by Aphex, also known as the Aural Exciter Type C2 with Big Bottom Model 104, is a professional audio processing unit designed to enhance the audio quality in various applications such as recording, post- production, sound reinforcement, nightclubs, and more. Here are the key features and technical specifications:

Key Features:
- Aural Exciter: Increases presence and clarity, restores natural brightness, provides greater perceived loudness, and improves detail and intelligibility.
- Big Bottom: Enhances the bass frequencies, providing deeper, more resonant bass without overloading the sound system, and tightening and boosting the bass for more articulated and recognizable low frequencies.

Technical Specifications:
- Frequency Response: 10Hz - 38 kHz (± 0.5dB)
- Dynamic Range: 108dB
- Hum and Noise: -85dBu (unweighted 10Hz - 22KHz)
- Crosstalk: 70dB @ max output (10Hz - 22kHz)
- Total Harmonic Distortion (THD): 0.003% (10Hz - 22kHz @ max output)
- Intermodulation Distortion (IMD): 0.004% (10Hz - 22kHz @ max output)
- Power Requirements: External 24-volt, 300mA transformer (supplied with unit)
- Power Consumption (maximum): 6 watts
- Dimensions: 19” W x 1.75” H x 5.75” overall depth, depth behind front panel: 4.5”
- Net Weight: Rack-mounted preamplifier, 3.5lbs. ; wall transformer, 8.8 oz. (USA model)
- Shipping Weight: 5.lbs.

The Exciter Big Bottom by Aphex is a versatile audio processing tool that offers both corrective and creative possibilities, making it an effective solution for enhancing audio quality in various professional audio applications.
