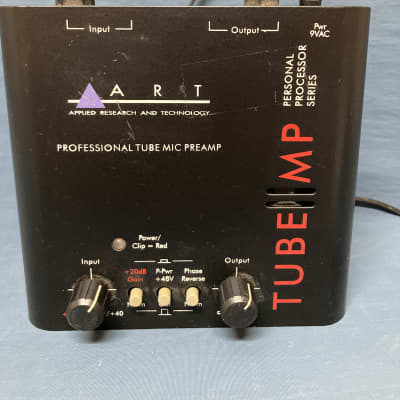

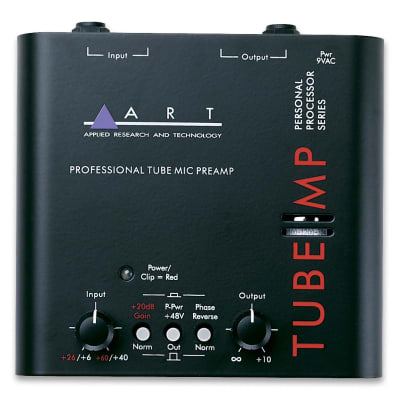

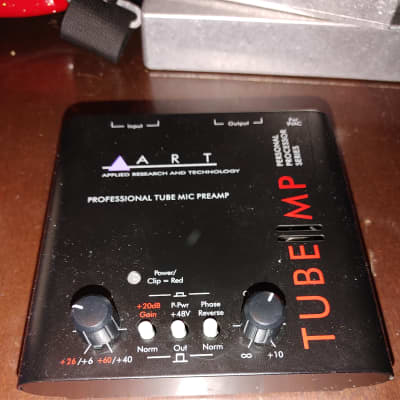

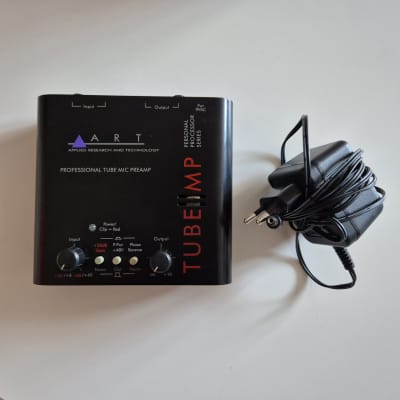

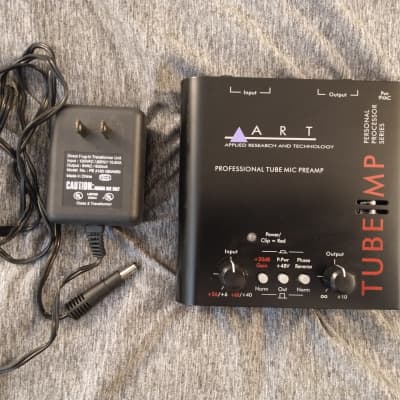

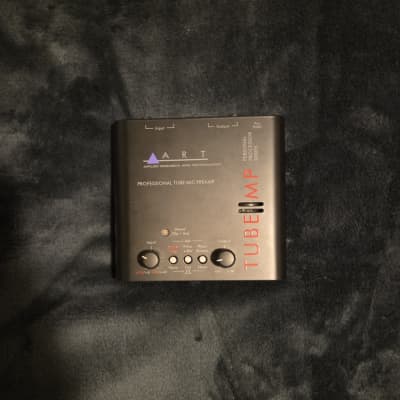

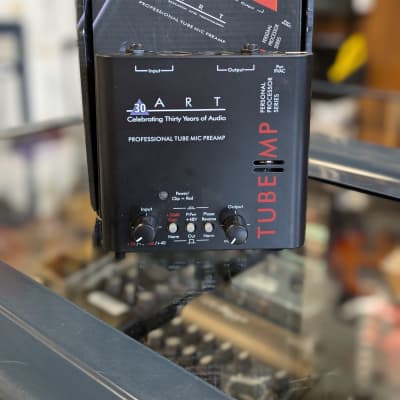

Tube MP

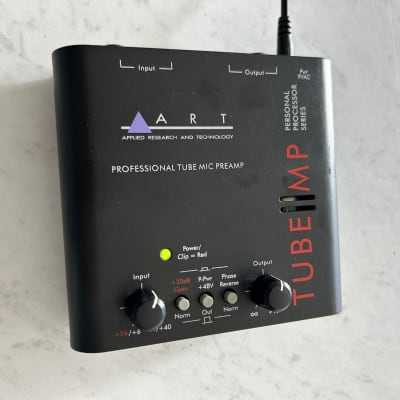

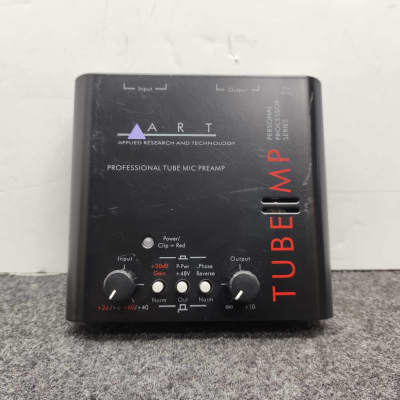

The Tube MP by ART is a versatile tube microphone preamplifier with the following technical specifications and features:

- Dimensions: 5.0”H x 5.5” W x 2.0”H
- Weight: 1.5 lbs
- Input Connections: XLR (balanced), ¼”TS
- Output Connections: XLR (balanced), ¼”TS
- Input Impedance: XLR, ¼” 2K ohms, 840k ohms
- Output Impedance: XLR, ¼” 600 ohms, 300ohms
- Maximum Input Level: XLR +14dBu, ¼” +22dBu
- Maximum Output Level: XLR +28dBu, ¼” +22dBu
- CMRR: >75dB (typical @ 1kHz)
- Frequency Response: 10Hz to 30kHz, +/-0.5dB
- Dynamic Range: >100dB (20-20kHz) typical
- Total Harmonic Distortion (THD): <0.1% (typical)
- Maximum Gain: XLR to XLR 60dB (typical), ¼” to ¼” 44dB (typical), XLR to ¼” 54dB (typical), ¼” to XLR 50dB (typical)
- Equivalent Input Noise (EIN): XLR to XLR -129dBu (A weighted), ¼” to ¼” -105dBu (A weighted)
- Tube Type: 12AX7A, Dual Triode, Hand Selected
- Power Requirements: USA – 9VAC @ .8A (typ.) Export units configured for country of destination

Key Features:
- Built-in analog VU metering
- Built-in OPL (switch selectable)
- Over 60dB of gain
- Hand-selected 12AX7A dual triode tube
- Balanced XLR inputs and outputs
- ¼” High impedance Instrument input and ¼” line level output
- +48V Phantom power (switch selectable)
- Phase Reverse Switch
- Gain (+20dB) Switch
- Input Gain Control
- Output Level Control
- Multifunction, dual-color LED Power/Clip/Limit indicator
- Fully shielded all-steel chassis
- Designed and developed in the USA

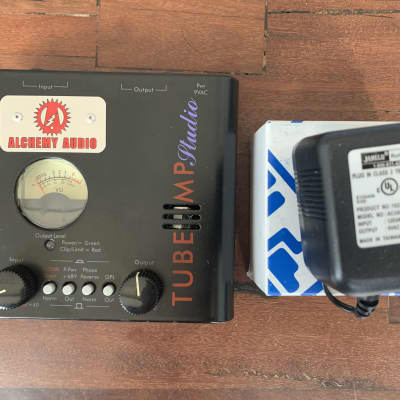

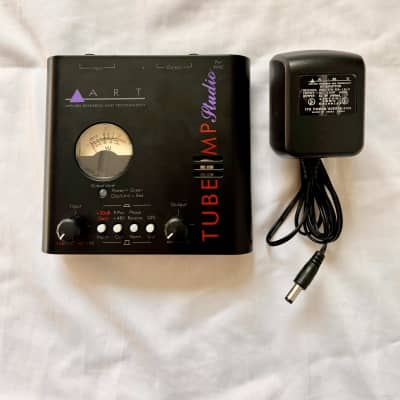

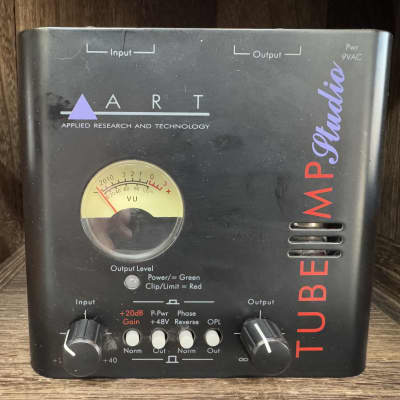

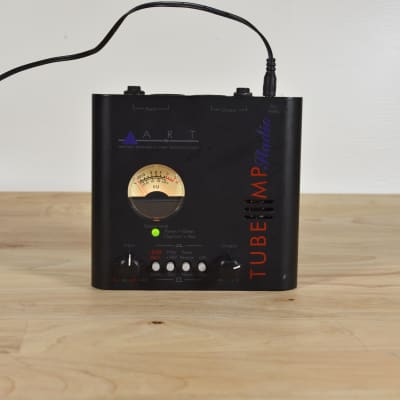

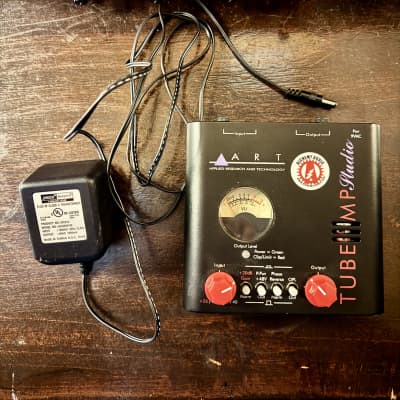

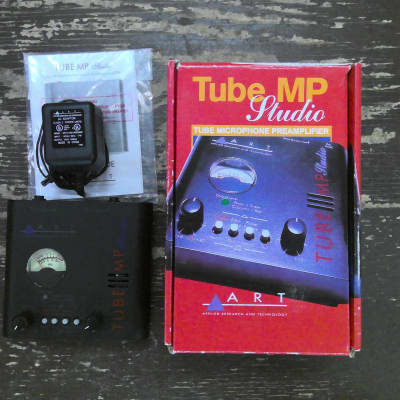

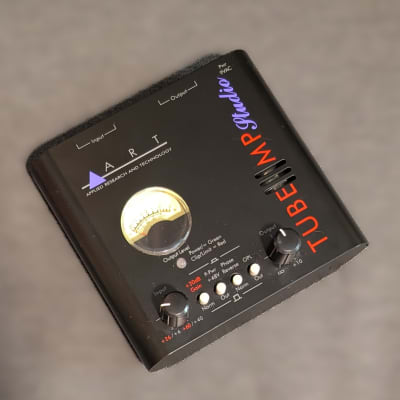

The Tube MP Studio extends its range of applications by adding an output protection limiter (OPL) to precisely control output peaks and analog VU metering to aid in setting and maintaining proper signal levels. It can be used in various applications including recording, project and home studios, and as a direct box with impedance matching and preamplification for instrument or line-level sources.
