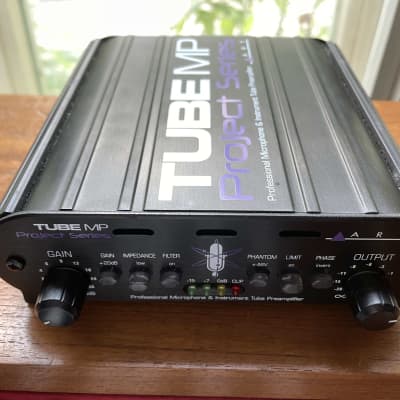

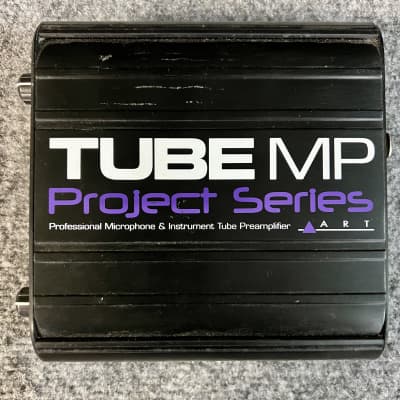

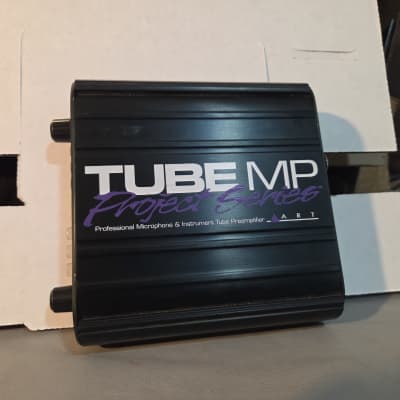

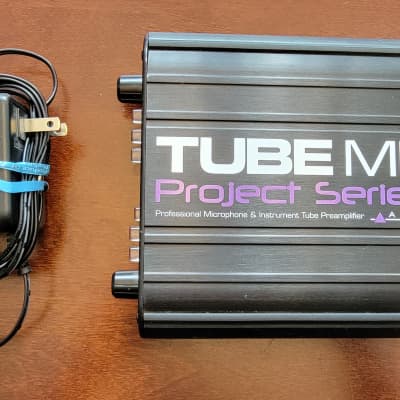

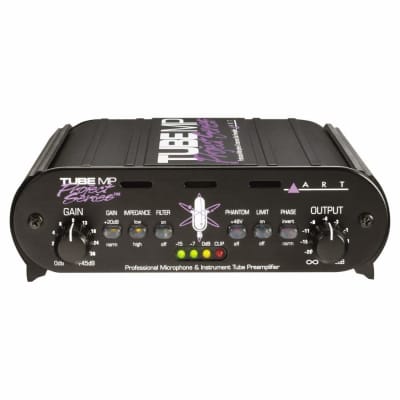

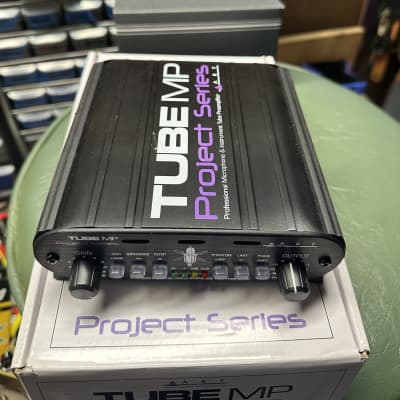

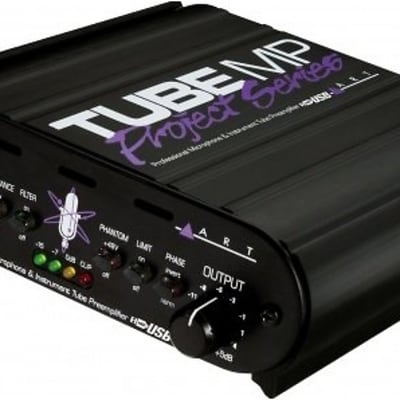

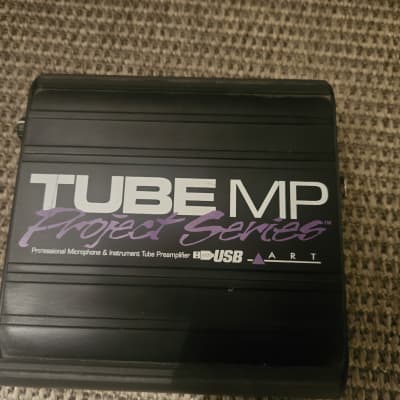

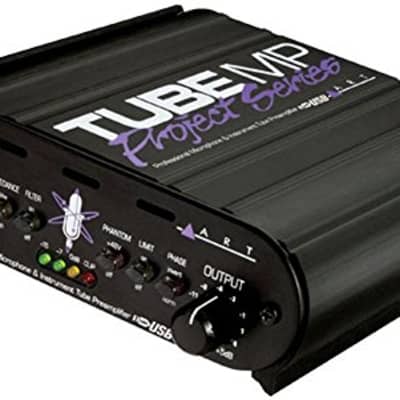

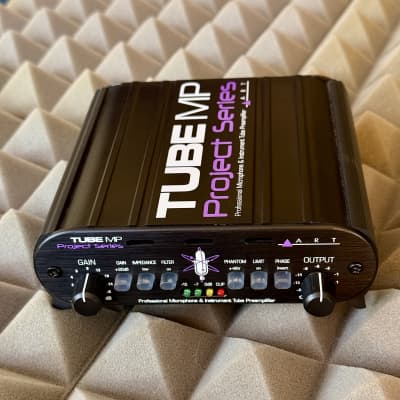

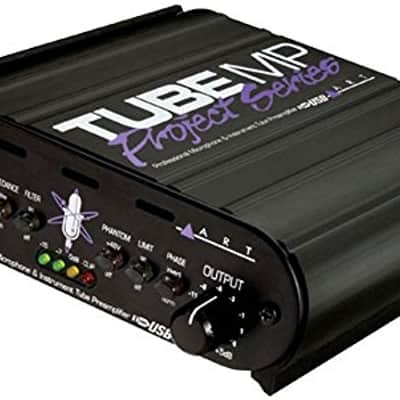

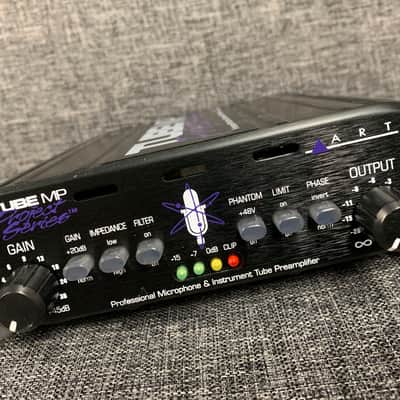

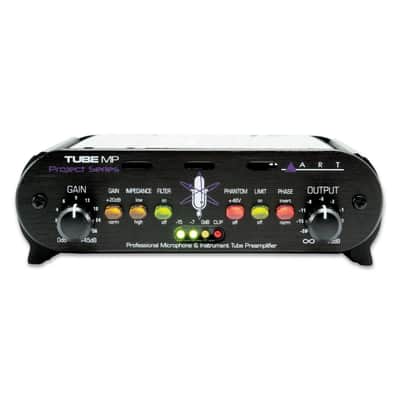

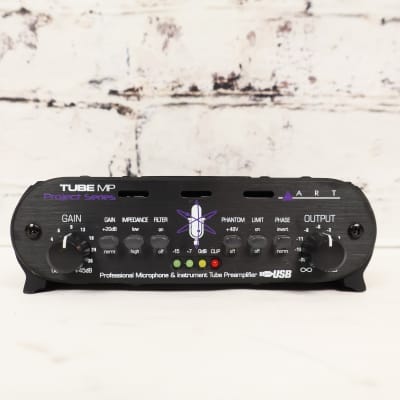

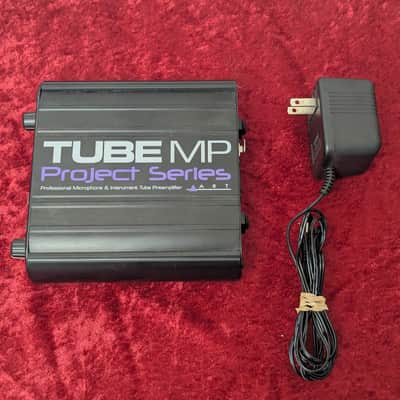

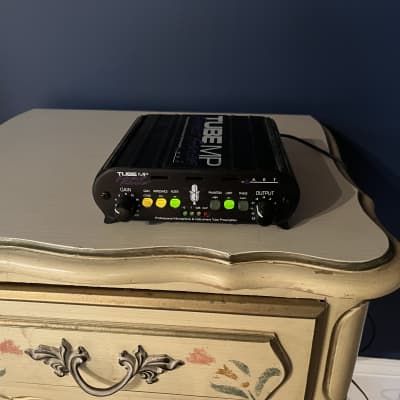

Tube MP Project Series

The ART Tube MP Project Series is a professional quality audio interface designed to connect microphone, instrument, and line level signals to a mixer or other audio input. It features an extremely low noise discrete front end, providing up to 70dB of clean, "musical" gain and high output signal drive capability. The unit also includes a fast FET limiter to prevent overload, switch selectable input impedance, precision LED metering, and a built-in low noise phantom power supply.

Key Features:
- Extremely Low Noise Discrete Front End
- Up to 70dB of Clean, “Musical” Gain
- High Output Signal Drive Capability
- Fast FET Limiter to Prevent Overload
- Switch Selectable Input Impedance
- Precision LED Metering
- Built-in Low Noise Phantom Power Supply
- Compact, Stackable all Aluminum Chassis
- XLR and 1/4″ Inputs and Outputs
- Phase Invert Switch
- High Cut Filter Switch
- Variable Input and Output Controls

Specifications:
- Frequency Response: 10Hz to 40kHz, +/-1 dB (typical)
- Total Harmonic Distortion: <0.05% (typical)
- CMRR: >60dB (typical)
- Dynamic Range: >100dB (20Hz to 20kHz)
- Equivalent Input Noise: <-130dB (XLR to XLR A-weighted)
- Input Impedance: Switchable, 4.7k Ω / 600 Ω (XLR)
- Input/Output Connections: Input: 1/4″ TRS unbalanced (1meg Ω), XLR female balanced. Output: 1/4″ TRS unbalanced (600 Ω), XLR male balanced (<300 Ω)
- Maximum Gain: 70dB (XLR – XLR), +50dB (1/4″ – XLR)
- Input Gain Pad: Switchable, 20dB
- Maximum Input Level: +17dBu (1/4″), +16dBu (XLR)
- Maximum Output Level: +20dBu (1/4″), +26dBu (XLR)
- Low Cut Filter: Switchable, -3dB @ 40Hz
- Output Phase: Switchable, Normal/Invert
- Output Limiter Type: Switchable, Fast & Musical FET Limiter, >20dB limit range
- Phantom Power: Switchable, +48V DC, filtered, current limited
- Signal Metering: Precise LED array with a fast attack and moderate release
- Chassis Type: Aluminum Anodized with integral/stackable rubber sides
- Power Requirements: 10VAC @ 700mA (typ)
- Tube Type: 12AX7A hand selected
- Dimensions: 6.5″D x 5.9″ W x 1.75″ H (165mm x 150mm x 44.5mm)
- Weight: 2.5 lbs (1.14 kg)
