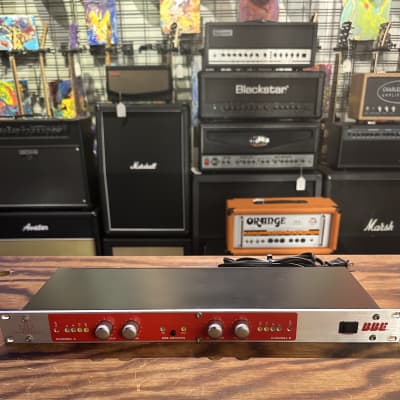

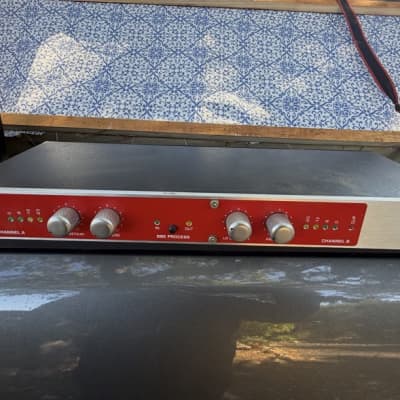

482i Sonic Maximizer

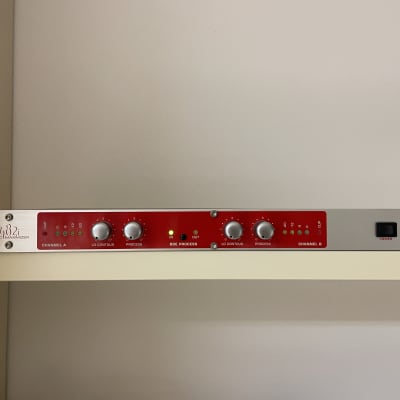

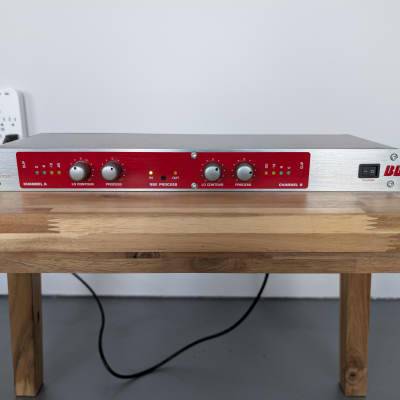

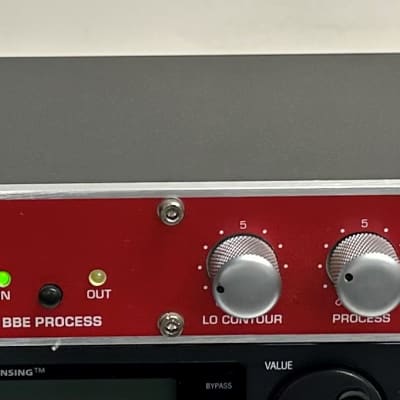

The BBE 482i Sonic Maximizer is a 2-channel signal processor designed for use in -10dBu line level applications. It features dual-mono operation with independent Lo Contour and Process controls for each channel. The Lo Contour control adjusts the level of phase-corrected low frequencies, while the Process control adjusts the level of phase-corrected high frequencies in the program material. The unit also includes a 5-segment LED output level meter, a BBE function button to switch the BBE process on or off, and an LED indicator to show the status of the BBE process.

The technical specifications of the BBE 482i Sonic Maximizer are as follows:
- Frequency response: 10Hz to 50kHz, +/- 0.5dBu, 10dBu input in bypass mode
- THD (Total Harmonic Distortion): Less than 0.025% at -10dBu input, 20-20kHz in process mode
- Maximum output: +18dBu (may vary due to control settings)
- Input impedance: 47k Ohms, unbalanced 1/4” phone jack or RCA jack
- Output impedance: 1k Ohms, unbalanced 1/4” phone jack or RCA jack
- Sensitivity: -45dBu for maximum process
- Maximum Process: +12dBu boost at 5kHz, -10dBu input
- Lo Contour: +12dBu boost at 50Hz, -10dBu input
- Power requirements: 100-120VAC, 50/60Hz, 8 watts for U.S., Canada, and Japan models; 220-240VAC, 50/60Hz, 8 watts for other models
- Dimensions: 19”(W) x 5.5”(D) x 1.7”(H)
- Shipping Weight: 6.5 lbs.

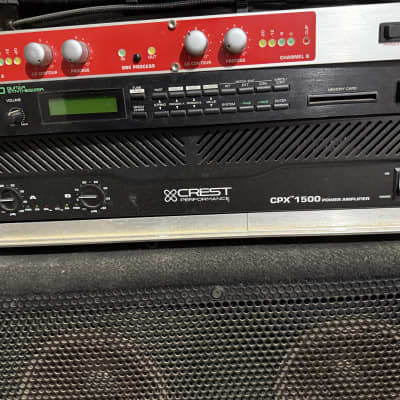

The unit is designed for applications such as home studios, P.A. systems, DJ setups, instrument racks, and recording studios. It is important to note that the BBE Sonic Maximizer is a line level signal processor and should be connected prior to the power amp in any audio system to prevent damage to the unit or subsequent components in the system.

For service and warranty information, it is recommended to contact BBE Sound, Inc. directly or the authorized dealer from whom the unit was purchased.
