Trio+ Band Creator

The DigiTech Trio+ Band Creator and Looper Pedal features the following technical specifications:

- Pedal Type: Band creator/Looper
- Looper: 5-part
- Presets: 12 x Styles, 12 x Genre
- Inputs: 1 x 1/4" (instrument), 1 x 1/4" (FX return)
- Outputs: 3 x 1/4" phone outputs (AMP OUT, MIXER OUT, FX SEND), 1 x 1/8" / 3.5 mm mini output (HEADPHONE OUT)
- Power Requirements: 9V DC external power adapter
- Power Consumption: 7.2W
- Current Draw: 800 mA
- Dimensions (LxHxW): 5.4" x 2.5" x 4.25"
- Weight: 1.46 lb. (622 g)
- Input Impedance: 1 MΩ
- Output Impedance: Amplifier ¼" Unbalanced (Tip-Sleeve); Mixer ¼" Unbalanced (Tip-Sleeve); Headphone 1/8" Stereo

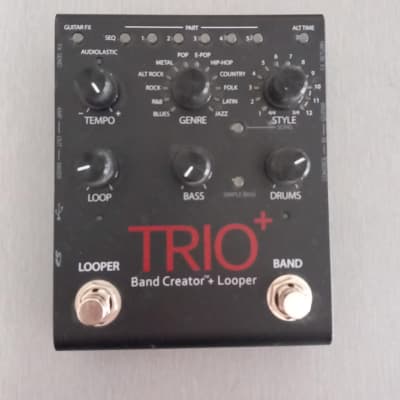

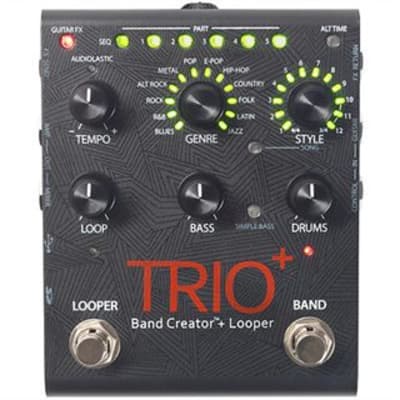

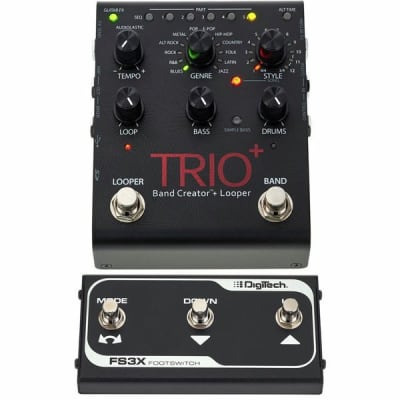

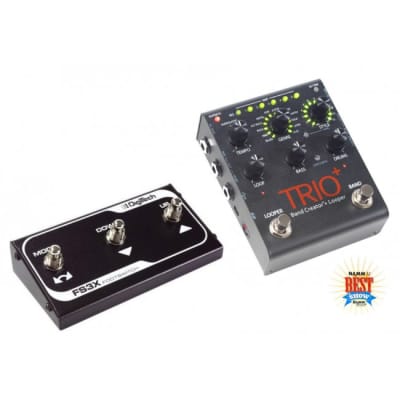

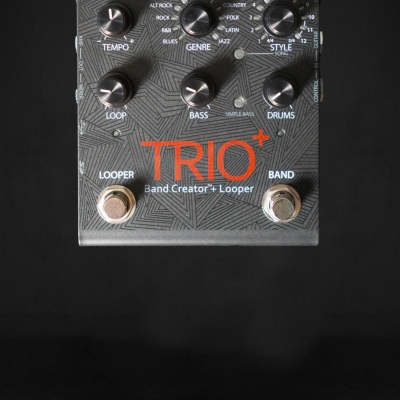

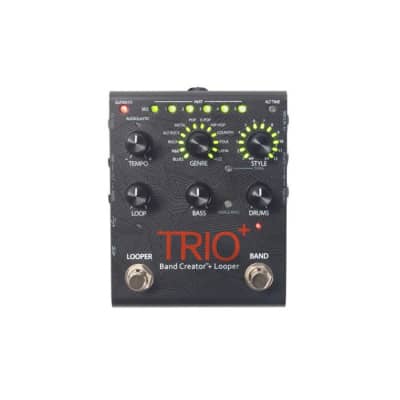

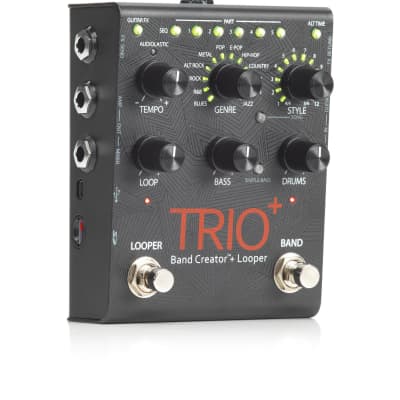

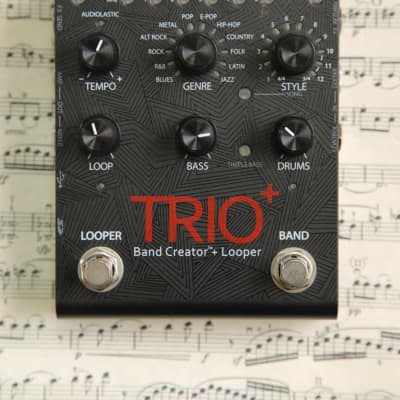

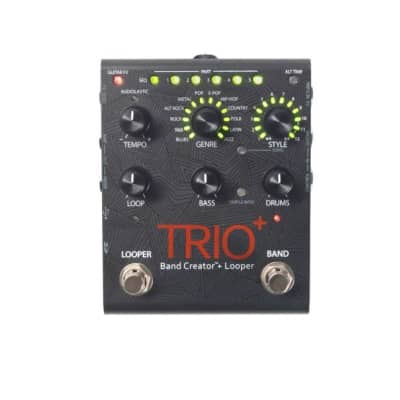

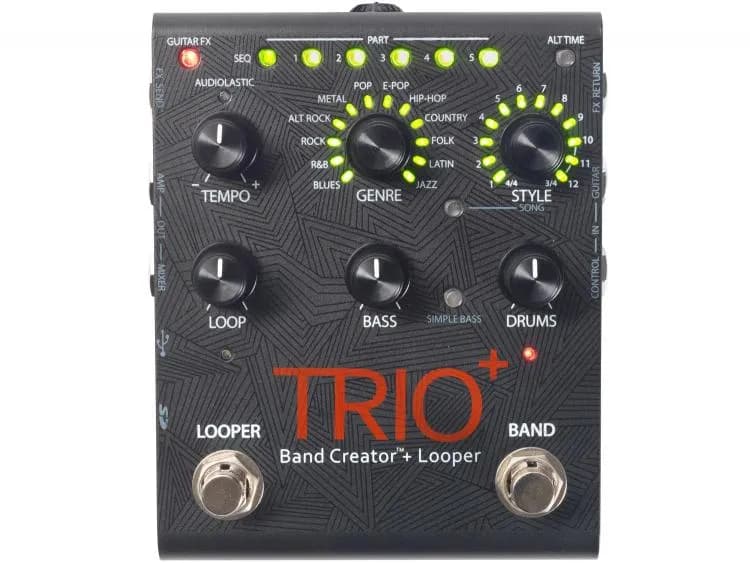

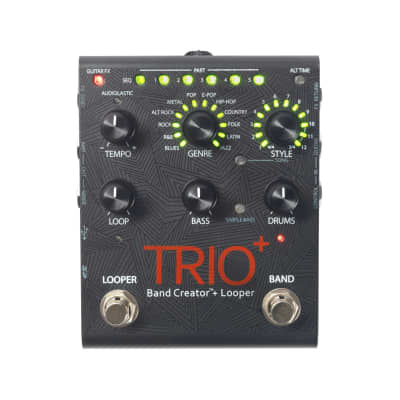

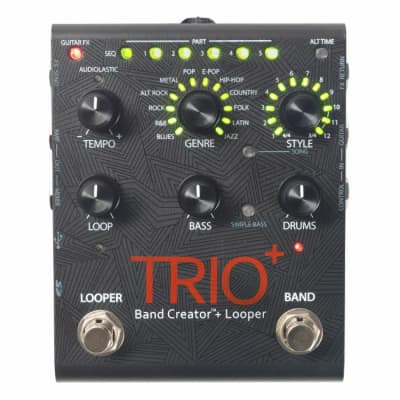

The device offers a compact design with a metal case, two foot switches, and various small knobs and dials. It includes a wide range of connection options, such as mono input for guitars, FX Send and Return, amp output, output for a mixer, jack for an external foot switch, USB port, headphone jack with separate volume control, power port, and SD card slot.

The Band Creator provides twelve musical genres, each divided into twelve different playing styles, and allows for the creation of individual rhythm patterns that match the selected genre. It also features an integrated looper that supports an unlimited number of overdubs and can record loops of up to 230 seconds at 50 BPM.

The device comes with an 8 GB micro SD card for storing up to twelve songs with loops, and it supports micro SDHC cards ranging between 8 and a maximum of 32 gigabytes. Additionally, it offers the option to connect external effects devices via an FX loop.

Overall, the DigiTech Trio+ Band Creator and Looper Pedal is designed to provide a versatile and user-friendly experience for guitarists, offering a combination of rhythm creation, looping capabilities, and expandable memory for song storage.
