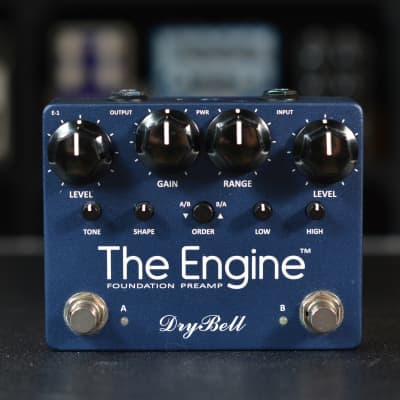

The Engine by DryBell is a highly versatile and fully analog foundation preamp pedal with distinct voicing inspired by 60's British classic amps and sounds. It consists of two fully analog sections, Side A and Side B. Side A captures the sound, feel, and dynamic response of a real 60's British non-master-volume amp, offering cranked tube-like distortion without the need to play at ear- shattering levels. Side B features a powerful Range boost, high headroom, distortion-free clean boost, and versatile low and high EQ for further tone tailoring. The pedal also allows stacking these A&B; sections with the Order switch to yield numerous rich sounds.
The technical specifications of The Engine are as follows:
- Input impedance: 900kΩ/1kHz
- Output impedance: 250Ω/1kHz
- The Engine’s nominal input level: All types of electric guitar pickups
- A Side max output level (9V PSU): 8.5 V pp / 11.7 dBu
- A Side max output level (18V PSU): 10.1 V pp / 13.3 dBu
- A Side max gain (all pots on max): 53dB / (mid-range freq. )
- B Side max output level: 20.5 V pp /19.2 dBu
- B Side max gain (all pots on max): 41.0 dB (mid-range freq. )
- Max bypass level w/o clipping: 14.0 V pp / 16.1 dBu
- External power supply: Adapter 9V DC, (9.0V min - 18.1V max), 100mA minimum
- Power supply connector type: Barrel, Plug 5.5mm/2.1mm, Center Negative
- Nominal current (with guitar): 83mA
- Length (w/o jacks): 95 mm / 3.74 inch
- Width: 120 mm / 4.72 inch
- Height (w/o knobs): 35 mm / 1.38 inch
- Weight: (w/o package): 0.43 kg / 0.95 lb
- Weight: (with package): 0.51 kg / 1.12 lb
- Standard color/finish: Dark blue metallic matte / Powder Coating
The pedal also comes with a 2-year warranty and is designed and manufactured by DryBell Music Electronic Laboratory in Croatia.
Watch the latest video demos and reviews for the The Engine from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

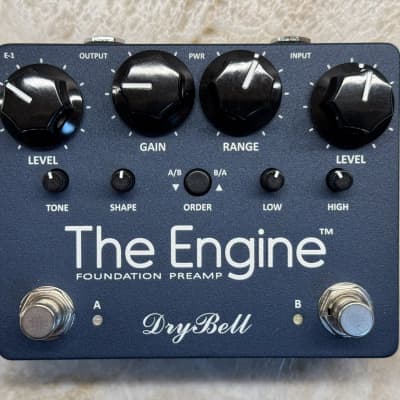

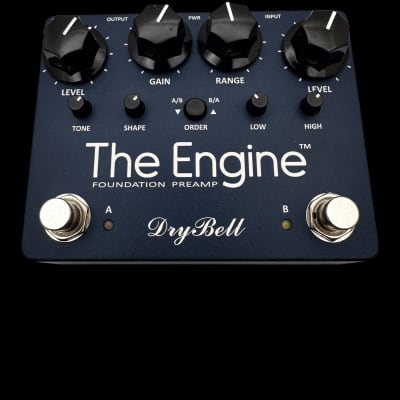

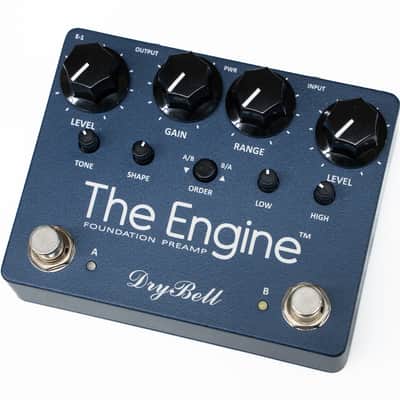

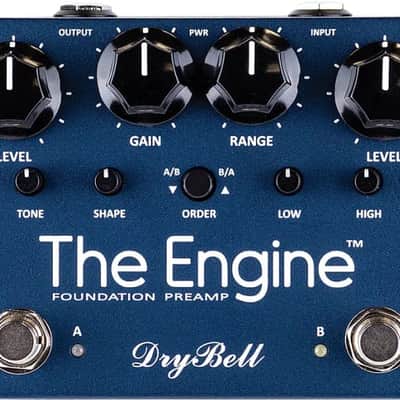

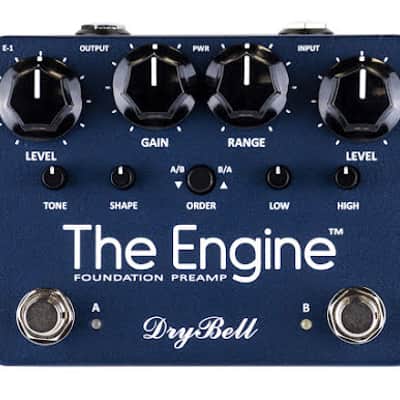

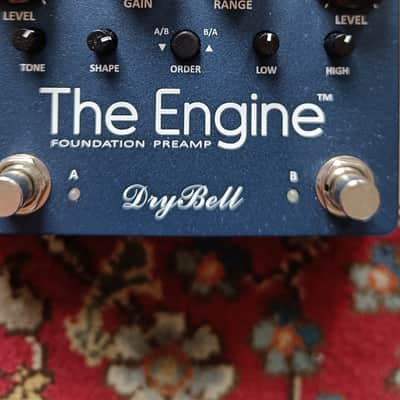

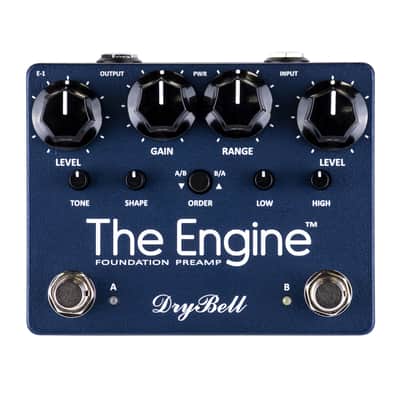

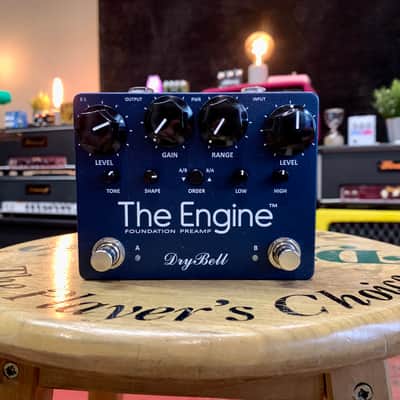

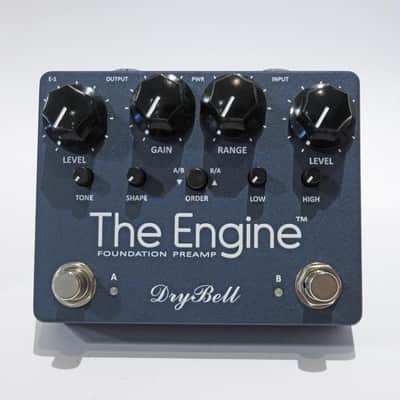

Below are live Reverb listings for the DryBell The Engine from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.
