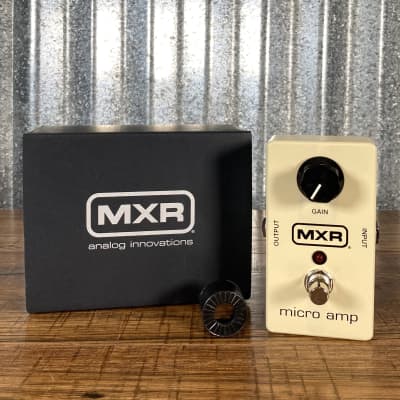

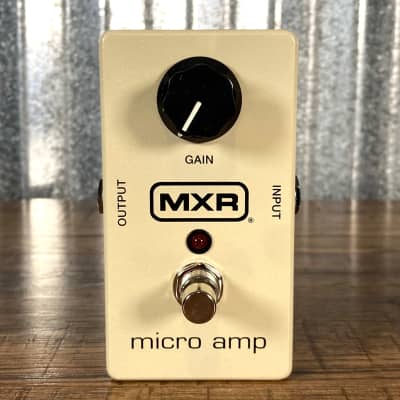

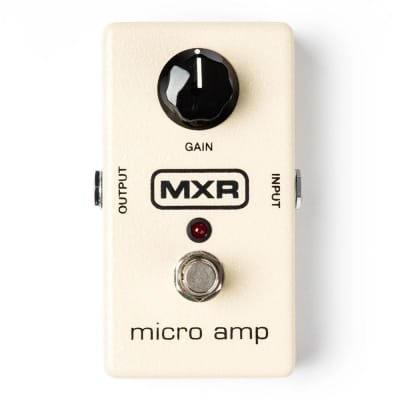

MXR Micro Amp

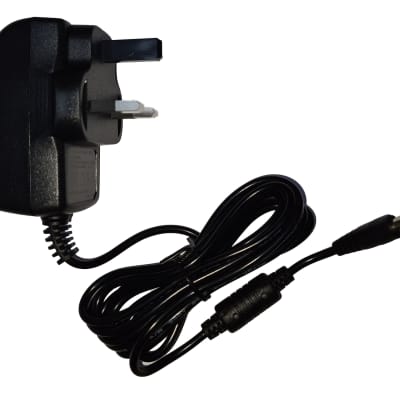

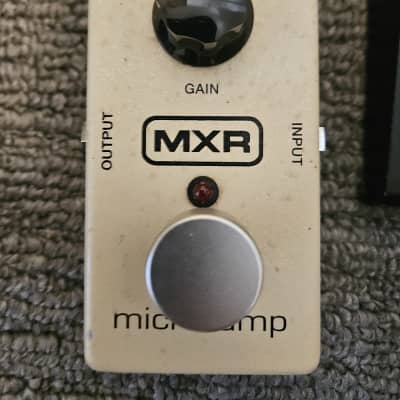

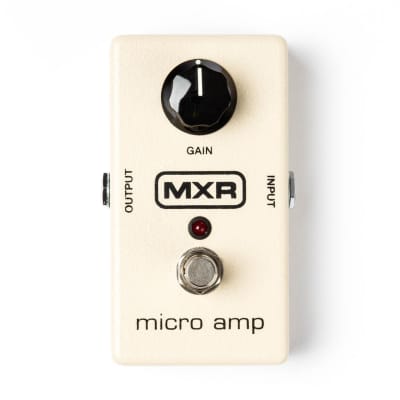

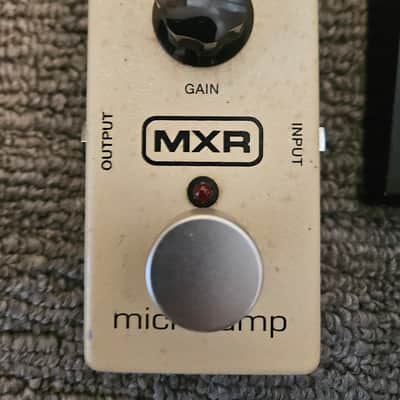

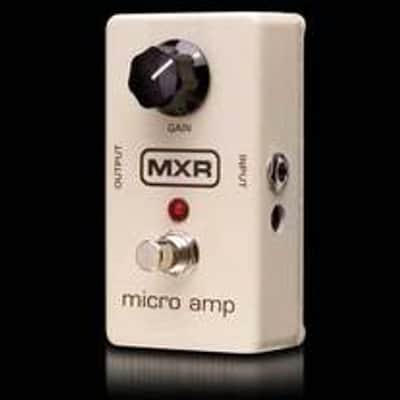

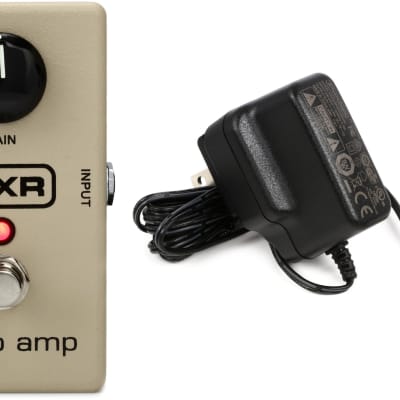

The MXR Micro Amp by Dunlop is a versatile pedal designed to boost your signal with a preset amount of gain, offering up to +26dB. It can be powered by a 9-volt battery, a Dunlop ECB003/ECB003E 9-volt adapter, or the DC Brick™, Iso- Brick™, and Mini Iso-Brick™ power supplies. The pedal features a GAIN knob for controlling the overall amount of signal boost and a footswitch for toggling the effect on/off (indicated by a red LED). The input impedance is 1 MΩ, output impedance is 470 Ω, and the maximum output level is +6 dBV. The MXR Micro Amp also has a hardwire bypass and a current draw of 2.5 mA. The dimensions of the product are 10.94" L x 4.88" W x 3.46" H.
