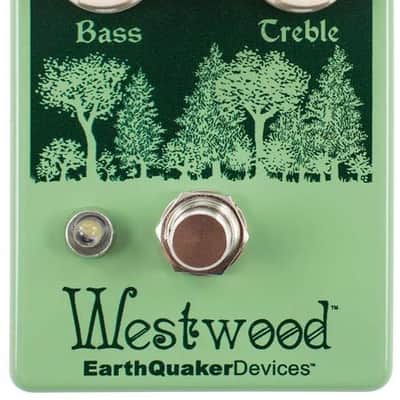

Westwood

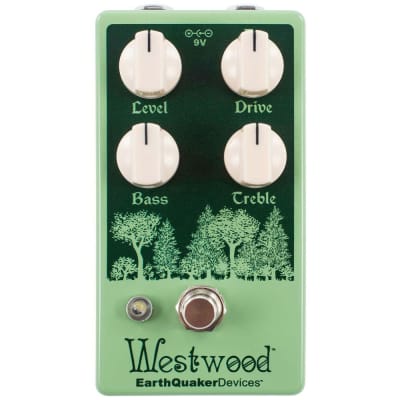

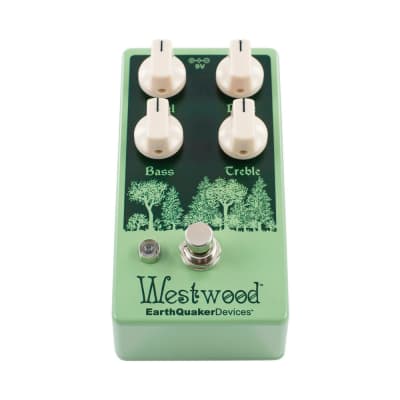

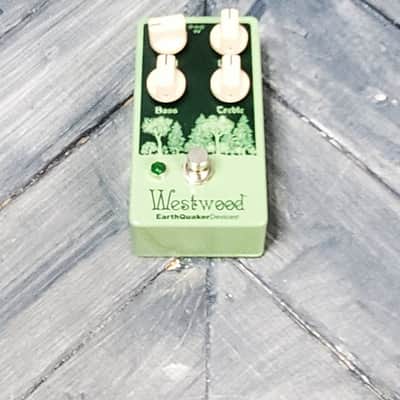

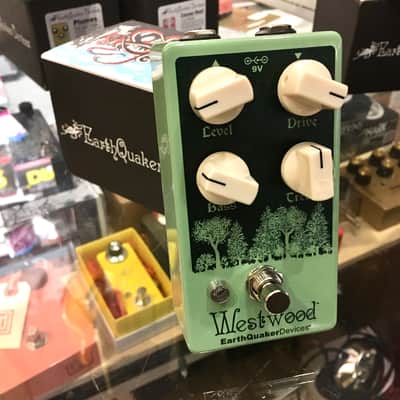

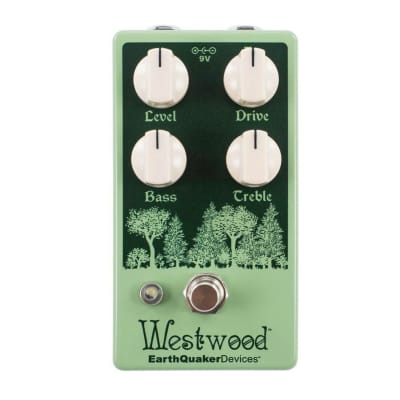

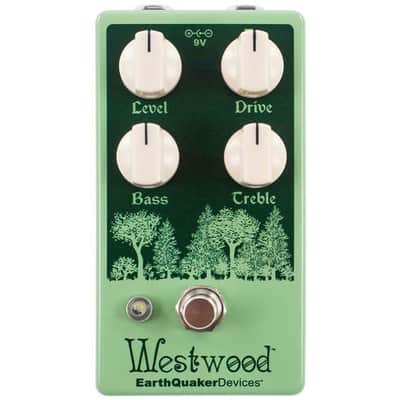

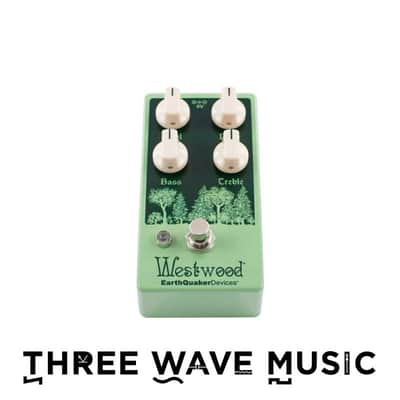

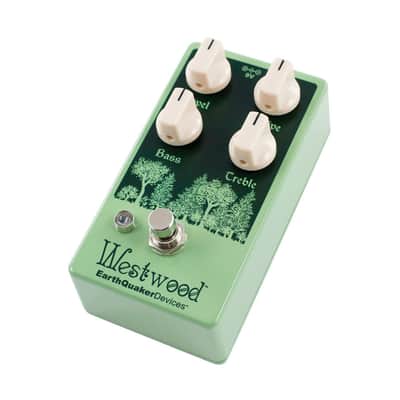

The Westwood by EarthQuaker Devices is a touch-sensitive translucent overdrive manipulator designed to deliver a clean and pure overdrive effect. It features a mild-mannered light-to-medium gain overdrive with active EQ controls, capable of producing cutting, edge-of-breakup rhythm tones and articulate, singing lead tones with even-order harmonics and sustain.

Key Features:
- Level Control: Adjusts the output level, offering a wide range from quiet to loud.
- Drive Control: Adjusts the amount of overdrive, providing a spectrum from clean to dirty tones.
- Bass Control: Selects the amount of low frequencies around 80Hz, allowing for boosting or cutting.
- Treble Control: Selects the amount of high frequencies around 2kHz, enabling boosting or cutting.

Technical Specifications:
- Pedal Type: Overdrive
- Analog/Digital: Analog
- Inputs: 1 x 1/4" (instrument)
- Outputs: 1 x 1/4"
- True Bypass: Yes
- Power Source: 9V DC power supply or 9V battery
- Power Requirements: 15mA current draw
- Input Impedance: 1MΩ
- Output Impedance: <1KΩ
- Dimensions: 4.75" x 2.50" x 2.25" with knobs
- Weight: Approximately 0.28 kg
- Made in: USA

The Westwood can be powered by a 9V battery or a standard 9-volt DC power supply with a 2.1mm negative center barrel. It is equipped with true bypass switching for silent operation and offers a versatile range of overdrive tones with dynamic active EQ controls.
