MDm5

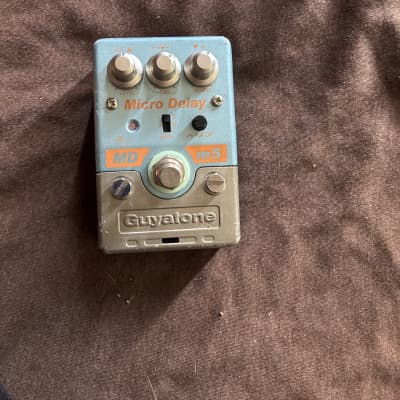

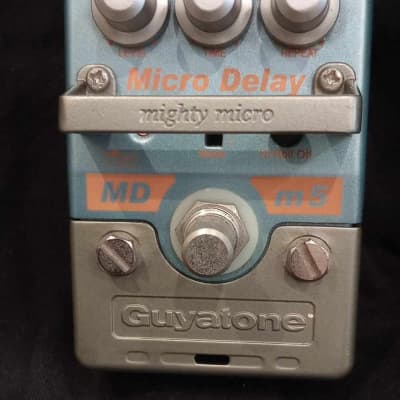

The Guyatone MDm5 Mighty Micro Digital Delay is a compact and versatile guitar effects pedal designed for professional and amateur musicians. The pedal offers a wide range of delay types and tones in an ultra-compact form factor.

Specifications:
- Controls: Level, Time, Repeat, High Roll-Off
- Jacks: Input, Output, DC IN
- Switch: Effect On/Off (True Bypass) / Mode (S/M/L)
- Internal Switch: Input switch (-14 dB/0 dB)
- Indicator: Effect On/Off
- Input Impedance: 470 kOhm
- Output Impedance: Less than 10 kOhm
- Current Consumption: 49 mA (at effect ON)

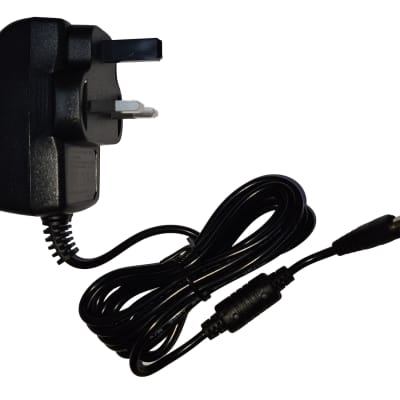

- Power Requirement: DC 9V 006P (6F22)/AC-2 Adaptor
- Dimensions: 2-3/5" W x 2-3/10" H x 3-9/10" D
- Weight: 224 g (without battery) / 7.9 oz.
- Warranty: 3-year Guyatone parts and labor

The MDm5 Micro Delay provides a delay range of 30 - 2600 ms, allowing for a diverse range of delay effects. Despite its small size, the pedal offers intuitive controls for precise adjustments to suit the user's needs.

The pedal's compact dimensions make it suitable for pedalboards with limited space, and its durable construction ensures reliability for both live performances and studio recording sessions.

The MDm5 is designed to deliver high-quality delay effects while maintaining a user-friendly interface, making it suitable for a wide range of musical styles and applications.
