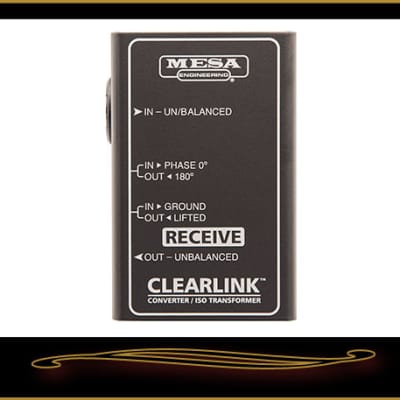

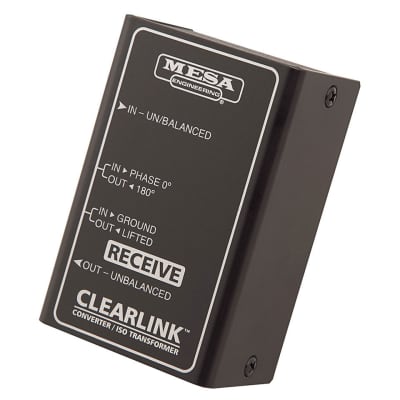

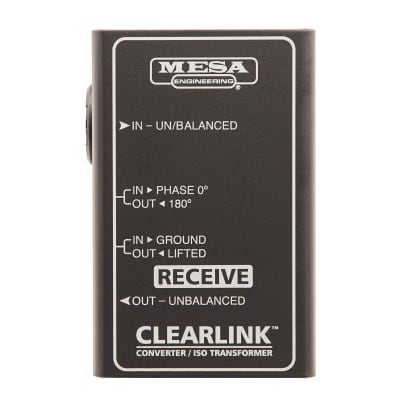

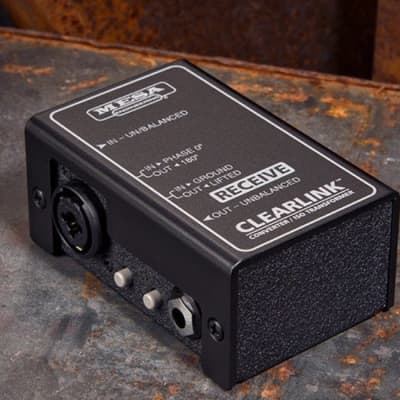

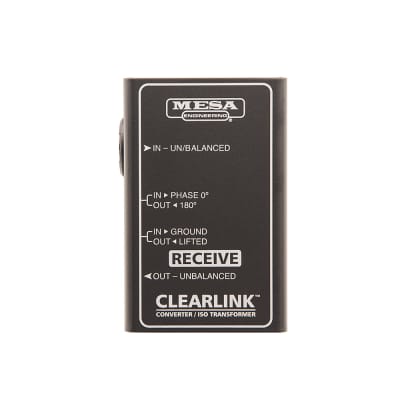

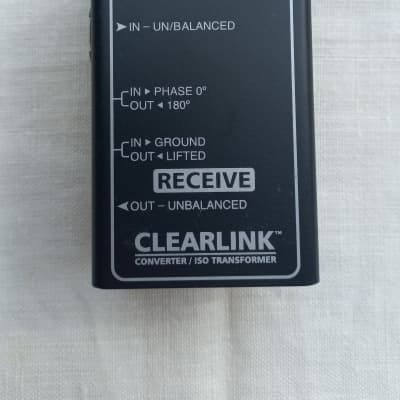

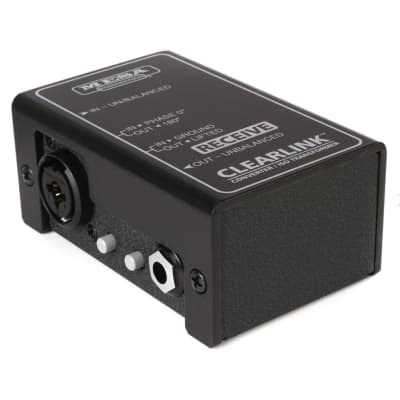

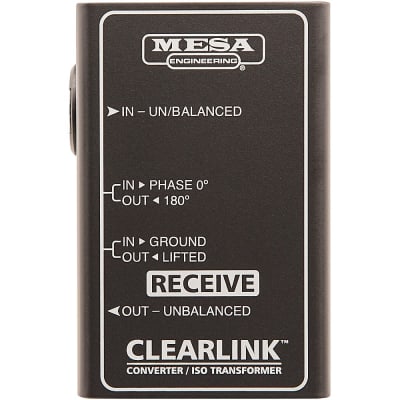

Clearlink (Receive) ISO/Converter

The Mesa Boogie Clearlink Receive ISO/Converter is a high-performance passive audio device designed for a variety of applications. Here are the technical specifications and features:

Features:
- Made in Petaluma, California with high-quality materials
- Passive design
- High-quality Jensen Audio isolation transformer

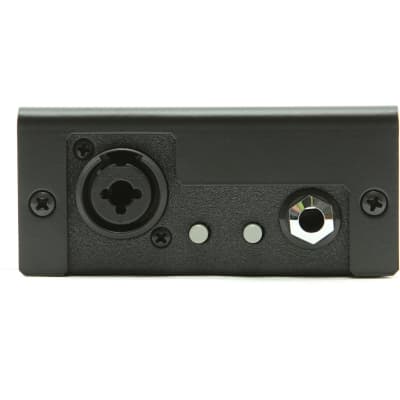

- Combination XLR/¼” input accepts balanced (XLR & TRS ¼”) or unbalanced (TS ¼”) inputs
- High-performance balanced to unbalanced signal converter for drive-lines up to 330ft away
- ¼” unbalanced output is electrically isolated from the input via a specially designed and shielded isolation transformer
- Phase switch: inverts (reverses) the phase of the output signal in relation to the input signal
- Ground switch: safely lifts (isolates) the ground connection between the IN and OUT jacks, eliminating ground loop hum and noise

Specifications:
- Maximum Input Level: +16dBu
- Frequency Response: 20Hz - 20kHz (-1dB)
- Total Harmonic Distortion: 0.002% (1kHz, +4dBu)
- CMRR (Common-Mode Rejection Ratio): 120dB (Bal. 60Hz, +4dBu)
- Weight: 0.512 lbs (232 g)
- Dimensions (W x D x H): 3.86 x 2.48 x 1.71 inch (98 x 63 x 44 mm)

The CLEARLINK RECEIVE ISO/CONVERTER is suitable for a wide range of use cases, including receiving a buffered signal through long cabling from its companion product – the CLEARLINK SEND – at the tail end of a pedal board, converting the transmitted XLR balanced signal back to a ¼” unbalanced signal for feeding an instrument amplifier, combating ground loops, and balanced XLR to ¼” unbalanced conversion. It is also well-suited for studio applications, enabling a very long cable run from the control room to the cutting room, where an amplifier might be mic’d.
