SansAmp GT2 by Tech 21

The SansAmp GT2 by Tech 21 is a versatile tube amp emulator pedal designed to provide a wide range of amp sounds in a single, easy-to-use unit. Here are the technical specifications and details for the SansAmp GT2:

Power Requirements:
- Utilizes a standard 9V alkaline battery (not included). The input jack activates the battery, and to conserve energy, it's recommended to unplug when not in use.

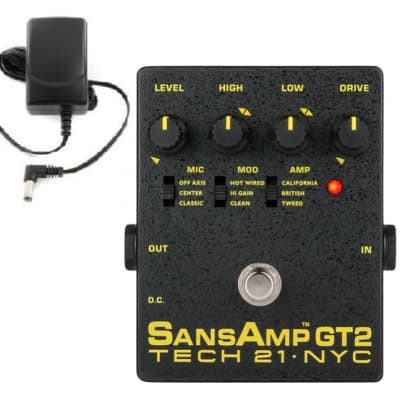

- DC Power Supply Specifications: -9V DC regulated or unregulated, 100mA minimum; -2.1mm female plug, center negative (-). An optional factory power supply is available: Tech 21 Model #DC2.

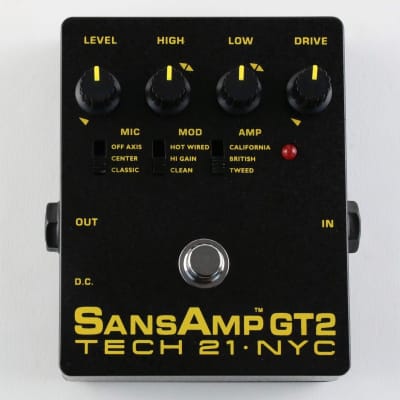

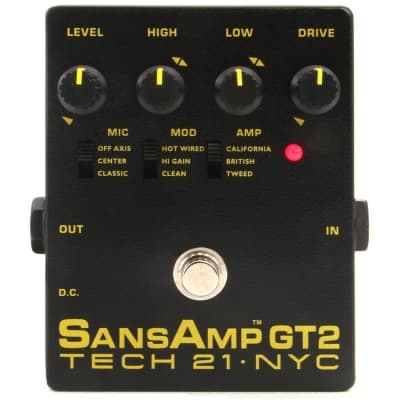

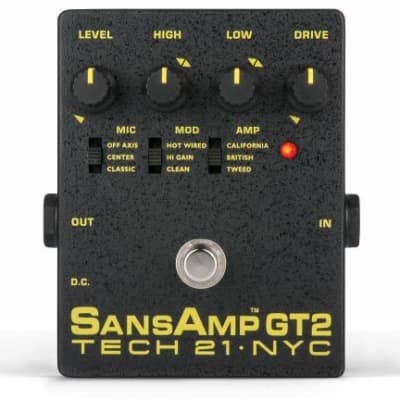

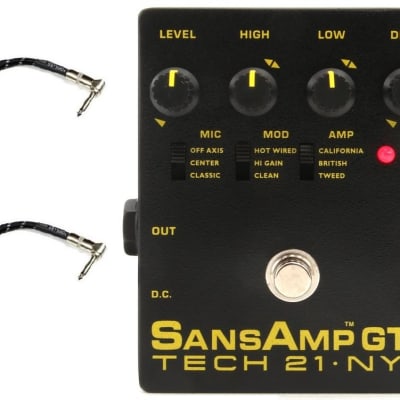

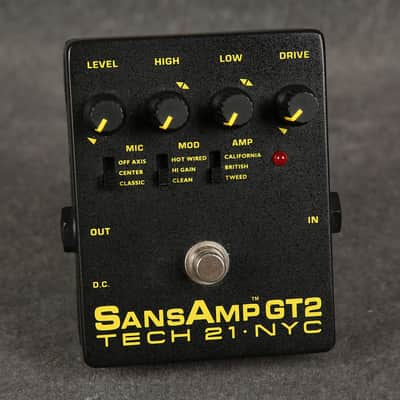

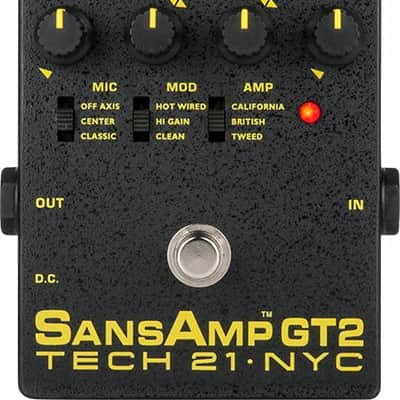

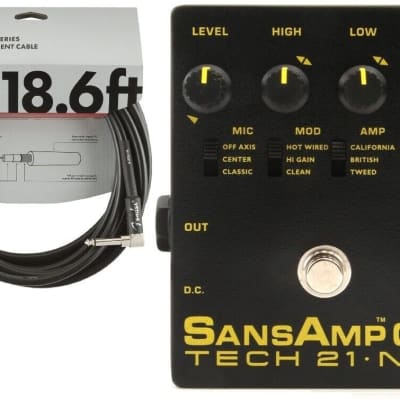

Features:
- Input: 1/4" In, Output: 1/4" Out
- Level Knob, High + Low Knobs, Drive Knob
- Microphone Placement Switch (Off Axis, Center, Classic)
- Mod Switch (Hot Wired, High Gain, Clean)
- Amp Switch (California, British, Tweed)
- 9V Battery Powered
- 9V DC Cable Sold Separately

Functionality:
- The SansAmp GT2 allows users to "architecturally" create their own rig in an instant, providing immediate access to a choice of amplifier, modification, and cabinet/mic placement configurations.
- It offers the ability to mix and match specific sound characteristics in intriguing ways that would otherwise be physically improbable, probably impractical, and definitely not cost-effective.
- On-board, post-EQ is included to give users optimum control, and a custom footswitch actuator provides smooth, silent engagement of the circuitry.
- The buffered bypass ensures no high-frequency signal loss through long cable lengths.

Use Cases:
- With a Guitar Amp: The output of the SansAmp GT2 can be run directly into the input of a power amp, bypassing the tone coloring section of the pre-amp. It can also be run into the front input of an amp, with specific tips provided for setting up the amp.
- To Drive a Power Amp: The output of the SansAmp GT2 can be run into the input of a power amp with an input sensitivity of -10dB to 0dB, using the master volume control of the power amp to adjust stage volume.
- To Record Direct: Users can plug directly into the input of a mixer/recorder and use the on-board sounds of the SansAmp GT2, with recommendations for EQ levels and signal level to input.

Additional Notes:
- The SansAmp GT2 is designed to accommodate instrument level signals to the Input, such as the output of a guitar, the output of other distortion pedals, etc.
- It is recommended to avoid running the speaker output of any amp directly into the SansAmp GT2 to prevent potential damage.

The SansAmp GT2 offers a wide range of features and functionality, making it a valuable tool for guitarists and musicians looking to achieve diverse amp sounds and configurations.
