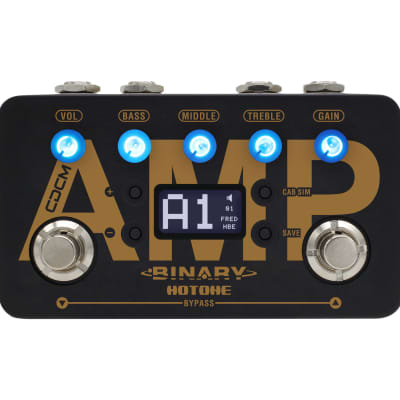

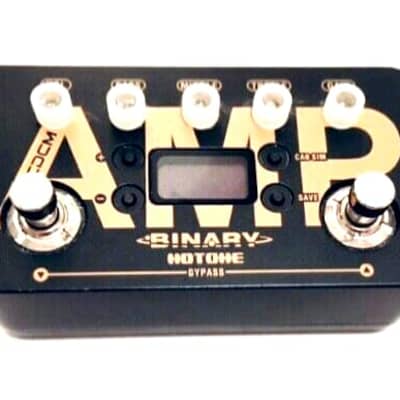

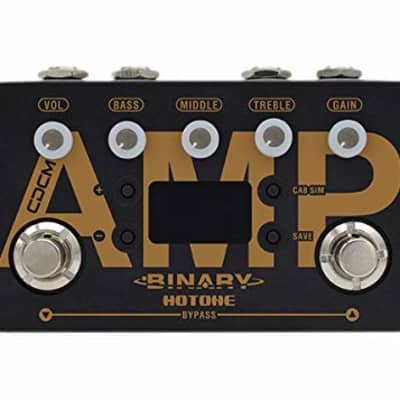

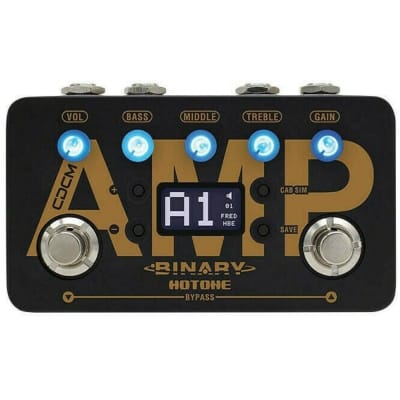

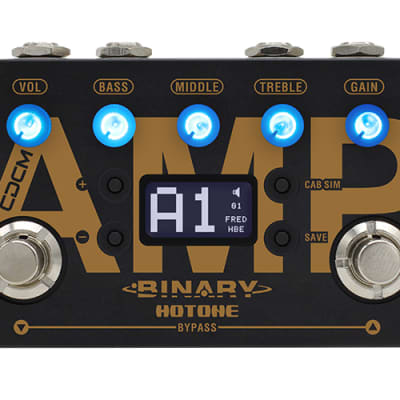

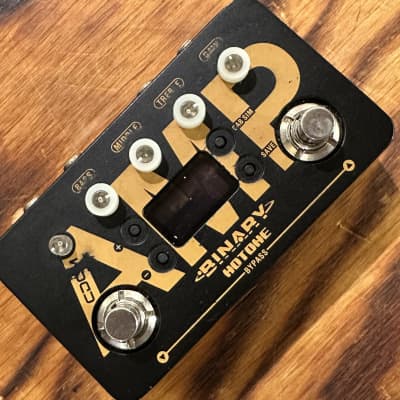

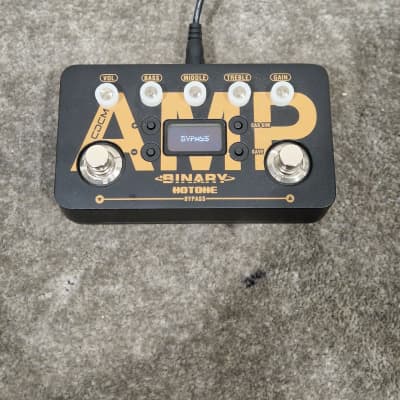

Binary Amp

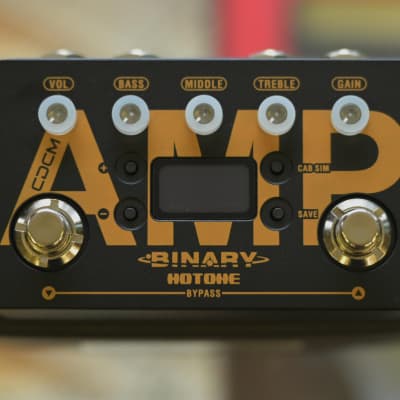

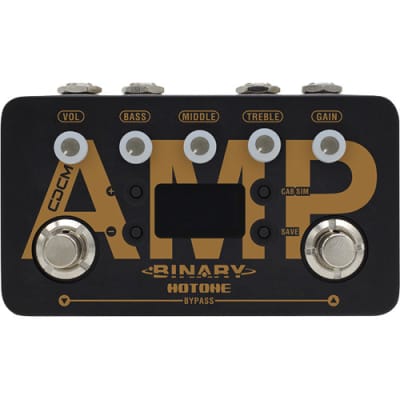

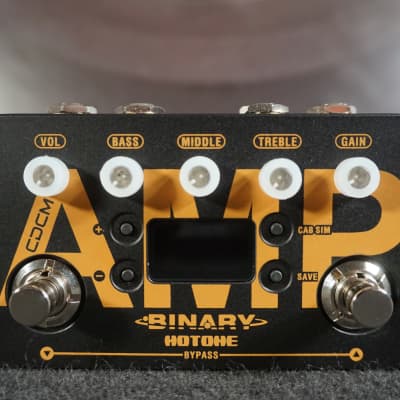

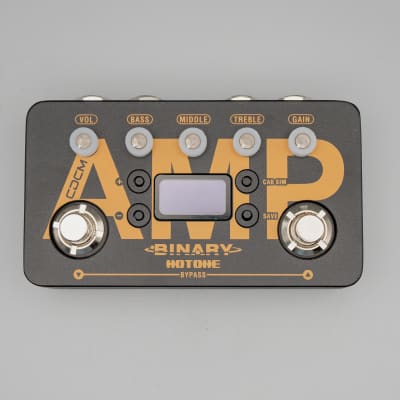

The Hotone Binary Amp is a compact and versatile amp simulator pedal designed for electric guitarists. It features advanced CDCM modeling technology, ensuring a realistic playing experience. The pedal is powered by a dual DSP platform, providing high sound quality with 24-bit A/D/A conversion and up to 110dB S/N ratio.

Key Features:
- Grown out of next-gen XTOMP technology
- Compact, easy-to-use dual footswitch amp simulator pedal
- Advanced CDCM modeling system
- Dual DSP-powered platform
- 24-bit A/D/A conversion, up to 110dB S/N ratio
- 16 CDCM powered legendary amp models with dedicated cab models
- USB jack for firmware upgrading and effect management
- FX Loop jacks for expanded effects
- 10 presets (2 banks x 5 presets)

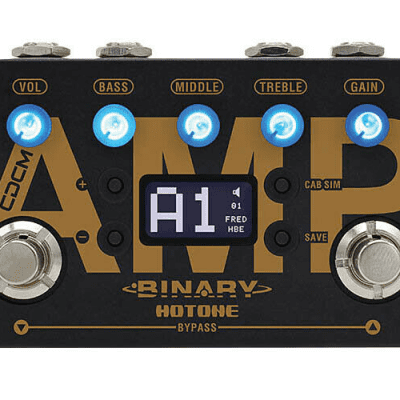

- Built-in OLED screen with clear display
- 5 transparent knobs with LEDs
- 9V DC power supply

Specifications:
- Effects: 16x
- Patches: 10 (2 banks x 5 patches)
- DSP: 24-bit AD/DA conversion, 44.1 kHz
- Frequency Response: 20 Hz to 20 kHz
- S/N Ratio: ≤110 dB
- Input Impedance: 1 MOhm
- Output Impedance: 100 Ohms
- Power Requirement: 9 VDC, center negative
- Current Consumption: 200 mA minimum
- Dimensions: 4.8 x 2.8 x 1.9" / 121.0 x 72.0 x 47.0 mm
- Weight: 12.0 oz / 340.0 g

The Hotone Binary Amp is a powerful and portable tool for guitarists, offering a wide range of amp models and effects in a compact form factor.
