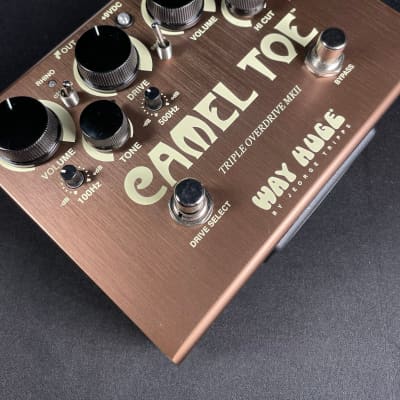

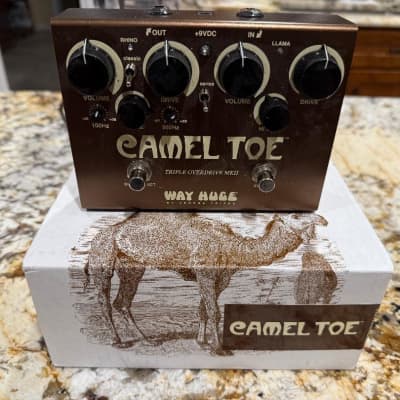

Camel Toe Triple Overdrive MkII

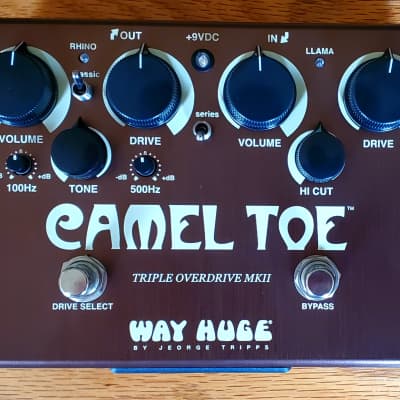

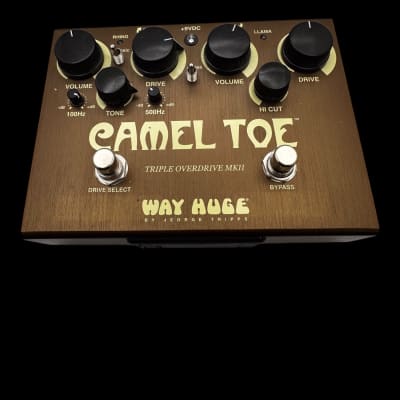

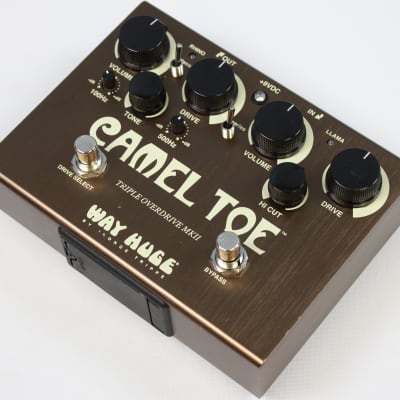

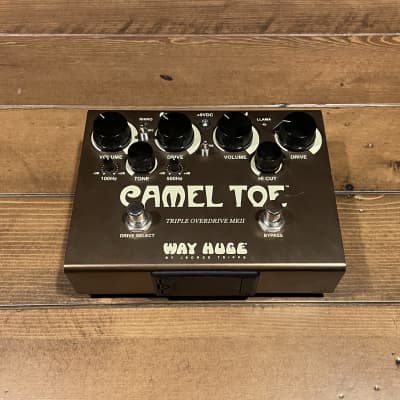

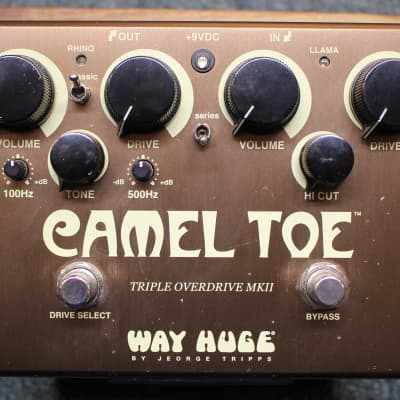

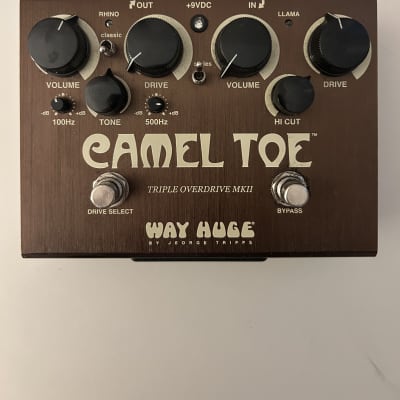

The Camel Toe Triple Overdrive MkII by Way Huge is a versatile pedal that combines the Green Rhino Overdrive and the Red Llama Overdrive into a single unit. The Green Rhino section features controls similar to its Mark IV iteration, while the Red Llama section includes a new Hi-Cut control in addition to Volume and Drive controls. Users can toggle between the two circuits using the Drive Selector footswitch, or engage the Series mode to combine the two overdrive circuits in series.

Here are the technical specifications for the Camel Toe Triple Overdrive MkII:

- Input Impedance:
- Rhino: > 400 kΩ
- Llama: 100 kΩ
- Output Impedance:
- Rhino: < 100 Ω
- Llama: < 10 kΩ
- Noise Floor:
- Rhino: -98 dBV
- Llama: -85 dBV
- Bypass: Relay True Bypass
- Dimensions: 4-25/32" x 3-3/16" x 1-3/4"
- Weight: 13 oz
- Current Draw:
- Engaged: 110 mA
- Bypassed: 22.8 mA
- Power Supply: 9 volts DC

The pedal can be powered by a single 9-volt battery, a 9-volt AC adapter such as the Dunlop ECB003/ECB003EU, or the DC Brick™ and Iso-Brick™ power supplies. The power input is a 5.5mm x 2.1mm jack with the positive voltage on the outer sleeve. The pedal also includes power protection circuitry to prevent damage from AC power supplies.

The Camel Toe Triple Overdrive MkII is designed for electric guitar use and offers a wide range of overdriven tones, making it suitable for various musical styles and applications.
