Pangaea CP-100FX

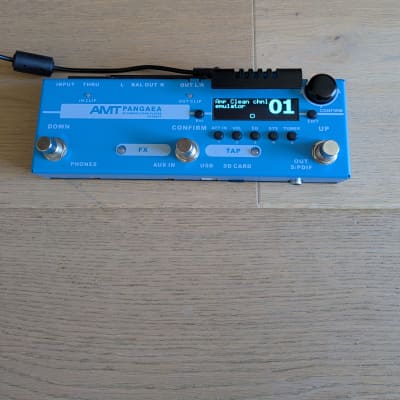

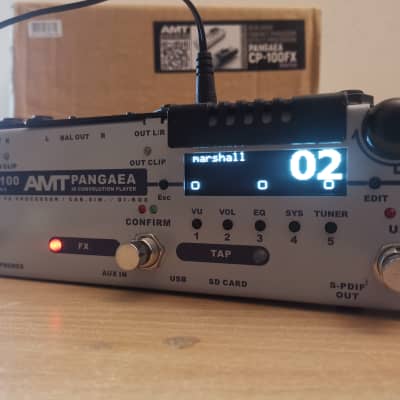

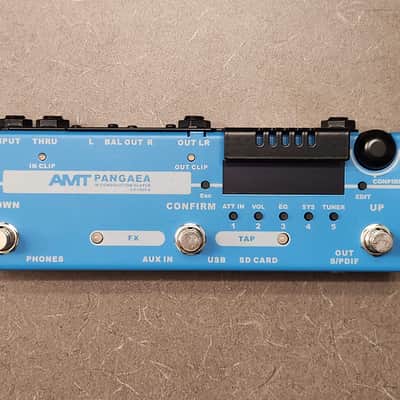

The AMT Electronics Pangaea CP-100FX is a versatile IR Convolution Player and Effect Processor designed for guitarists. Here are the technical specifications and features:

- The device allows for the creation of quality sound emulation of any guitar cabinet by loading appropriate impulse responses (IRs) of guitar cabinets.
- It is possible to store up to 99 presets into the internal memory of the device with different IRs together with a built-in guitar effects processor (or without it).
- The device operates in two main modes with IRs, allowing for the loading of one mono IR or separate loading of two mono IRs with adjustable volume and pan.
- The effects block includes a tuner, resonance filter, noise gate, compressor, preamp simulator, power amp simulator, cabinet simulator (impulse response), parametric EQ, phaser, flanger, chorus, delay, early reflections, and reverb.
- It features a master EQ, bypassing the cabinet simulator, dual cabinet mode, and supports up to 14 effects used simultaneously.
- The device has A/D – D/A converters of 24 bit, a sampling frequency of 48 kHz, and a DSP block ADSP-21489 processor.

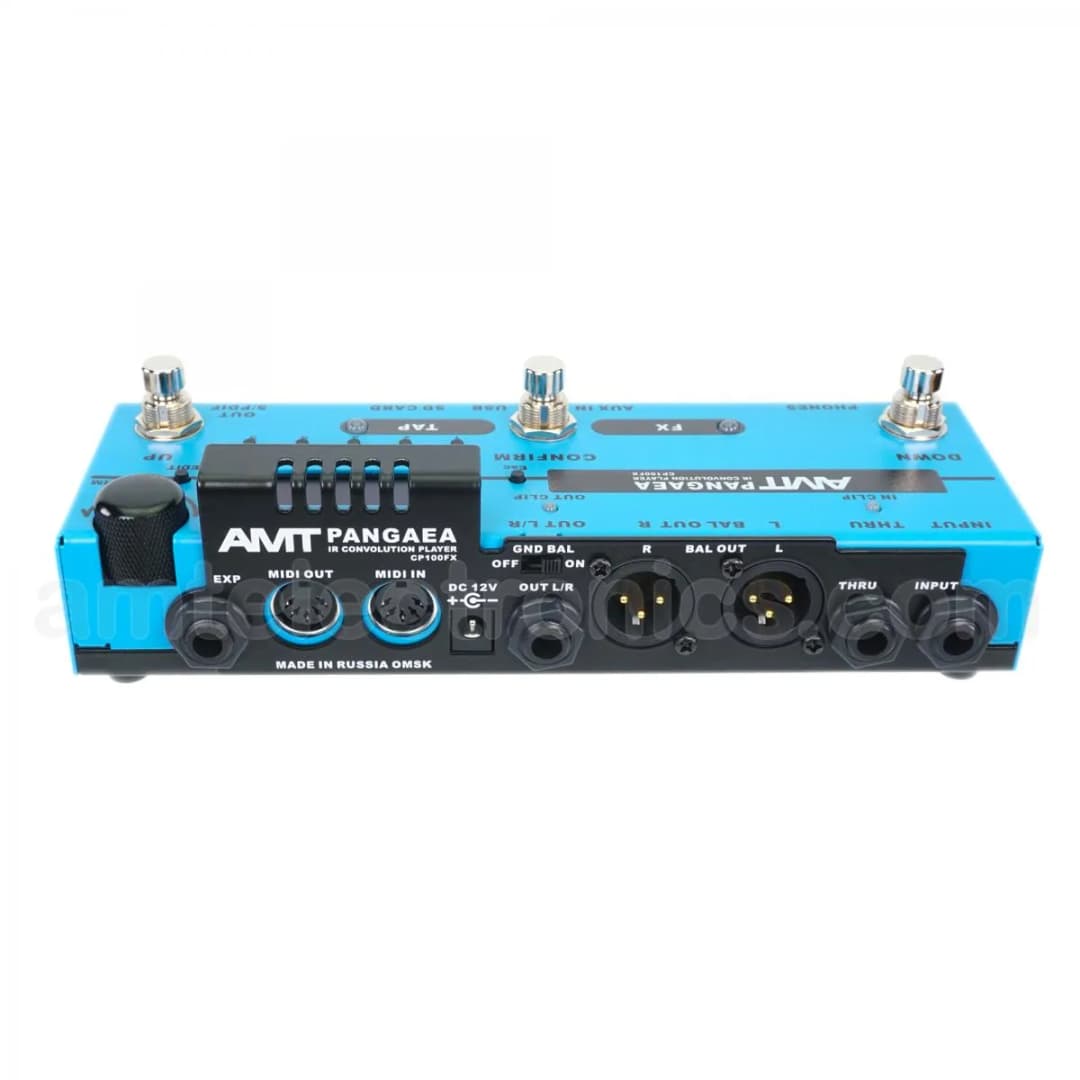

- It includes a MIDI interface, MIDI mapping, global tempo, analog outputs (XLR/TRS), digital output (S/PDIF), and a headphones output.
- The supported IR files are in WAV format, 24-bit / 48 kHz.
- All impulses are loaded from a microSD card, and the device has a built-in file browser for real-time impulse sound listening.
- Each preset has 32 controllers, allowing for the designation of 16 key parameters for real-time control.
- The device has a master volume and a three-band master equalizer, with the option to switch off the master equalizer.
- It comes with a power supply, microSD memory card, USB 2.0 cable, and warranty card.

The AMT Electronics Pangaea CP-100FX is a powerful and flexible tool suitable for both professional touring guitar players and those starting their creative careers.
