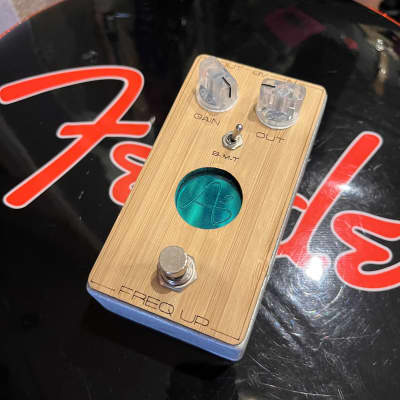

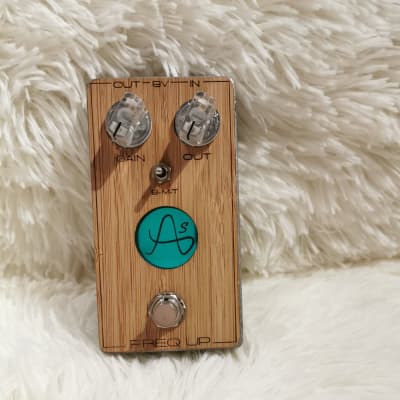

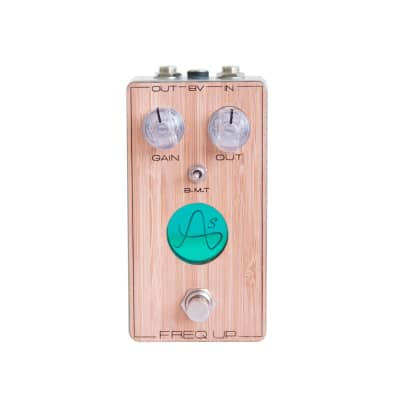

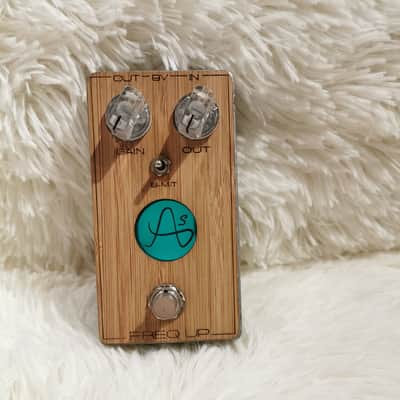

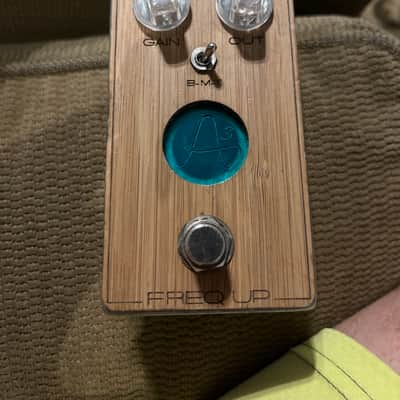

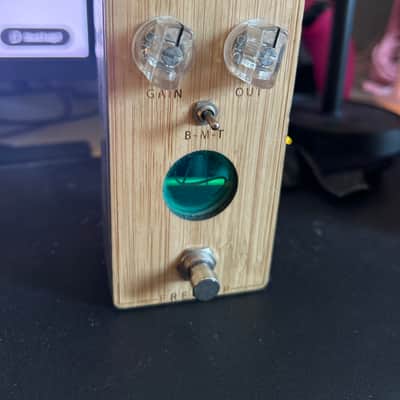

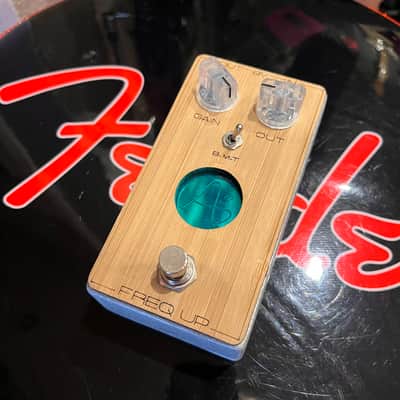

Freq Up

The Freq Up by Anasounds is a boost pedal designed to enhance guitar tones. It offers a combination of a vintage overdrive and a frequency boost, providing control over the frequencies to be added. The pedal features a creamy overdrive reminiscent of vintage tube screamers and a clean boost with adjustable frequencies to stand out in the mix without coloring the sound.

Technical Specifications:
- Power Consumption: 6.7 mA
- Input Impedance: 250 kΩ
- Output Impedance: 11 kΩ
- Supply: 9V DC, 6.7 mA, negative polarity
- OPA Dynamic: 9V
- Switching: Gold true bypass
- Integrated Circuits: OPA Texas Instrument
- Transistors: Bipolars
- Weight: 290 g
- Size (LWH): 1186459 mm
- Design: Bamboo, die-cast aluminum, emerald mirror-plexiglass, logo lighting with intensity controller
- Internal settings for bypassing the overdrive and adjusting the nature of the overdrive
- Dip switches for selecting different modes and configurations

The Freq Up pedal is designed to provide guitarists with a versatile tool for shaping their tone, offering both overdrive and boost capabilities with a focus on frequency control and enhancement.
