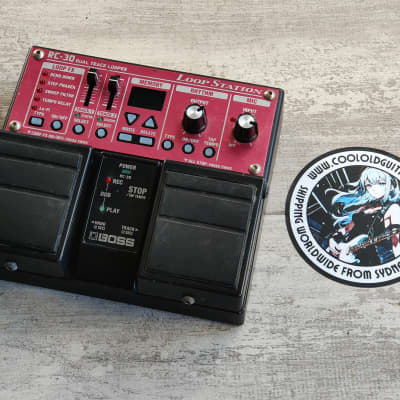

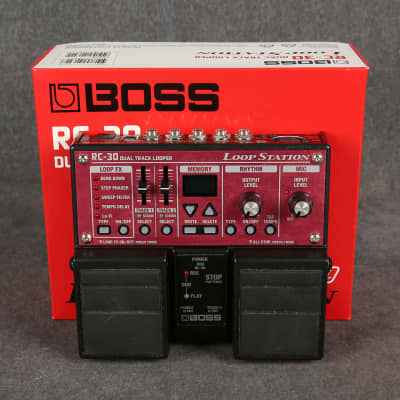

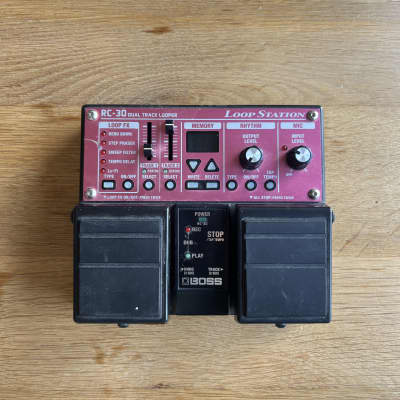

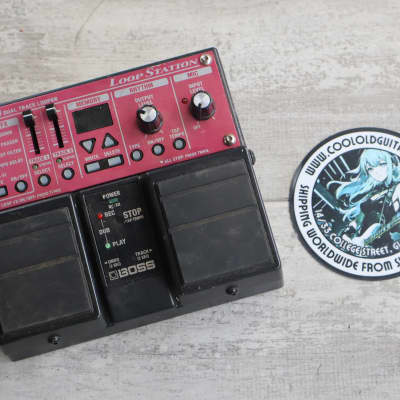

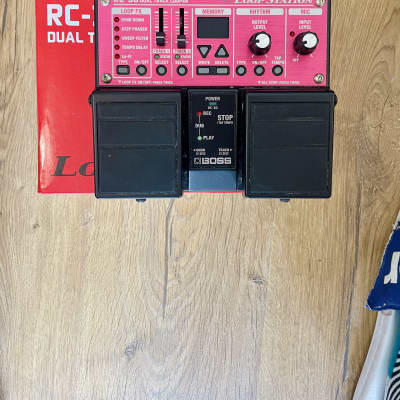

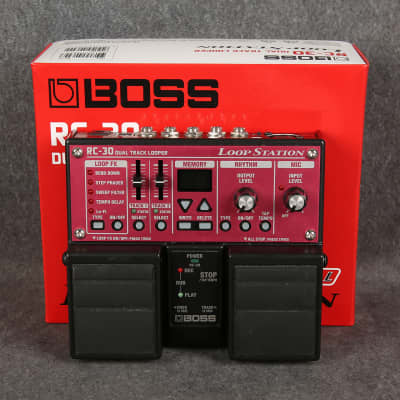

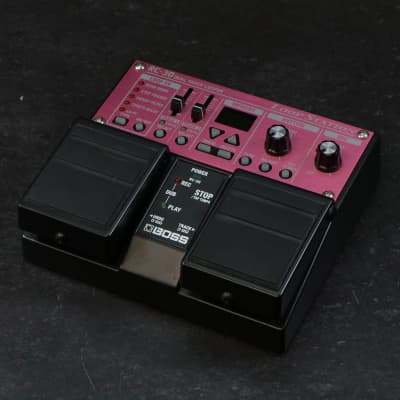

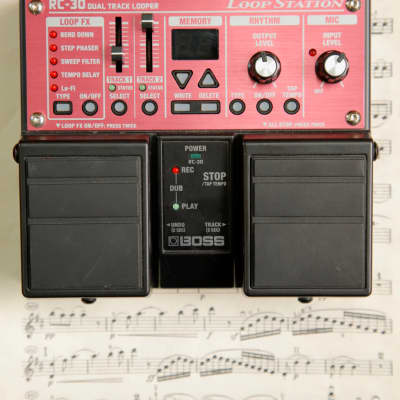

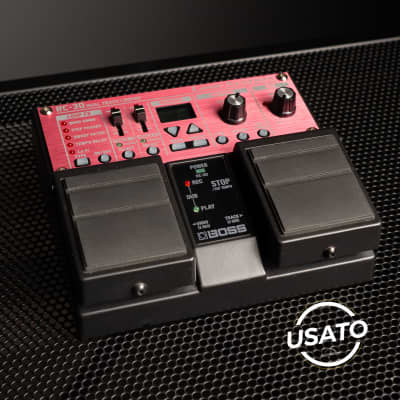

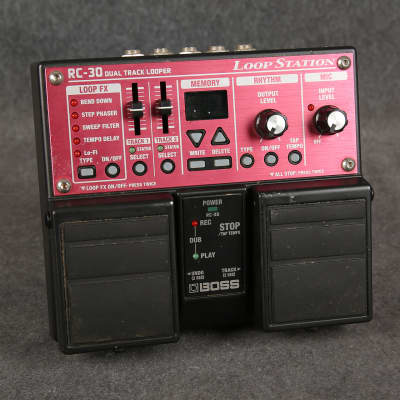

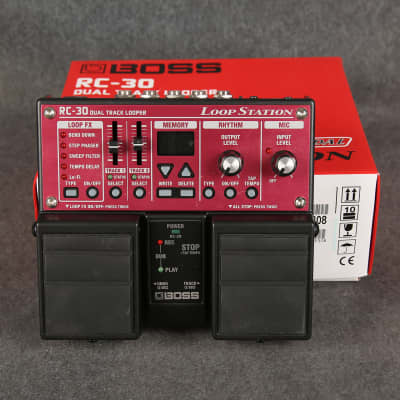

RC-30 Loop Station

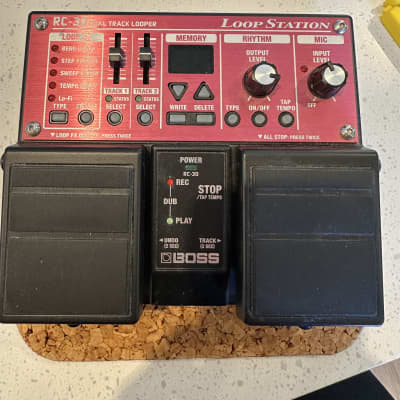

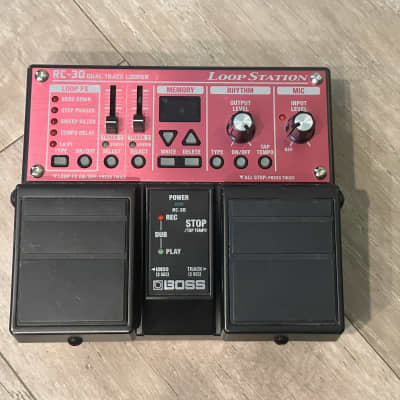

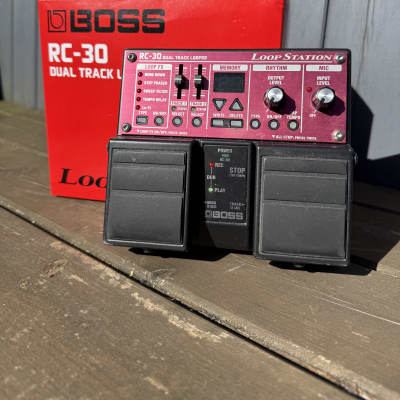

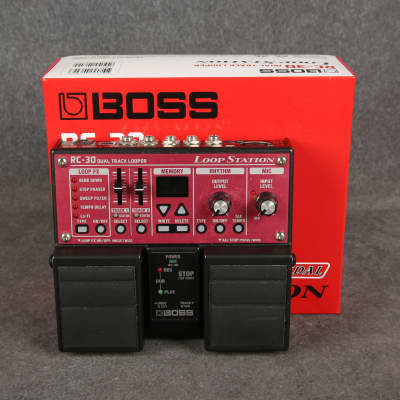

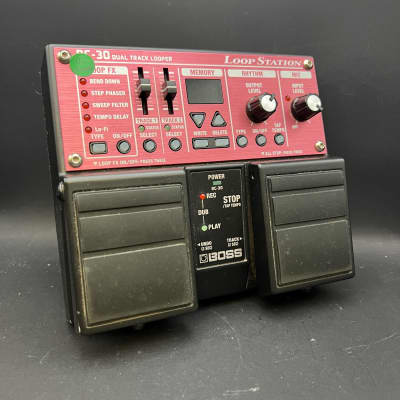

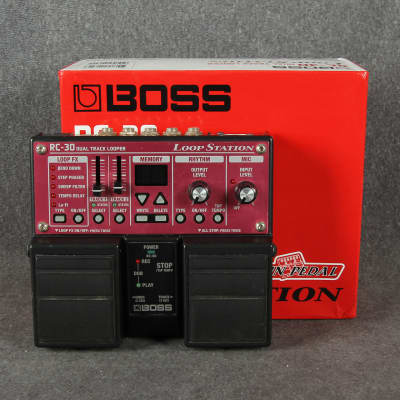

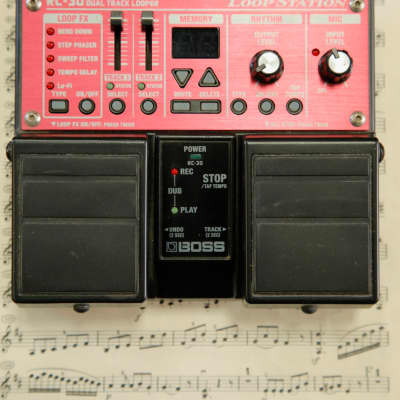

The BOSS RC-30 Loop Station is a Twin Pedal multitrack looper with two synchronized stereo tracks and built-in loop effects. It features massive internal memory with up to three hours of stereo recording time and 99 onboard memory phrases for storing loops. The pedal has multiple inputs, including 1/4" A and B input jacks, a stereo 1/8" mini AUX input jack, and an XLR input jack with phantom power. It also includes a USB 2.0 port for connecting to a PC and importing/exporting WAV audio.

The RC-30 Loop Station allows users to create and stack multi-layered loops with twin stereo tracks, each independently controllable with dedicated volume faders and track-select buttons. It also offers onboard effects such as Bend Down, Step Phaser, Sweep Filter, Tempo Delay, and Lo-Fi. Additionally, vocalists can plug a microphone directly into the XLR microphone input to create vocal sound-effects patterns or record other external stereo audio sources via the AUX IN.

Other features include a rhythm guide with real drums, USB connectivity for backing up phrases to a computer, and the ability to load WAV files from a computer directly into the RC-30. The pedal can be powered by batteries or an optional AC power supply.

Technical specifications include:
- Nominal Input Level: MIC IN: -40 dBu (variable), INST IN: -20 dBu, AUX IN: -10 dBu
- Input Impedance: MIC IN: 4 k ohms, INST IN: 1 M ohm, AUX IN: 22 k ohms
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Maximum Recording Time: Approximately 3 hours
- Number of Tracks: 2
- Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
- Power Supply: DC 9 V: Alkaline (AA, LR6) or Carbon-zinc battery (AA, R6) x 6, AC Adaptor (sold separately)
- Size and Weight: Width 173 mm, Depth 158 mm, Height 57 mm, Weight 1.2 kg (2 lbs. 11 oz.)
